W2PSA0800 (800 W AC Power Module)
Overview
Table 1 Basic information about the W2PSA0800
Item | Details |
Description | 800W AC Power Module |
Part Number | 02130979 |
Model | W2PSA0800 |
Appearance

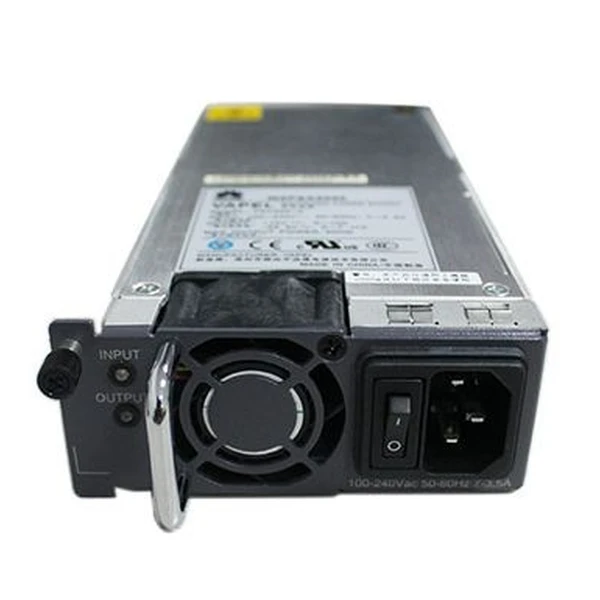

Figure 1 Appearance of the W2PSA0800
Version Mapping
Table 2 Mappings between W2PSA0800 and product models
Product | Product Model | First Supported Version |
S7700 | S7703 | V100R003C01 |
S7700 | S7703 PoE | V200R013C00 |
S7700 | S7706 | V100R003C01 |
S7700 | S7706 PoE | V200R013C00 |
S7700 | S7712 | V100R003C01 |
Panel
Figure 2 Panel of the W2PSA0800
1. AC power socket | 2. Power switch NOTE: · ON: The power module is supplying power. · OFF: The power module is not supplying power. | 3. FAULT indicator |
4. ALM indicator | 5. RUN indicator | 6. Ejector lever NOTE: Raise the ejector lever to release the power module from the slot, and lower the ejector lever to lock the power module in the slot. |
7. Loose-proof pinch | - | - |
Technical Specifications
Table 3 Technical specifications of the W2PSA0800
Item | Specification |
Dimensions without packaging (H x W x D) [mm(in.)] | 130 mm x 41 mm x 393 mm (5.1 in. x 1.6 in. x 15.5 in.) |
Weight without packaging [kg(lb)] | < 2.5 kg |
Number of inputs | 1 |
Rated input voltage [V] | 220 V AC/110 V AC; 50/60 Hz |
Input voltage range [V] | 90 V AC to 290 V AC; 47 Hz to 63 Hz |
Maximum input current [A] | 5 A |
Rated output voltage [V] | 53.5 V DC |
Rated output current [A] | 15 A (220 V AC input)/7.5 A (110 V AC input) |
Rated output power [W] | 800 W (220 V AC input)/400 W (110 V AC input) |
Power dissipation Mode | Heat dissipation with fan |
Hot swapping | Supported |
