PAC150S12-R (AC PSU, PAC150S12-R, 150W AC Power Module)
Overview
Table 1 Basic information about the PAC150S12-R
Item | Details |
Description | AC PSU, PAC150S12-R, 150W AC Power Module |
Part Number | 02312DUY |
Model | PAC150S12-R |
Remarks | The device has 1:1 power module redundancy. You can hot-swap a 150 W power module without interrupting device operation. |
Appearance

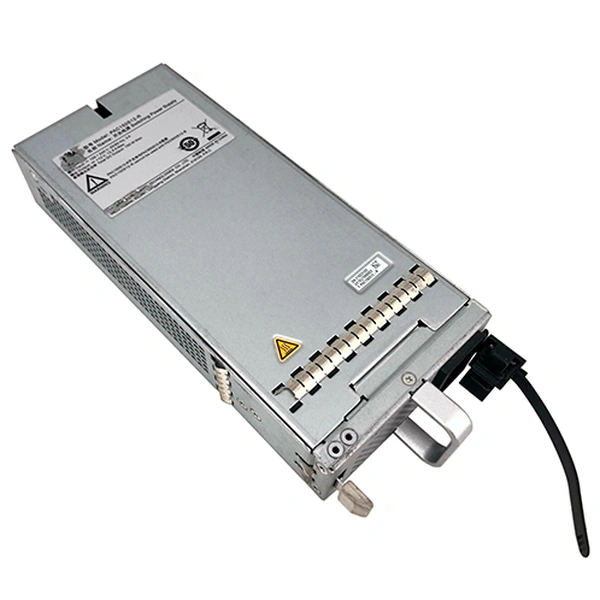

Figure 1 Appearance of the PAC150S12-R
Version Mapping
Table 2 Mappings between PAC150S12-R and product models
Product | Product Model | First Supported Version |
AR6000 | AR6140-16G4XG ( 02352MQU ) | V300R019C00 |
AR6000-S | AR6140H-S (02353NTH) | V300R019C10 |
Panel
Figure 2 Panel of the PAC150S12-R
1. Power indicator (STAT) 2. Handle
3. AC power socket
Table 3 Ports on the PAC150S12-R
Port | Connector Type | Description | Available Components |
AC power socket | C13 straight female | Use an AC Power Cable to connect the router to a power source. | AC Power Cable |
Jack for power cable locking strap | - | Insert a power cable locking strap in this jack to secure the power cable. | Power cable locking strap |
Table 4 Functions and features of the PAC150S12-R
Functions and Features | Description |
Input undervoltage protection | Stops power output and automatically restores power output after the input voltage becomes normal. |
Input overcurrent protection | Stops power output and does not automatically restore power output after the input current becomes normal. |
Output overvoltage protection | Intermittently stops output and automatically restores output after the overvoltage condition is removed. |
Output current limiting protection | Intermittently provides output and automatically restores normal output after the output current falls within a normal range. |
Output short circuit protection | Intermittently provides output and automatically restores normal output after the output short circuit is removed. |
Overtemperature protection | When the temperature of the power module reaches a preset threshold , the power module stops power output and will automatically restore power output after the temperature drops back to the normal range. |
Technical Specifications
Table 5 Technical specifications of the PAC150S12-R
Item | Specification |
Dimensions without packaging (H x W x D) [mm(in.)] | 39.8 mm x 90 mm x 214.3 mm ( 1.57 in. x 3.54 in. x 8.44 in. ) |
Weight without packaging [kg(lb)] | 0.76 kg (1.68 lb) |
Rated input voltage [V] | 100 V AC to 240 V AC, 50/60 Hz |
Input voltage range [V] | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
Maximum input current [A] | 3 A |
Rated output voltage [V] | 12 V DC |
Rated output power [W] | 150 W |
Power dissipation Mode | Natural heat dissipation without fans |
Hot swapping | Supported |
