Huawei 600 W AC Power Module PAC-600WD-B

Overview

Table 1 Basic information about the PAC-600WD-B.

Appearance

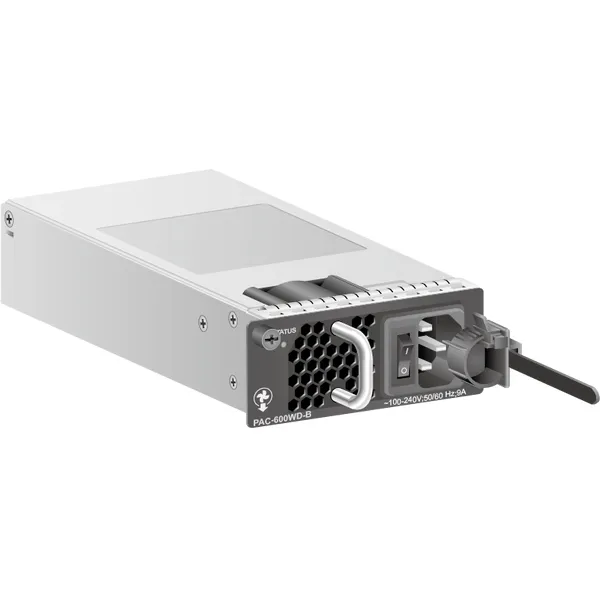

Figure 1 Appearance of the PAC-600WD-B

download (3).png

Version Mapping

Table 2 Mappings between PAC-600WD-B and product models

Panel

Figure 2 Panel of the PAC-600WD-B

1. Captive screw 2. Airflow flag (air out)

3. Indicator 4. Fan air vent

5. Handle 6. Power switch

7. AC power socket 8. AC power cable locking strap

Technical Specifications

Table 3 Technical specifications of the PAC-600WD-B

Item	Specification
Dimensions without packaging (H x W x D) [mm(in.)]	40 mm x 100 mm x 205 mm (1.6 in. x 3.9 in. x 8.1 in.)
Weight without packaging [kg(lb)]	1 kg (2.2 lb)
Number of inputs	1
Rated input voltage [V]	100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V]	90 V AC to 290 V AC, 45 Hz to 65 Hz
Maximum input current [A]	9 A
Rated output voltage [V]	12 V
Rated output current [A]	50 A
Rated output power [W]	600 W
Power dissipation Mode	Heat dissipation with fan
Hot swapping	Supported
