Huawei PAC600S12-EB(600 W AC Power Module)
Overview
Table 1 Basic information about the PAC600S12-EB
Item | Details |
Description | 600 W AC Power Module |
Part Number | 02312FFU-002 |
Model | PAC600S12-EB |

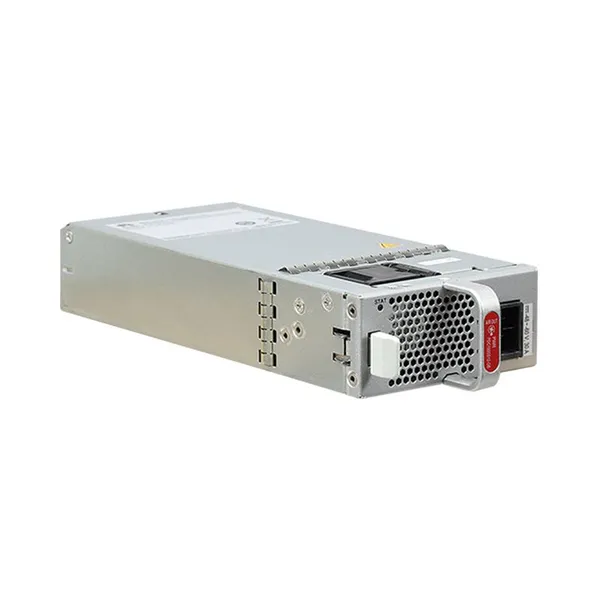

Figure 1 Appearance of the PAC600S12-EB
Version Mapping
Table 2 Mappings between PAC600S12-EB and product models
Product | Product Model | First Supported Version |
S6730-H | S6730-H24X6C (02352FSG) | V200R020C10 |
S6730-H | S6730-H24X6C (02352FSG-001) | V200R020C10 |
S6730-H | S6730-H24X6C (02352FSG-005) | V200R021C10SPC500 |
S6730-H | S6730-H24X6C (02352FSG-007) | V200R021C10SPC600 |
S6730-H | S6730-H24X6C (02353GFC) | V200R020C10 |
S6730-H | S6730-H24X6C (02353GFC-001) | V200R020C10 |
S6730-H | S6730-H24X6C (02353GFC-003) | V200R021C10SPC500 |
S6730-H | S6730-H24X6C (02353GFC-004) | V200R021C10SPC600 |
S6730-H | S6730-H48X6C (02352FSF) | V200R020C10 |
S6730-H | S6730-H48X6C (02352FSF-003) | V200R020C10 |
S6730-H | S6730-H48X6C (02352FSF-007) | V200R021C10SPC500 |
S6730-H | S6730-H48X6C (02352FSF-009) | V200R021C10SPC600 |
S6730-H | S6730-H48X6C (02352FSF-011) | V200R021C10SPC600 |
S6730-H | S6730-H48X6C (02353FWL) | V200R020C10 |
S6730-H | S6730-H48X6C (02353FWL-003) | V200R020C10 |
S6730-H | S6730-H48X6C (02353FWL-005) | V200R021C10SPC500 |
S6730-H | S6730-H48X6C (02353FWL-006) | V200R021C10SPC600 |
S6730-S | S6730-S24X6Q (02353AJW) | V200R020C10 |
S6730-S | S6730-S24X6Q (02353AJW-001) | V200R020C10 |
S6730-S | S6730-S24X6Q (02353AJW-003) | V200R021C10SPC500 |
S6730-S | S6730-S24X6Q (02353AJW-004) | V200R021C10SPC600 |
S6730S-S | S6730S-S24X6Q-A (02353AJX) | V200R020C10 |
S6730S-S | S6730S-S24X6Q-A (02353AJX-001) | V200R020C10 |
S6730S-S | S6730S-S24X6Q-A (02353AJX-003) | V200R021C10SPC500 |
S6730S-S | S6730S-S24X6Q-A (02353AJX-004) | V200R021C10SPC600 |
S6730S-H | S6730S-H24X6C-A (02353HVK) | V200R020C10 |
S6730S-H | S6730S-H24X6C-A (02353HVK-001) | V200R020C10 |
S6730S-H | S6730S-H24X6C-A (02353HVK-003) | V200R021C10SPC500 |
S6730S-H | S6730S-H24X6C-A (02353HVK-004) | V200R021C10SPC600 |
Figure 2 Panel of the PAC600S12-EB
1. Lock | 2. Indicator | 3. Fan air vent | 4. Handle |
5. Airflow flag ( air out ) | 6. AC power socket | - | - |
Functions and Features
Table 3 Functions of a 600 W AC power module
Function | Description | |
Input protection | Input undervoltage protection | In this protection state, the power module stops supplying power. When the input voltage restores to the normal range, the power module automatically resumes power supply. |
Input overcurrent protection | In this protection state, the power module stops supplying power and cannot automatically resume power supply when the input current restores to the normal range. | |
Output protection | Output overvoltage protection | In this protection state, the power module stops supplying power intermittently. Whenthe output voltage restores to the normal range, the power module automatically resumes power supply. |
Output overcurrent protection | In this protection state, the power module supplies power intermittently. When the output current is within a range, the power module automatically resumes power supply. | |
Output short-circuit protection | In this protection state, the power module supplies power intermittently. When the short circuit is removed, the power module automatically resumes power supply. | |
Overtemperature protection | When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply. | |
Hot swapping | Supported | |
When a power module enters overtemperature protection state, take
measures to lower the ambient temperature. The power module can
automatically start supplying power again when the temperature falls
within the normal range.
Table 4 Technical specifications of the PAC600S12-EB
Item | Specification |
Dimensions without packaging (H x W x D) [mm(in.)] | 40 mm x 90 mm x 215 mm (1.6 in. x 3.5 in. x 8.5 in.) |
Weight without packaging [kg(lb)] | 0.985 kg (2.17 lb) |
Number of inputs | 1 |
Rated input voltage [V] | 100 V AC to 240 V AC, 50/60 Hz 240 V DC |
Input voltage range [V] | 90 V AC to 290 V AC, 45 Hz to 65 Hz 190 V DC to 290 V DC |
Maximum input current [A] | 100 V AC to 240 V AC: 8 A 240 V DC: 4 A |
Rated output voltage [V] | 12 V |
Rated output current [A] | 50 A |
Rated output power [W] | 600 W |
Power dissipation Mode | Heat dissipation with fan |
Hot swapping | Supported |
