Huawei 300 W AC Power Module PAC300S12-CL

Overview

Table 1 Basic information about the PAC300S12-CL

Appearance

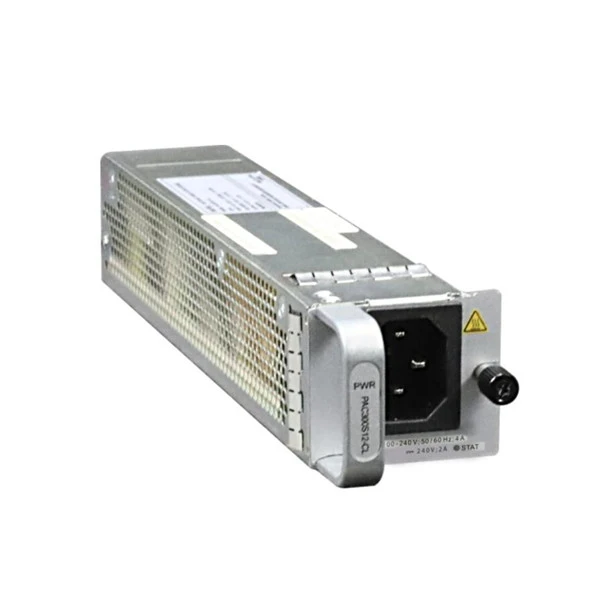

Figure 1 Appearance of the PAC300S12-CL

download (1).png

Version Mapping

Table 2 Mappings between PAC300S12-CL and product models

Panel

Figure 2 Panel of the PAC300S12-CL

1. Handle2 AC power socket

3. Indicator4 Captive screw

Technical Specifications

Table 3 Technical specifications of the PAC300S12-CL

Item	Specification
Dimensions without packaging (H x W x D) [mm(in.)]	40.2 mm x 47.2 mm x 202.6 mm (1.6 in. x 1.9 in. x 8.0 in.)
Weight without packaging [kg(lb)]	0.5 kg (1.1 lb)
Number of inputs	1
Rated input voltage [V]	100 V AC to 240 V AC, 50/60 Hz 240 V DC
Input voltage range [V]	90 V AC to 290 V AC, 45 Hz to 65 Hz 190 V DC to 290 V DC
Maximum input current [A]	100 V AC to 240 V AC: 4 A 240 V DC: 2 A
Rated output voltage [V]	12 V
Rated output current [A]	25 A
Rated output power [W]	300 W
Power dissipation Mode	Natural heat dissipation without fans
Hot swapping	Supported
