SFP-1000BaseT Overview

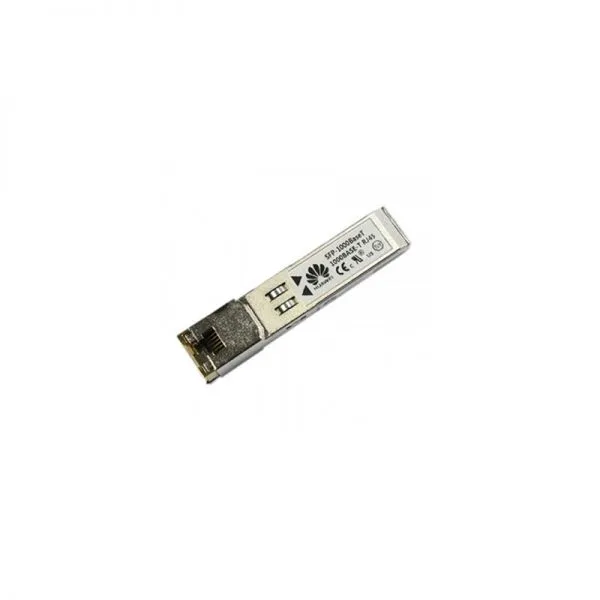

Huawei SFP-1000BaseT is 1000BASE-T (RJ45) SFP Electrical Module, which can be
connected by RJ45 cables.
The Supported Switches
Figure 1. SFP-1000BaseT can be installed in the switch’s SFP slot.
Table 2 shows the Huawei hot switches which support SFP-1000BaseT.
Model | Description |
S2700-26TP-EI-DC | 24 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, DC -48V |
S2700-26TP-EI-AC | 4 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, AC 110/220V |
S2700-9TP-PWR-EI | 8 x Ethernet 10/100 ports, PoE+, 1 dual-purpose 10/100/1000 or SFP, AC 110/220V |
S2700-26TP-PWR-EI | 24 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, PoE+, without power module |
S2700-9TP-EI-AC | 8 x Ethernet 10/100 ports, 1 dual-purpose 10/100/1000 or SFP, AC 110/220V |
S5700-28P-LI-AC | 24 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V |
S5700-28TP-LI-AC | 24 x Ethernet 10/100/1000ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC 110/220V |
S5700S-52P-LI-AC | 48 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V |
S5700-28P-PWR-LI-AC | 24 x Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, AC 110/220V |
S5700-10P-PWR-LI-AC | 8 x Ethernet 10/100/1000 PoE+ ports, 2 Gig SFP, AC 110/220V |
SFP-1000BaseT Specification
SFP-1000BaseT Specification | |
Transceiver form factor | SFP |
Transmission speed | The transmission speed varies depending on the port where the copper transceiver module is used. It supports 10 Mbit/s, 100 Mbit/s, and 1000 Mbit/s speeds when used on a GE optical port, and can only work at 1000 Mbit/s when used on a 10GE optical port. |
Standard compliance | 1000Base-T |
Connector type | RJ45 |
Applicable cable and maximum transmission distance | Ethernet cable: 0.1 km |
Typic Power(W) | 1 |
