S-SFP-GE-LH40-SM1310 Overview

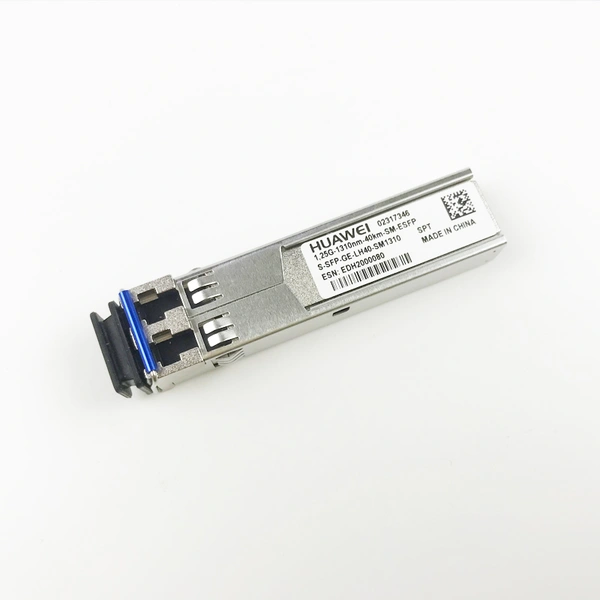

Huawei S-SFP-GE-LH40-SM1310 is Optical Transceiver. It’s a Single-mode Module.
S-SFP-GE-LH40-SM1310 Specification
S-SFP-GE-LH40-SM1310 Specification | |
Transceiver form factor | eSFP |
Transmission speed | 1 Gbit/s |
Center wavelength (nm) | 1310 |
Standard compliance | 1000base-LX/LH |
Connector type | LC |
Applicable cable and maximum transmission distance | Single-mode fiber: 40 km |
Transmit power (dBm) | -5.0 to 0 |
Maximum receiver sensitivity (dBm) | -23 |
Overload power (dBm) | -3.0 |
Extinction ratio (dB) | 9 |
Operating temperature | 0°C to 70°C (32°F to 158°F) |
Net Dimension(D x W x H mm) | 110 x 70 x 37 |
