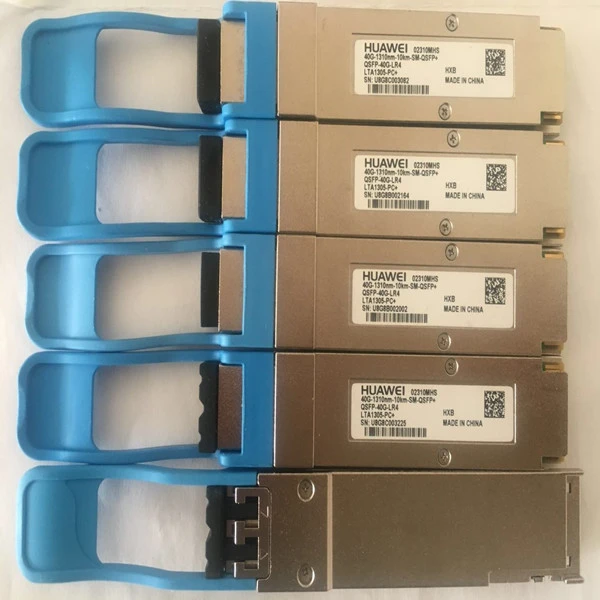

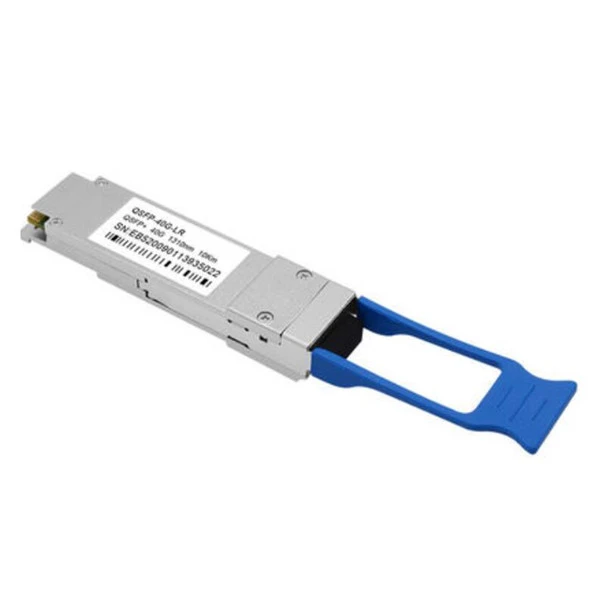

QSFP-40G-LR4 Overview
Huawei QSFP-40G-LR4 SFP is 40GBASE-LR4 optical transceiver, QSFP+, 40G,
single-mode module (1310nm, 10km, LC).
Huawei QSFP-40G-LR4 SFP Specification
Item | Description |
Brand | Huawei |
Product Part Number | 02310MHS |
Model | QSFP-40G-LR4 |
Description | 40GBASE-LR4 optical transceiver, QSFP+, 40G, single-mode module (1310nm, 10km, LC) |
Transceiver form factor | QSFP+ |
Transmission speed | 40GE |
Center wavelength (nm) | 1271, 1291, 1311, 1331 |
Standards compliance | 40GBASE-LR4 |
Connector type | LC |
Applicable cable and maximum transmission distance | Single-mode fiber: 10 km |
Transmit power (dBm) | -7.0 to +2.3 |
Maximum receiver sensitivity (dBm) | -11.5 |
Overload power (dBm) | 3.3 |
Extinction ratio (dB) | 3.5 |
Operating temperature | 0°C to 70°C (32°F to 158°F) |
Part number | 02310MHS |
Software and Hardware Attributes | Hardware |
Pack Weight(kg) | 0.056 |
Pack Volume(m^3) | 0.000433 |
Pack Dimension(D*W*H mm) | 165*75*35 |
Net Dimension(D*W*H mm) | 165*75*35 |
Discount Category | Optical Module |
Product Line | Enterprise Network |
Sub Product Family | Fixed Switch |
Huawei QSFP-40G-LR4 SFP Product Feature
• Functionally identical to Huawei® QSFP-40G-LR4-HW
• High Channel Capacity: 40 Gbps per optics
• Up to 10km links on single mode fiber
• 4 CWDM channels 1271, 1291,1311 and 1331nm
• Electrically hot-swappable
• Compliant with IEEE 802.3ba 40GBASE-LR4
• Power dissipation < 3.5 W
• Supports Digital Diagnostics Monitoring
• RoHS6 Compliant
