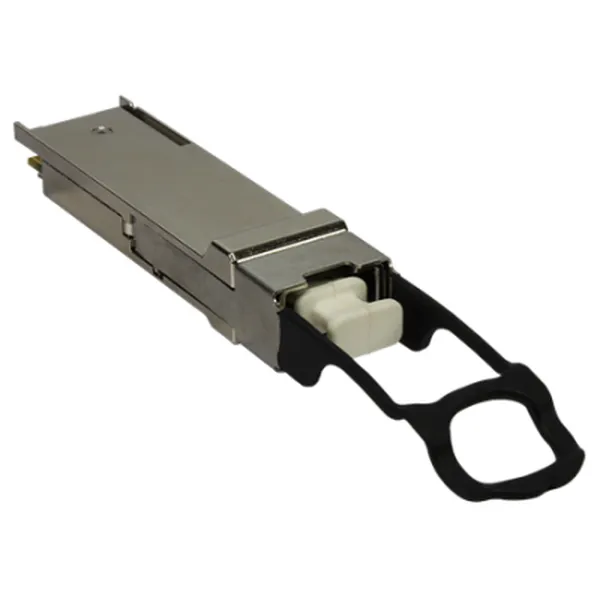

QSFP-40G-iSR4 Overview
Huawei QSFP-40G-iSR4 Compatible 40GBASE-SR4/4x10GBASE-SR QSFP+
Transceiver (MMF, 850nm, 150m, MTP/MPO).
Product Code | QSFP-40G-iSR4 |
Part Number | 02310MHR |
Description | 40GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(Connect to four SFP+ Optical Transceiver) |
Form Type | QSFP+ |
Wavelength | 850nm |
Interface | MTP/MPO |
Cable Type | MMF |
CDR Support | Yes |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
Max Data Rate | 40Gbps |
Max Cable Distance* | 150m** |
Optical Components | VCSEL 850nm |
DOM Support | NO |
Protocols | 40G Ethernet, Infiniband QDR, SATA/SAS3, IEEE 802.3ba |
