PDC1000S56-CB

PDC1000S56-CB is Huawei 1000 W DC Power Module of Huawei Switches(after the front airway, power supply panel side outlet).

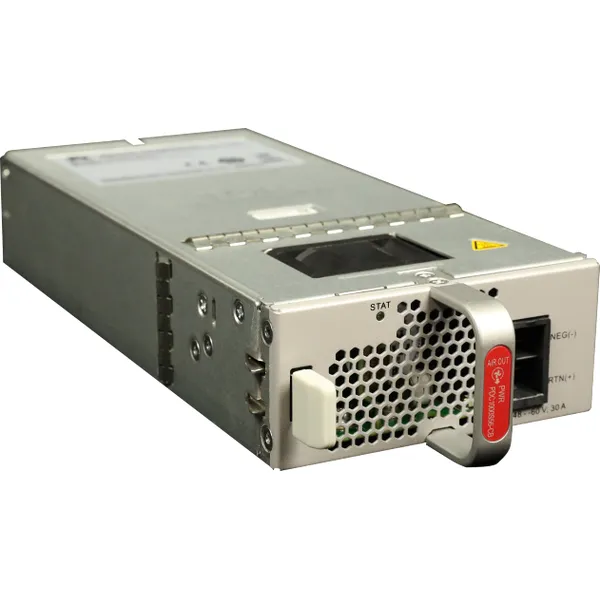

PDC1000S56-CB (1000 W DC Power Module)

Technical Specifications

Table 1 Technical specifications of the PDC1000S56-CB

Item	Specification
Dimensions without packaging (H x W x D) [mm(in.)]	40 mm x 90 mm x 215 mm (1.6 in. x 3.5 in. x 8.5 in.)
Weight without packaging [kg(lb)]	2.0 kg (4.41 lb)
Number of inputs	1
Rated input voltage [V]	–48 V DC to –60 V DC
Input voltage range [V]	–38.4 V DC to –72 V DC
Maximum input current [A]	30 A
Rated output voltage [V]	56 V
Rated output current [A]	17.86 A
Rated output power [W]	1000 W
Power dissipation Mode	Heat dissipation with fan
Hot swapping	Supported
