PDC1000S12-DB (1000 W DC Power Module)
Table 1 Basic information about the PDC1000S12-DB
Item | Details |
Description | 1000 W DC Power Module |
Part Number | 02312QJK |
Model | PDC1000S12-DB |

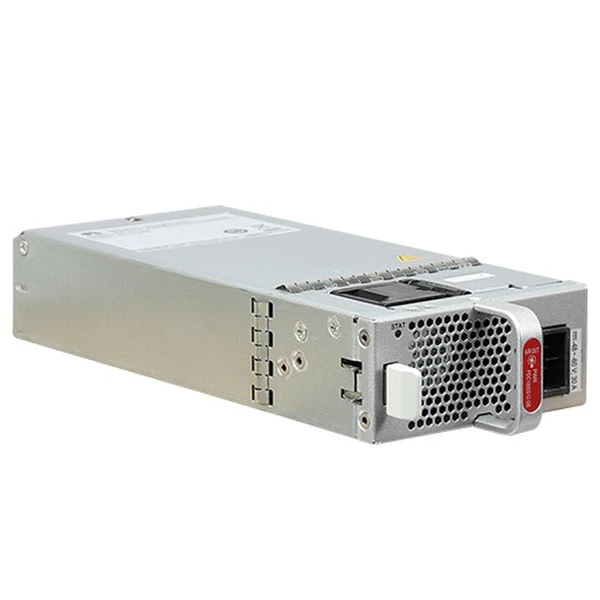

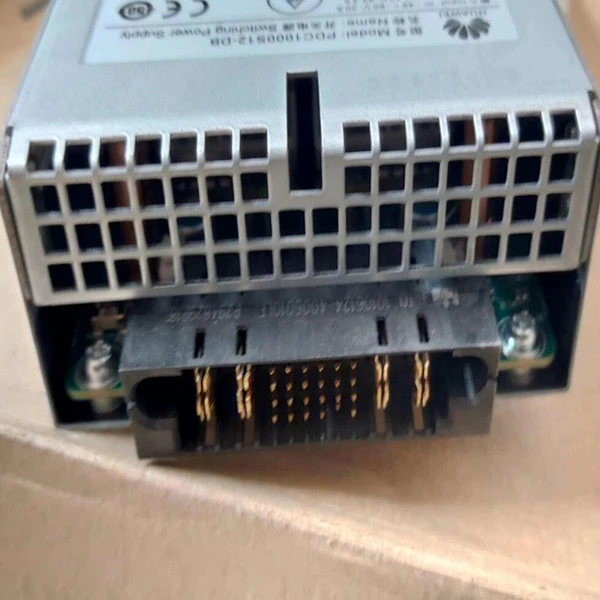

Figure 1 Appearance of the PDC1000S12-DB
Version Mapping
Table 2 Mappings between PDC1000S12-DB and product models
Product | Product Model | First Supported Version |
S6730-H | S6730-H24X6C (02352FSG) | V200R019C00 |
S6730-H | S6730-H24X6C (02352FSG-001) | V200R020C10 |
S6730-H | S6730-H24X6C (02352FSG-005) | V200R021C10SPC500 |
S6730-H | S6730-H24X6C (02352FSG-007) | V200R021C10SPC600 |
S6730-H | S6730-H24X6C (02353GFC) | V200R019C00 |
S6730-H | S6730-H24X6C (02353GFC-001) | V200R020C10 |
S6730-H | S6730-H24X6C (02353GFC-003) | V200R021C10SPC500 |
S6730-H | S6730-H24X6C (02353GFC-004) | V200R021C10SPC600 |
S6730-H | S6730-H48X6C (02352FSF) | V200R019C00 |
S6730-H | S6730-H48X6C (02352FSF-003) | V200R020C10 |
S6730-H | S6730-H48X6C (02352FSF-007) | V200R021C10SPC500 |
S6730-H | S6730-H48X6C (02352FSF-009) | V200R021C10SPC600 |
S6730-H | S6730-H48X6C (02352FSF-011) | V200R021C10SPC600 |
S6730-H | S6730-H48X6C (02353FWL) | V200R019C00 |
S6730-H | S6730-H48X6C (02353FWL-003) | V200R020C10 |
S6730-H | S6730-H48X6C (02353FWL-005) | V200R021C10SPC500 |
S6730-H | S6730-H48X6C (02353FWL-006) | V200R021C10SPC600 |
S6730-S | S6730-S24X6Q (02353AJW) | V200R019C00 |
S6730-S | S6730-S24X6Q (02353AJW-001) | V200R020C10 |
S6730-S | S6730-S24X6Q (02353AJW-003) | V200R021C10SPC500 |
S6730-S | S6730-S24X6Q (02353AJW-004) | V200R021C10SPC600 |
S6730S-S | S6730S-S24X6Q-A (02353AJX) | V200R019C00 |
S6730S-S | S6730S-S24X6Q-A (02353AJX-001) | V200R020C10 |
S6730S-S | S6730S-S24X6Q-A (02353AJX-003) | V200R021C10SPC500 |
S6730S-S | S6730S-S24X6Q-A (02353AJX-004) | V200R021C10SPC600 |
S6730S-H | S6730S-H24X6C-A (02353HVK) | V200R019C10 |
S6730S-H | S6730S-H24X6C-A (02353HVK-001) | V200R020C10 |
S6730S-H | S6730S-H24X6C-A (02353HVK-003) | V200R021C10SPC500 |
S6730S-H | S6730S-H24X6C-A (02353HVK-004) | V200R021C10SPC600 |

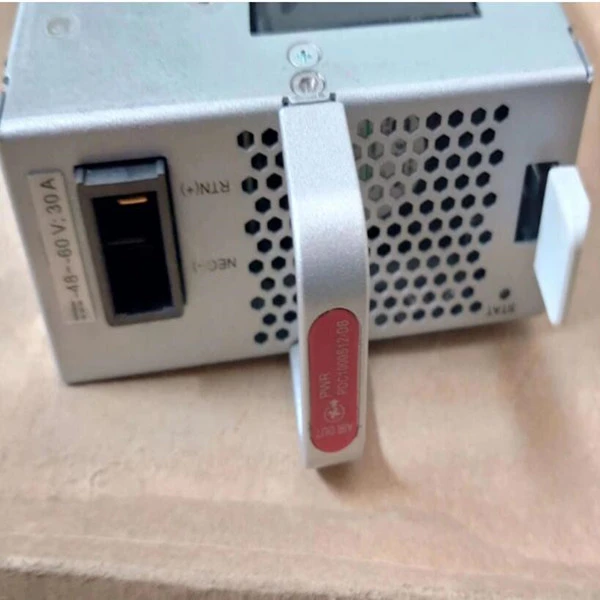

Figure 5-39 Panel of the PDC1000S12-DB
1. Lock | 2. Indicator | 3. Fan air vent | 4. Handle |
5. Airflow flag (air out) | 6. DC power socket | - |
Functions and Features
Table 3 Functions of a 1000 W AC PoE power module
Function | Description |
Input protection | Provides protection against input overvoltage, input undervoltage, and input overcurrent. |
Output protection | Provides protection against output overvoltage, output overcurrent, and output short circuits. |
Overtemperature protection | When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply. |
Hot swapping | Supported |
NOTE :
When a power module enters overtemperature protection state, take measures
to lower the ambient temperature. The power module can automatically start
supplying power again when the temperature falls within the normal range.
Table 4 Technical specifications of the PDC1000S12-DB
Item | Specification |
Dimensions without packaging (H x W x D) [mm(in.)] | 40 mm x 90 mm x 215 mm (1.6 in. x 3.5 in. x 8.5 in.) |
Weight without packaging [kg(lb)] | 1.02 kg (2.25 lb) |
Number of inputs | 1 |
Rated input voltage [V] | -48 V DC to -60 V DC |
Input voltage range [V] | -38.4 V DC to -72 V DC |
Maximum input current [A] | 30 A |
Rated output voltage [V] | 12 V |
Rated output current [A] | 83.3 A |
Rated output power [W] | 1000 W |
Power dissipation Mode | Heat dissipation with fan |
Hot swapping | Supported |
