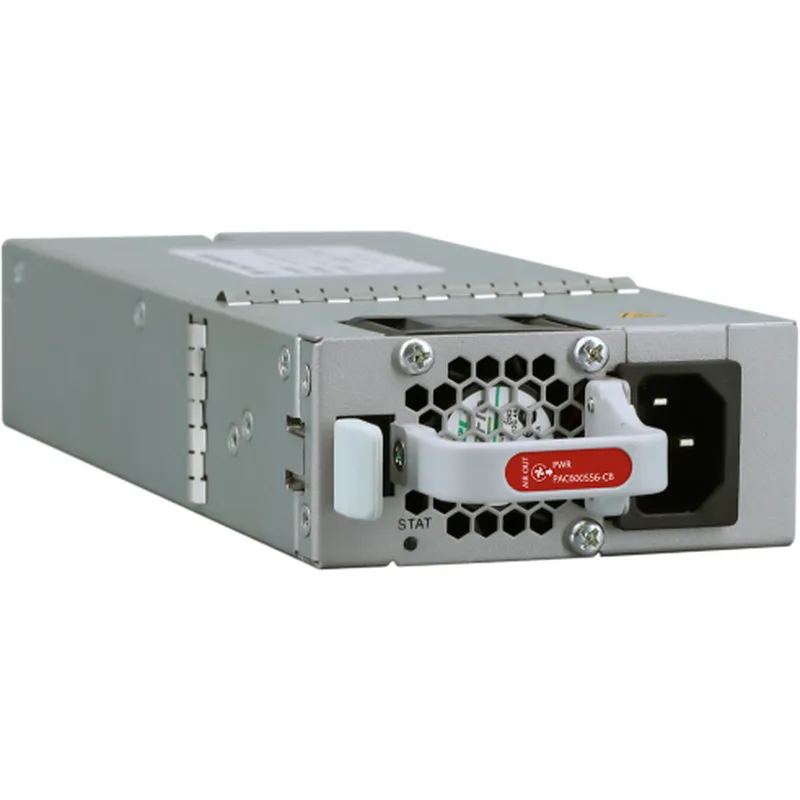

PAC600S56-CB

Dimensions without packaging

(H x W x D) [mm(in.)]

40 mm x 90 mm x 215 mm

(1.6 in. x 3.5 in. x 8.5 in.)

Weight without packaging [kg(lb)]

1.1 kg (2.43 lb)

Number of inputs

1

Rated input voltage [V]

100 V AC to 130 V AC; 50/60 Hz

200 V AC to 240 V AC; 50/60 Hz

240 V DC

Input voltage range [V]

90 V AC to 290 V AC; 45 Hz~66 Hz

190 V DC to 290 V DC

Maximum input current [A]

100 V AC to 130 V AC: 8 A

200 V AC to 240 V AC: 8 A

240 V DC: 4 A

Rated output voltage [V]

56 V

Rated output current [A]

100 V AC to 130 V AC input: 5.36 A

200–240 V AC and 240 V DC input: 10.72 A

Rated output power [W]

100 V AC to 130 V AC input:

· Total power: 300 W

200 V AC to 240 V AC input and 240 V DC input:

· Total power: 600 W

Power dissipation Mode

Heat dissipation with fan

Hot swapping

Supported
