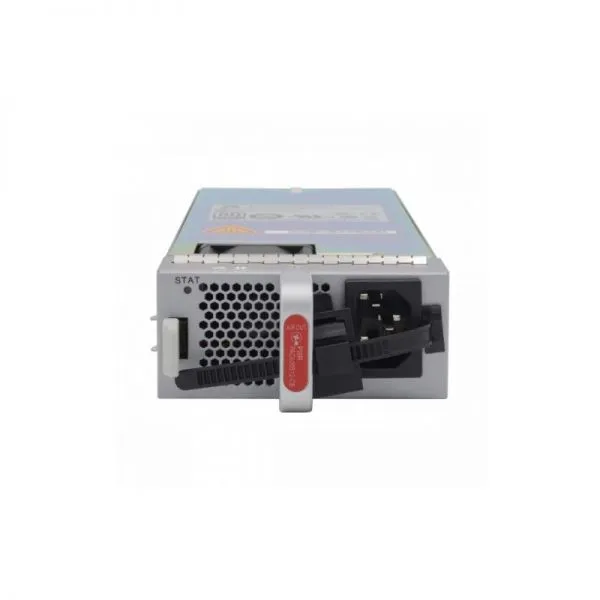

PAC1000S56-CB

Dimensions   without packaging

 (H x W x D) [mm(in.)]

40 mm x 90 mm x 215 mm

(1.6 in. x 3.5   in. x 8.5 in.)

Number of   inputs

1

Rated input   voltage [V]

100 V AC to 130 V AC, 50/60 Hz

200 V AC to 240 V AC, 50/60 Hz

240 V DC

Input voltage   range [V]

90 V AC to 290 V AC, 45 Hz to 65 Hz

190 V DC to 290 V DC

Maximum input   current [A]

100 V AC to 130 V AC: 12 A

200 V AC to 240 V AC: 8 A

240 V DC: 8 A

Rated output   voltage [V]

56 V

Rated output   current [A]

100 V AC to 130 V AC input: 16.08 A

200 V AC to 240 V AC input

and 240 V DC input: 17.86 A

Rated output   power [W]

100 V AC to 130 V AC input:

•Total: 900 W

200 V AC to 240 V AC input

and 240 V   DC input:

•Total: 1000 W

Power   dissipation Mode

Heat dissipation with fan

Hot swapping

Supported
