OMXD10000 Overview

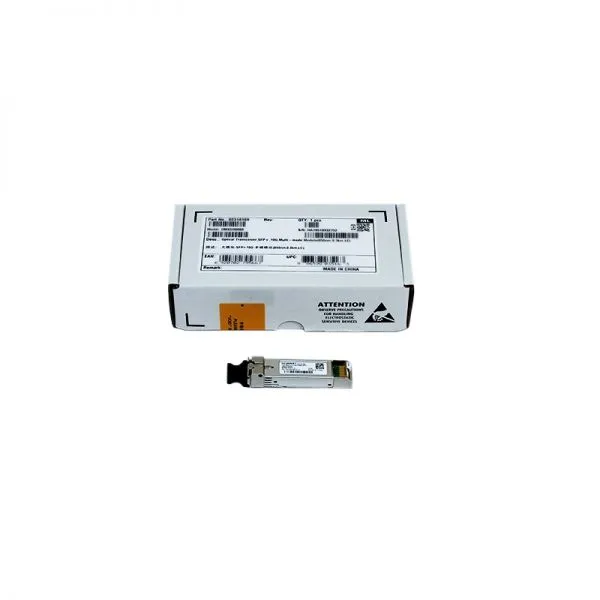

Huawei OSX010000 is a 10G Optical Transceiver. It’s a Single-mode Module.
Table 1 shows the Huawei hot switches which support OMXD10000.
Model | Description |
S5700-28P-LI-AC | 24 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V |
S5700-28TP-LI-AC | 24 x Ethernet 10/100/1000ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V |
S5700S-52P-LI-AC | 48 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V |
S5700-28P-PWR-LI-AC | 24 x Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, AC 110/220V |
S5700-10P-PWR-LI-AC | 8 x Ethernet 10/100/1000 PoE+ ports, 2 Gig SFP, AC 110/220V |
S5720-36C-EI-AC | 28 x Ethernet 10/100/1000 ports,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+,1 interface slot, with 150W AC |
S5700-28C-EI-AC | 24 x Ethernet 10/100/1000 ports, with 1 interface slot, with 150W AC power supply |
S5720-56C-HI-AC | 48 x Ethernet 10/100/1000 ports, 4 10 Gig SFP+, with 2 interface slots, with 600W AC power supply |
S5720-56PC-EI-AC | 48 x Ethernet 10/100/1000 ports,4 Gig SFP, with 1 interface slot, with 150W AC power supply |
S5720-56C-PWR-HI-AC | 48 x Ethernet 10/100/1000 POE+ ports,4 10 Gig SFP+, with 2 interface slots, with 1150W AC power supply |
OMXD30000 Specification
OMXD30000 Specification | |
Transceiver form factor | SFP+ |
Transmission speed | 10 Gbit/s |
Center wavelength (nm) | 1310 |
Standard compliance | 10GBASE-iLR |
Connector type | LC |
Applicable cable and maximum transmission distance | Single-mode fiber: 10 km |
Transmit power (dBm) | -8.2 to +0.5 |
Maximum receiver sensitivity (dBm) | -12.6 |
Overload power (dBm) | 0.5 |
Extinction ratio (dB) | 3.5 |
Operating temperature | 0°C to +70°C (32°F to +158°F) |
| Net Dimension(D x W x H mm) | 110 x 70 x 37 |
