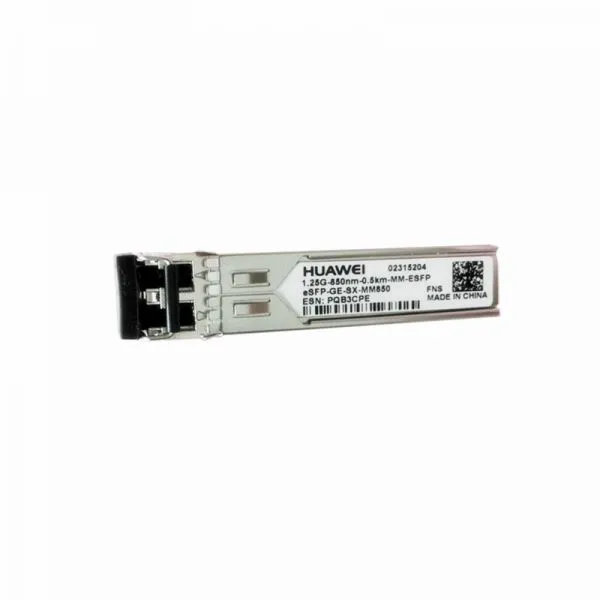

Huawei Optical Transceiver Module eSFP-GE-SX-MM850

eSFP-GE-SX-MM850 Overview

Huawei eSFP-GE-SX-MM850 is Optical Transceiver. It’s a Multi-mode Module.

Table 1 shows the Huawei hot switches which support eSFP-GE-SX-MM850.

Model	Description
S5700-28P-LI-AC	24 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V
S5700-28TP-LI-AC	24 x Ethernet 10/100/1000ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V
S5700S-52P-LI-AC	48 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V
S5700-28P-PWR-LI-AC	24 x Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, AC 110/220V
S5700-10P-PWR-LI-AC	8 x Ethernet 10/100/1000 PoE+ ports, 2 Gig SFP, AC 110/220V
S5720-36C-EI-AC	28 x Ethernet 10/100/1000 ports,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+ ,1 interface slot , with 150W AC
S5700-28C-EI-AC	24 x Ethernet 10/100/1000 ports, with 1 interface slot, with 150W AC power supply
S5720-56C-HI-AC	48 x Ethernet 10/100/1000 ports, 4 10 Gig SFP+, with 2 interface slots, with 600W AC power supply
S5720-56PC-EI-AC	48 x Ethernet 10/100/1000 ports,4 Gig SFP, with 1 interface slot, with 150W AC power supply
S5720-56C-PWR-HI-AC	48 x Ethernet 10/100/1000 POE+ ports,4 10 Gig SFP+, with 2 interface slots, with 1150W AC power supply

eSFP-GE-SX-MM850 Specification

OMXD30000 Specification
Transceiver form factor	eSFP
Transmission speed	GE
Center wavelength (nm)	850
Standard compliance	1000BASE-SX
Connector type	LC
Applicable cable and maximum transmission distance	· Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.22 km · Multimode fiber (OM1): 0.275 km · Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.5 km · Multimode fiber (OM2): 0.55 km · Multimode fiber (OM3): 1 km
Transmit power (dBm)	-8.2 to +0.5
Maximum receiver sensitivity (dBm)	-14.4
Overload power (dBm)	0.5
Extinction ratio (dB)	3.5
Operating temperature	-40°C to +85°C (-40°F to +185°F)
