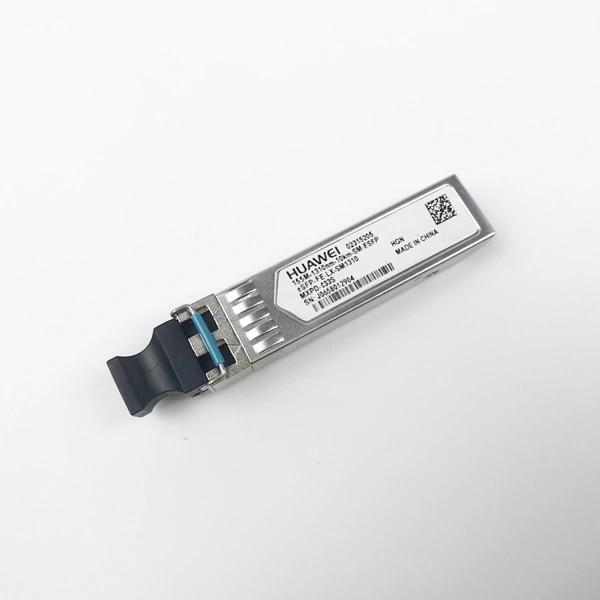

eSFP-FE-LX-SM1310 Overview
Huawei eSFP-FE-LX-SM1310 is Optical Transceiver.
It’s a Single-mode Module.
eSFP-FE-LX-SM1310 Specification
eSFP-FE-LX-SM1310 Specification | |
Transceiver form factor | eSFP |
Transmission speed | 100 Mbit /s |
Center wavelength (nm) | 1310 |
Standard compliance | 1000BASE-LX |
Connector type | LC |
Applicable cable and maximum transmission distance | Single-mode fiber : 15 km |
Transmit power (dBm) | -15.0 to -8.0 |
Maximum receiver sensitivity (dBm) | -31.0 |
Overload power (dBm) | -8.0 |
Extinction ratio (dB) | 8.2 |
Operating temperature | 0°C to +70°C ( 32°F to +158°F ) |
Net Dimension(D x W x H mm) | 110*75*40 |
Table 2 shows the Huawei hot switches which support eSFP-FE-LX-SM1310.
Model | Description |
S2700-26TP-EI-DC | 24 x Ethernet 10 /100 ports , 2 dual-purpose 10 /100/1000 or SFP , DC -48V |
S2700-52P-EI-AC | 48 x Ethernet 10/100 ports, 4 Gig SFP, AC 110/220V |
S2700-26TP-EI-AC | 4 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, AC 110/220V |
S2700-9TP-PWR-EI | 8 x Ethernet 10/100 ports, PoE+, 1 dual-purpose 10/100/1000 or SFP, AC 110/220V |
S2700-26TP-PWR-EI | 24 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, PoE+, without power module |
S2700-9TP-EI-AC | 8 x Ethernet 10/100 ports,1 dual-purpose 10/100/1000 or SFP, AC 110/220V |
S3700-28TP-EI-AC | 24 x Ethernet 10/100 ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC 110/220V |
S3700-28TP-SI-AC | 24 x Ethernet 10/100 ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC 110/220V |
S3700-28TP-PWR-SI | 24 x Ethernet 10/100 PoE+ ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,with 500W AC power supply |
