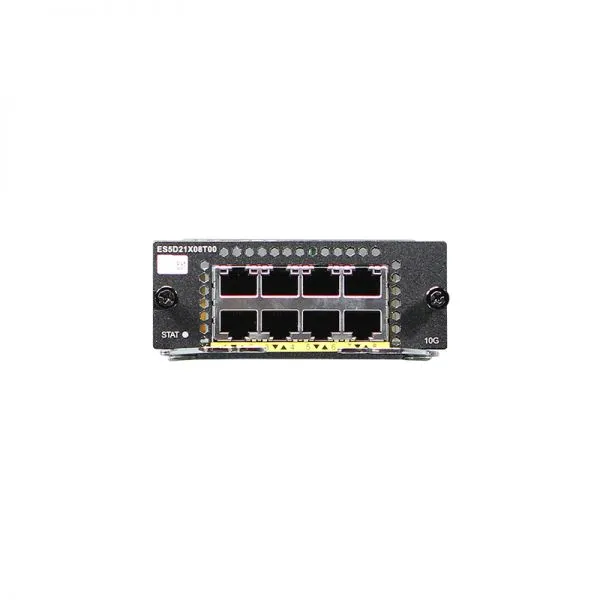

ES5D21X08T00

Basic functions

Provides eight 10GE RJ45 ports for data access

and line-rate switching.

Hot swap

Supported

Service port stacking

The service ports on the card can be used as stack ports.

Physical specifications

Dimensions (W x D x H):

100 mm x   208 mm x 40 mm (3.9 in. x 8.2 in. x 1.6 in.)

Maximum power consumption: 22.1 W

Environment parameters

Operating temperature: 0°C to 45°C   (32°F to 113°F)

Relative humidity: 5% RH to 95% RH

Storage temperature: -40°C to   +70°C (-40°F to +158°F)
