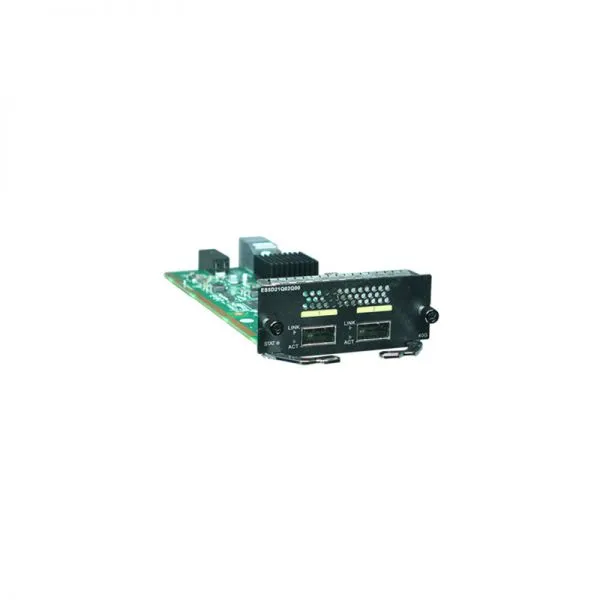

ES5D21Q02Q00

Basic functions

Provides two 40GE   QSFP+ optical ports for data access

and line-rate switching. Each 40GE port   can be split into

four 10GE ports.

Hot swap

Supported

Service port stacking

Ports on the card   can be used as stack ports.

NOTE:

A 40GE port cannot   be used as a stack port after it is split

into four 10GE ports.

Physical specifications

Dimensions (W x D x   H): 100 mm x 208 mm x 40 mm

(3.9 in. x 8.2 in. x 1.6 in.)

Maximum power   consumption: 9 W

Environment parameters

Operating   temperature: 0°C to 45°C (32°F to 113°F)

Relative humidity:   5% to 95%

Storage   temperature: -40°C to +70°C (-40°F to +158°F)
