S5735S-L24P4X-A Overview
S5735S-L24P4X-A is the Huawei S5735-L switch with 24 x 10/100/1000Base-T ports,
4 x GE SFP ports. Huawei CloudEngine S5735-L is a series of simplified gigabit access
switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE
uplink ports. They are designed for enterprise campus network access and gigabit to
the desktop. Built on next-generation, high-performance hardware and powered by
Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature
flexible Ethernet networking, diversified security control, and support for multiple
Layer 3 routing protocols — providing higher performance and more powerful s
ervice processing capabilities for networks.
S5735S-L24P4X-A Specification
Item | Description |
Memory (RAM) | 1GB |
Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
Mean time between failures (MTBF) | 57.07 years |
Mean time to repair (MTTR) | 2 hours |
Availability | > 0.99999 |
Service port surge protection | Common mode: ±7 kV |
Power supply surge protection | ±6 kV in differential mode, ±6 kV in common mode |
Dimensions (H x W x D) | · Basic dimensions (excluding the parts protruding from the body): · 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) · Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
Weight (with packaging) | 4.31 kg (9.5 lb) |
Stack ports | Any 10/100/1000BASE-T ports or 10G SFP+ ports (applicable in V200R019C10 and later versions) |
RTC | Not supported |
RPS | Not supported |
PoE | Supported |
Rated voltage range | · AC input: 100 V AC to 240 V AC, 50/60 Hz · High-Voltage DC input: 240 V DC |
Maximum voltage range | · AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz · High-Voltage DC input: 190 V DC to 290 V DC |
Maximum power consumption (100% throughput, full speed of fans) | · Not providing the PoE function: 56 W · 100% PoE loads: 458 W (PoE: 380 W) |
Typical power consumption (30% of traffic load, tested according to ATIS standard) | 43 W |
Operating temperature | -5°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). |
Short-term operating temperature | 5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: · The equipment operates at a temperature of over 50°C (122°F) consecutively for at most 96 hours in one year. · The equipment operates at a temperature of over 50°C (122°F) for a total of no more than 360 hours in one year. · The equipment operates at a temperature of over 50°C (122°F) for no more in 15 times in one year. The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.
|
Storage temperature | -40°C to +70°C (-40°F to +158°F) |
Noise under normal temperature (27°C, sound power) | <57.7 db (A) |
Relative humidity | 5% to 95%, noncondensing |
Operating altitude | 0-5000 m (0-16404 ft.) |
Certification | · EMC certification · Safety certification · Manufacturing certification |
Part number | 98010928 |
Product Details

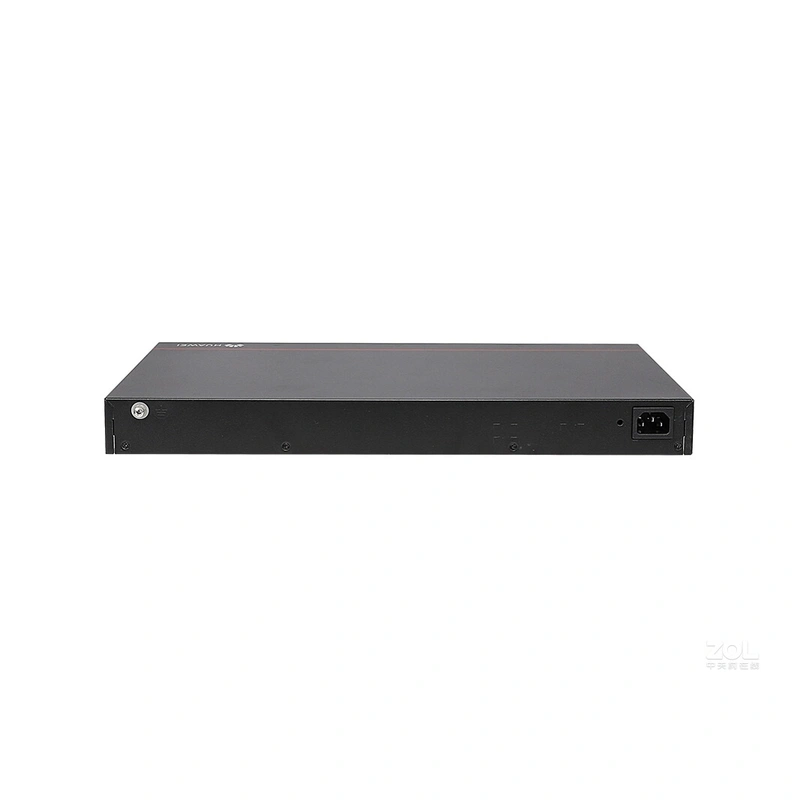

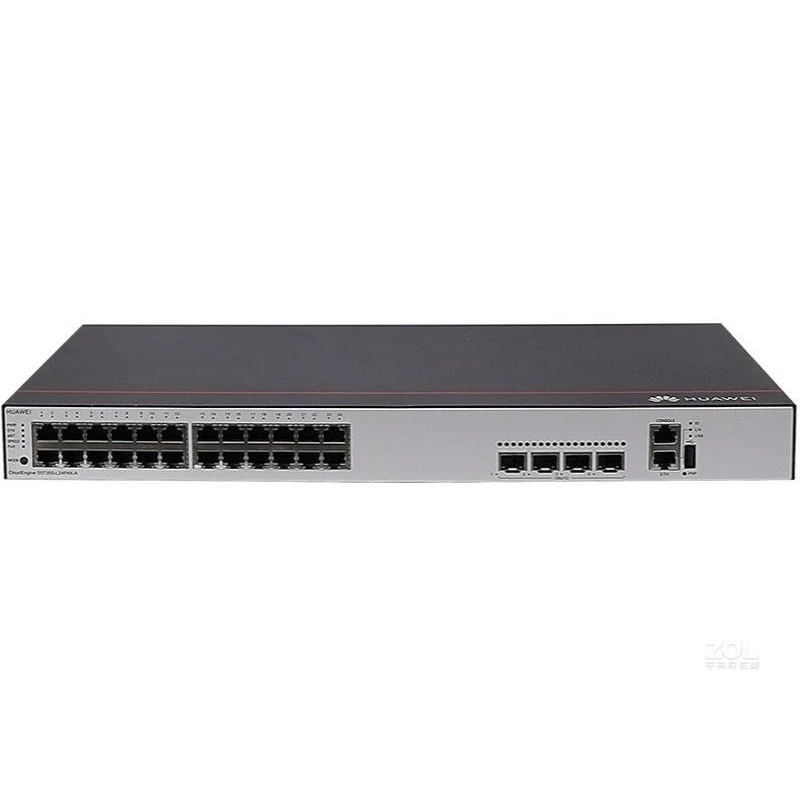

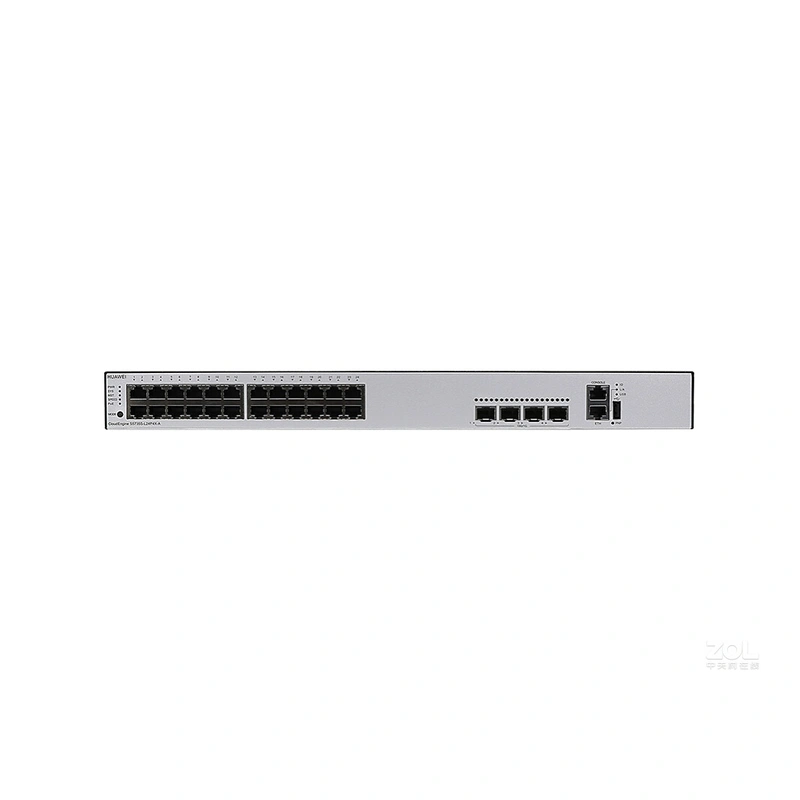

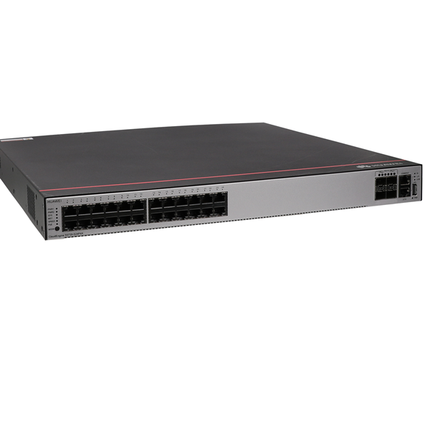

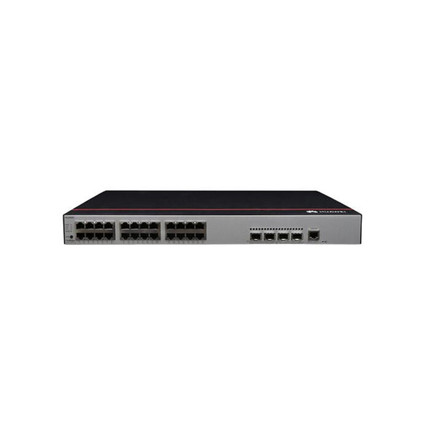

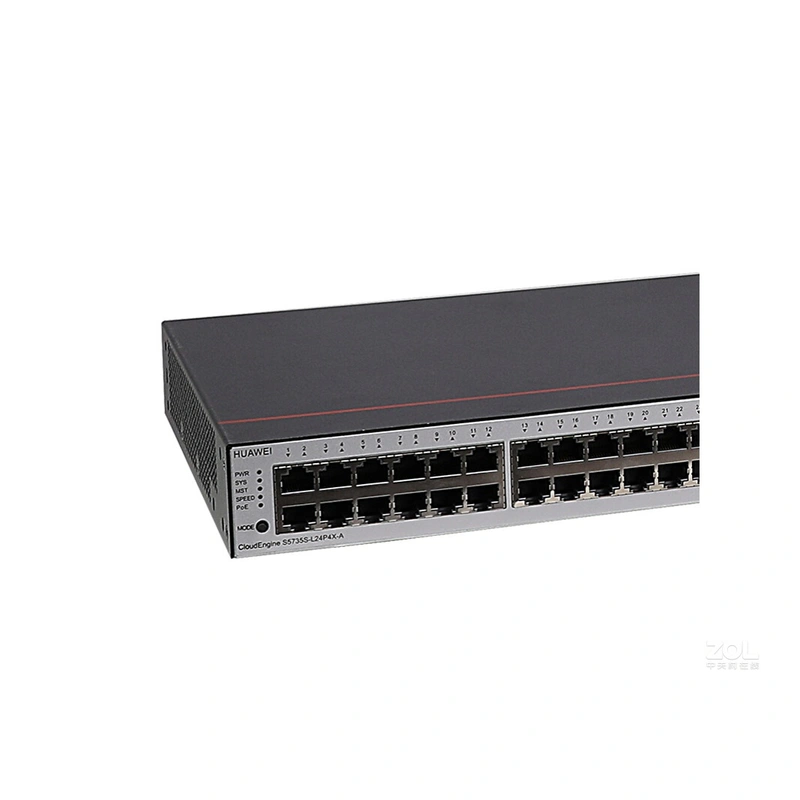

Figure 1 shows the appearance of S5735S-L24P4X-A .
1 | Twenty-four PoE+ 10/100/1000BASE-T ports | 2 | Four 10GE SFP+ ports Applicable modules and cables: · GE optical module · GE-CWDM optical module · GE-DWDM optical module · GE copper module (100M/1000M auto-sensing) · 10GE SFP+ optical module (OSXD22N00 not supported) · 10G-CWDM optical module · 10G-DWDM optical module · 1 m and 3 m SFP+ high-speed copper cables · 3 m and 10 m SFP+ AOC cables · 0.5 m and 1.5 m SFP+ dedicated stack copper cables (used for zero-configuration stacking, applicable in V200R019C10 and later versions) |
3 | One console port | 4 | One ETH management port |
5 | One USB port | 6 | One PNP button NOTICE: To restore the factory settings and reset the switch , hold down the button for at least 6 seconds. To reset the switch, press the button.Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. |
7 | Ground screw NOTE: It is used with a ground cable. | 8 | Jack for AC power cable locking strap NOTE: The AC power cable locking strap is not delivered with the switch. |
9 | AC socket NOTE: It is used with an AC power cabe. |
The Accessories
Table 2 shows the recommended transceivers, card and power module.
Model | Description |
Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) | |
Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) | |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) | |
OSXD22N00 | Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm, 0.22km, LC, LRM) |
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) | |
Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 | |
SFP-10G-LR | Huawei Optical Transceiver SFP-10G-LR, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
