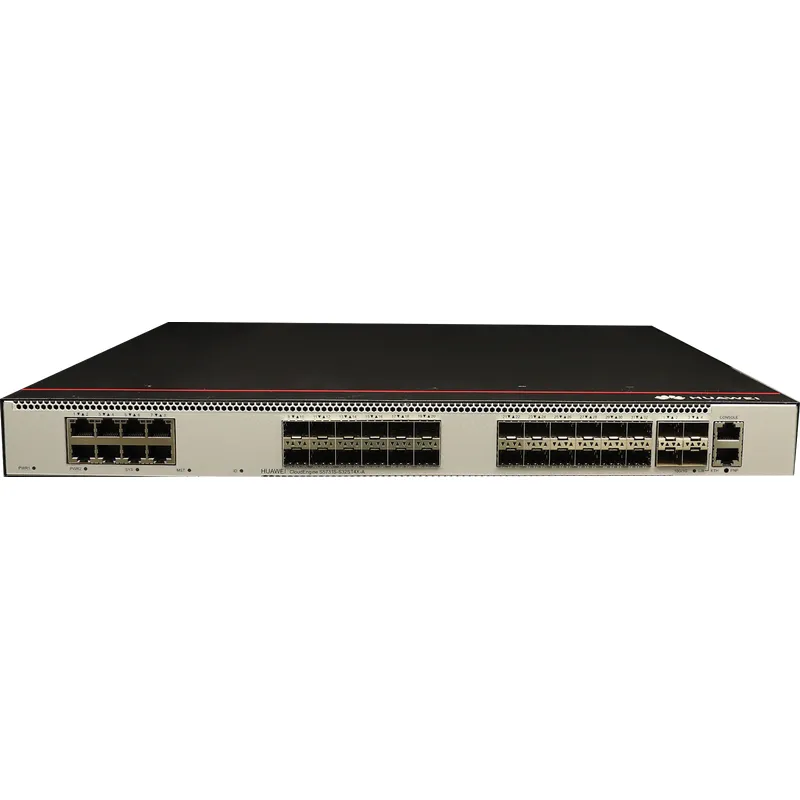

S5731S-S32ST4X-A

Dimensions without packaging

(H x W x D) [mm(in.)]

Basic dimensions (excluding the parts   protruding from the body):

43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x   17.40 in. x 16.54 in.)

Maximum dimensions (the depth is the   distance from ports on the

front panel to the parts protruding from   the rear panel):

43.6 mm x 442.0 mm x448.0 mm (1.72 in. x   17.40 in. x 17.64 in.)

Dimensions with packaging

(H x W x D) [mm(in.)]

185 mm x 650 mm x 550 mm (7.28 in. x 25.59   in. x   21.65 in.)

Chassis height [U]

1 U

Weight without packaging

[kg(lb)]

5.68 kg (12.52 lb)

Weight with packaging

[kg(lb)]

8.21 kg (18.10 lb)

Typical power consumption

[W]

73.56 W

Typical heat dissipation

[BTU/hour]

250.99 BTU/hour

Maximum power consumption

[W]

104.82 W (150 W AC or180 W DC)

119.23 W (600 W AC)

Maximum heat dissipation

[BTU/hour]

357.66 (150 W AC or180 W DC)

406.82 (600 W AC)

MTBF [year]

71.54 year

MTTR [hour]

2 hour

Availability

>0.99999

Noise at normal temperature

(acoustic power) [dB(A)]

45.47 dB(A)

Noise at normal temperature

(acoustic pressure) [dB(A)]

31.79 dB(A)

Number of card slots

0

Number of power slots

2

Number of fans modules

3

Redundant power supply

1+1

Pluggable  AC  and  DC  power  modules can be used together in the same

switch, but power modules that use natural heat dissipation and power

modules that use air cooling cannot be used together

Long-term operating

temperature[°C(°F)]

-5°C to +45°C (23°F   to 113°F) at an altitude

of 0-1800 m (0-5906 ft.)

Short-term operating

temperature[°C(°F)]

-5°C to +50°C (23°F   to 122°F) at an altitude

of 0-1800 m (0-5906 ft.)

Restriction on the operating

temperature variation rate

[°C(°F)]

When the altitude is 1800-5000 m   (5906-16404 ft.),

the highest operating temperature reduces   by 1°C

(1.8°F) every time the altitude increases by 220 m

(722 ft.).

The device can work for a short period of   time when

the operating temperature is beyond the   normal range,

but the following conditions must be met:

·          The operating   temperature can exceed 45°C (113°F) for a

           maximum of  96 consecutive hours in a year.

·           The total time   when the operating temperature exceeds

           45°C(113°F)in a year is less than or equal to 360 hours.

·          The number of times the operating temperature exceeds

          45°C(113°F) is less than or equal to 15 in one year.

If any of the preceding conditions is not   met, the device

may be damaged or an unknown error may   occur.

Devices cannot start when the temperature   is lower than

0°C(32°F).The maximum transmission  distance of an optical

module used for short-term

operation cannot exceed 10 km.

Storage temperature

[°C(°F)]

-40°C to +70°C(-40°F   to +158°F)

Long-term operating relative

humidity [RH]

5% to 95%, noncondensing

Long-term operating altitude

[m(ft.)]

0-5000 m (0-16404 ft.)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Power supply mode

Pluggable power supply

Rated input voltage [V]

·        AC input: 100 V AC to 240 V AC, 50/60 Hz

·        High-voltage DC input: 240V DC

·        DC input: -48 V DC to -60V DC

Input voltage range [V]

·       AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz

·       High-voltage DC input: 190 V DC to 290 V DC

·       DC input: -38.4 V DC to -72V DC

Maximum input current [A]

The current specifications depend on the pluggable power modules in use.

For details, see the related power module specifications.

Memory

2 GB

Flash memory

The physical space is 1 GB. You can run the   display

version command to view the actual   available space.

Console port

RJ45

Eth Management port

RJ45

USB

Not supported

RTC

Supported

RPS input

Not supported

Service port surge protection

[kV]

Common mode: ±7 kV

Power supply surge protection

[kV]

·      Configured with AC power modules:

         ±6 kV in differential mode and ±6 kV in common mode

·      Configured with DC power modules:

          ±2 kV in differential mode and ±4 kV in common mode

Types of fans

Built-in

Heat dissipation mode

Heat dissipation with fan,

intelligent fan speed adjustment

Airflow direction

Air intake from left,front and right,

air exhaustion from behind

PoE

Not supported

Certification

EMC certification

Safety certification

Manufacturing certification

3

     Four 10GE SFP+    ports

4

         One console   port

5

    One ETH management port

6

         One PNP button

             NOTICE:

      To restore the factory settings and reset the switch,

 hold down the button for  at   least 6 seconds.

     To   reset the switch, press the   button.

     Resetting the switch will cause service interruption.

     Exercise caution when you press the PNP button.

7

     Ground screw

       NOTE:

     It is     used   with a ground cable.

8

      Power module slot 1

       NOTE:

       Applicable  power module:

·        PAC150S12-R (150 W AC Power Module)

·        PDC180S12-CR (180 W DC Power Module)

·        PAC600S12-CB (600 W AC Power Module)

·        PAC600S12-DB (600 W AC Power Module)

·        PAC600S12-EB (600 W AC Power Module)

9

         Power module   slot 1

         NOTE:

        Applicable power module:

·      PAC150S12-R (150 W AC Power Module)

·      PDC180S12-CR (180 W DC Power Modle)

·      PAC600S12-CB (600 W AC Power Module)

·      PAC600S12-DB (600 W AC Power Module)

·    PAC600S12-EB   (600 W AC Power Modue)
