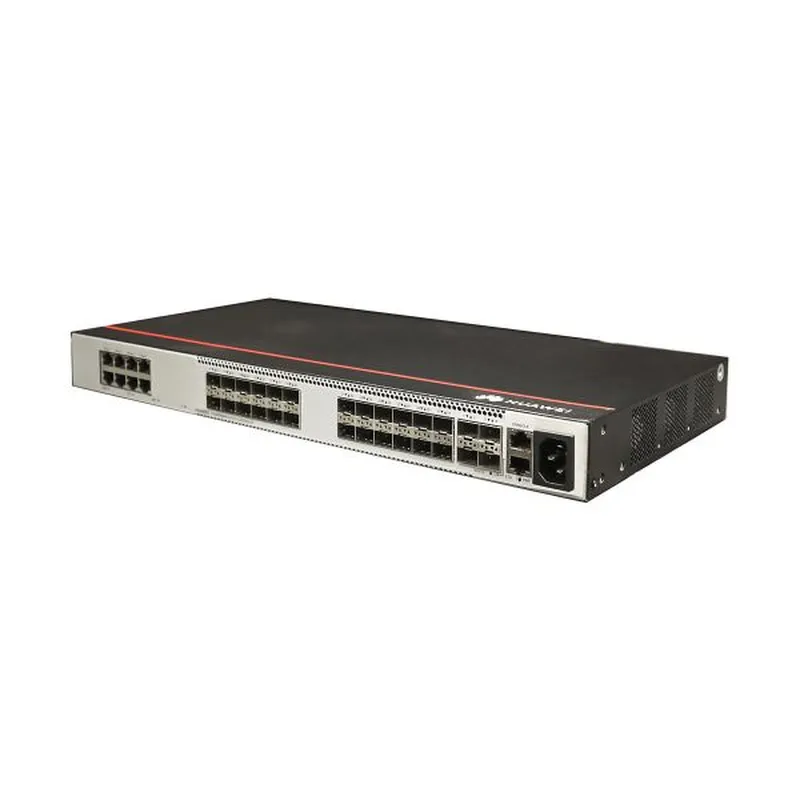

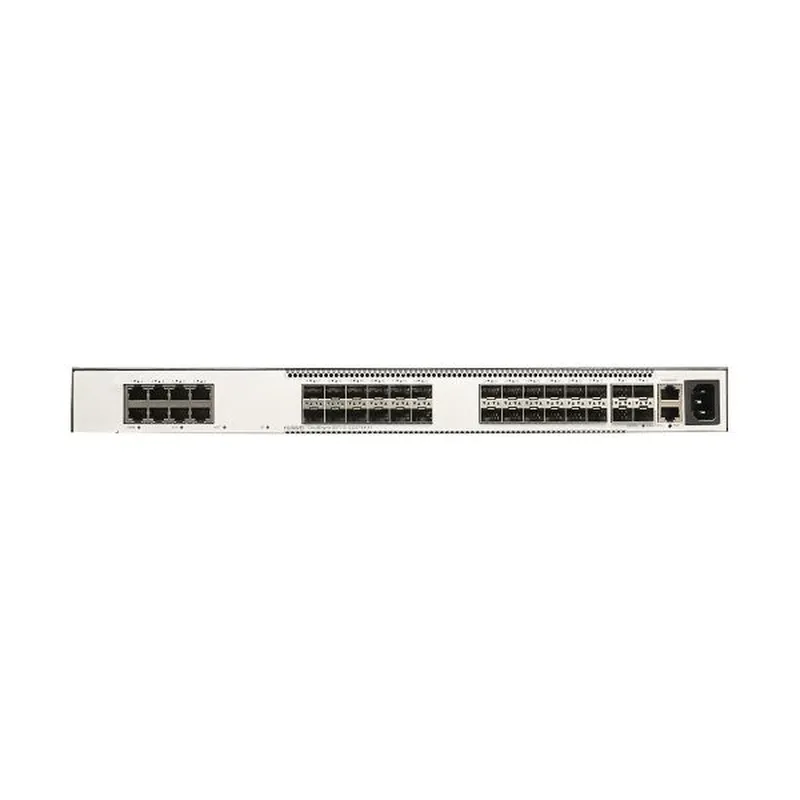

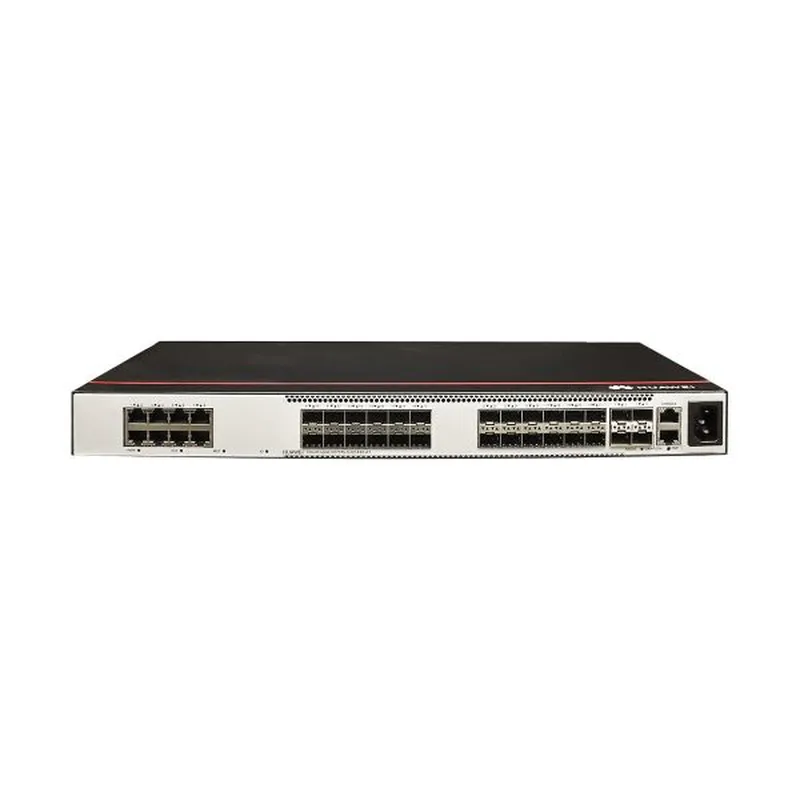

S5731S-S32ST4X-A1

Dimensions without packaging

(H x W x D) [mm(in.)]

Basic dimensions ( excluding the parts  protruding from the body )  :

43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x   17.40 in. x 8.66 in.)

Maximum dimensions (the depth is the   distance from ports on the

front panel to the parts protruding from   the rear panel):

43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x   17.40 in. x 8.94 in.)

Dimensions with packaging

(H x W x D) [mm(in.)]

90 mm x 550 mm x 355 mm (3.54 in. x 21.65   in. x   13.98 in.)

Chassis height [U]

1 U

Weight without packaging

[kg(lb)]

3.13 kg (6.90 lb)

Weight with packaging

[kg(lb)]

4.49 kg (9.90 lb)

Typical power consumption

[W]

66.85 W

Typical heat dissipation

[BTU/hour]

228.10 BTU/hour

Maximum power consumption

[W]

93.92 W

Maximum heat dissipation

[BTU/hour]

320.46 BTU/hour

MTBF [year]

32.56 year

MTTR [hour]

2 hour

Availability

>0.99999

Noise at normal temperature

(acoustic power) [dB(A)]

41.42 dB(A)

Noise at normal temperature

(acoustic pressure) [dB(A)]

27.74 dB(A)

Number of card slots

0

Number of power slots

0

Number of fans modules

2

Redundant power supply

Not supported

Long-term operating

temperature[°C(°F)]

-5°C to +45°C (23°F   to 113°F) at an altitude

of 0-1800 m (0-5906 ft.)

Short-term operating

temperature [°C(°F)]

-5°C to +50°C (23°F   to 122°F) at an altitude

of 0-1800 m (0-5906 ft.)

Restriction on the operating

temperature variation rate

[°C(°F)]

When the altitude is 1800-5000 m   (5906-16404 ft.),

the highest operating temperature reduces   by 1°C

(1.8°F) every time the altitude increases by 220 m

(722 ft.).

The device can work for a short period of   time when

the operating temperature is beyond the   normal range,

but the following conditions must be met:

·          The operating   temperature can exceed 45°C

          (113°F) for a maximum of

           96 consecutive hours in a year.

·           The total time   when the operating temperature

           exceeds 45°C(113°F) in a year is less than or

           equal to 360 hours.

·          The number of times the operating temperature

          exceeds 45°C(113°F) is less than or equal to 15

          in one year.

If any of the preceding conditions is not   met, the device

may be damaged or an unknown error may   occur.

Devices cannot start when the temperature   is lower than

0°C(32°F). The  maximum  transmission  distance of an optical

module used for short-term operation cannot exceed 10 km.

Storage temperature

[°C(°F)]

-40°C to +70°C(-40°F   to +158°F)

Long-term operating relative

humidity [RH]

5% to 95%, noncondensing

Long-term operating altitude

[m(ft.)]

0-5000 m (0-16404 ft.)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Power supply mode

AC built-in

Rated input voltage [V]

- AC input: 100 V AC to 240 V AC, 50/60 Hz

Input voltage range [V]

- AC input: 90 V AC to 264 V AC, 47 Hz to   63 Hz

Maximum input current [A]

3 A

Memory

2 GB

Flash memory

The physical space is 1 GB. You can run the   display

version command to view the actual   available space.

Console port

RJ45

Eth Management port

RJ45

USB

Not supported

RTC

Supported

RPS input

Not supported

Service port surge protection

[kV]

Common mode: ±7 kV

Power supply surge protection

[kV]

±6 kV in differential mode; ±6 kV in common mode

Types of fans

Built-in

Heat dissipation mode

Heat dissipation with fan,

intelligent fan speed adjustment

Airflow direction

Air intake from the front and left

and air exhaust from the right

PoE

Not supported

Certification

EMC certification

Safety certification

Manufacturing certification

3

     Four 10GE SFP+     ports

4

         One console   port

5

    One ETH   management   port

6

         One PNP button

           NOTICE:

      To restore the factory settings and reset the switch,

      hold down the   button for   at least 6 seconds.

      To reset the   switch, press the  button.

      Resetting the switch will cause service interruption.

      Exercise caution when you press the PNP button.

7

     AC socket

     NOTE:

     It is   used   with an AC power cable.

8

      Ground screw

      NOTE:

      It is use with a ground cable.
