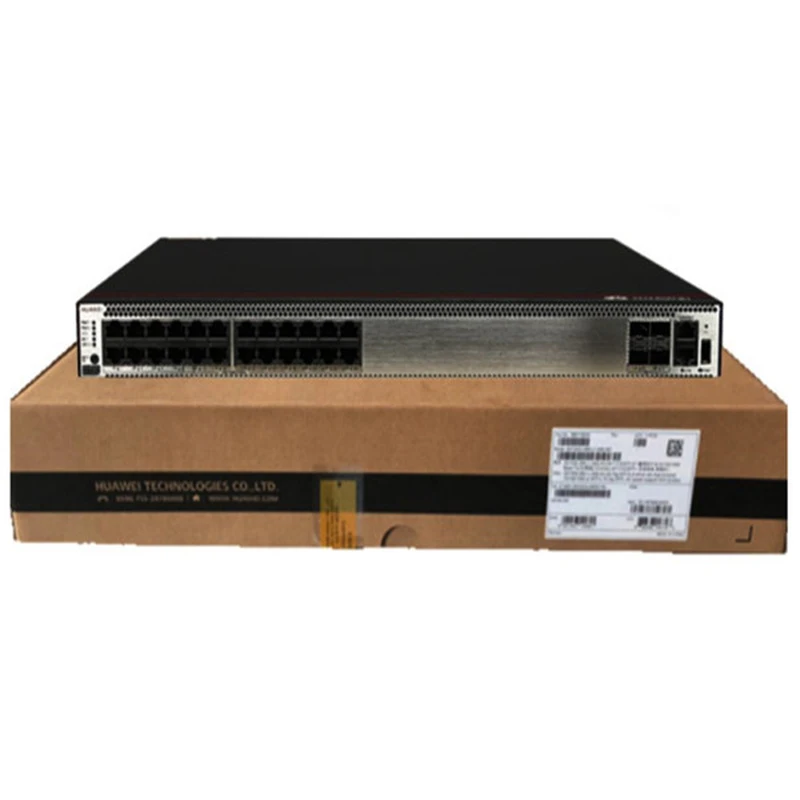

S5731-S24P4X Overview
The Huawei CloudEngine S5731-S series switches were developed based on
next-generation high-performing hardware and the Huawei Versatile Routing
Platform (VRP). The CloudEngine S5731-S supports simplified operations and
maintenance (O&M), intelligent stack (iStack), flexible Ethernet networking.
It also provides enhanced Layer 3 features and mature IPv6 features.
The CloudEngine S5731-S can be used in various scenarios. For example,
it can be used as an access or aggregation switch on a campus network or as
an access switch for Metropolitan Area Network.
S5731-S24P4X Specification
S5731-S24P4X Specification | |
Fixed port | 24 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports |
Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
Chassis height | 1 U |
Chassis weight (including packaging) | 8.6 kg |
Power supply type | 1000 W PoE AC (pluggable) |
Rated voltage range | AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz |
Maximum voltage range | • AC input (1000 W AC PoE): 90 V AC to 290 V AC, 45 Hz to 65 Hz • High-voltage DC input (1000 W AC PoE): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) |
Maximum power consumption | • 121 W (without PD) • 977 W (with PD, PD power consumption of 720 W) |
Noise | • Under normal temperature (sound power): 62.3dB (A) • Under high temperature (sound power): 71.8dB (A) • Under normal temperature (sound pressure): 52.8dB (A) |
Operating temperature | • 0-1800 m altitude: -5°C to +45°C • 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
Storage temperature | -40℃ to +70℃ |
Relative humidity | 5% to 95% (non-condensing) |
Surge protection specification (service port) | Common mode: ±6 kV |
Surge protection specification (power port) | • Differential mode: ±6 kV • Common mode: ±6 kV |
Heat dissipation | Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans |
Service Features | |
MAC address table | IEEE 802.1d standards compliance 32K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
VLAN | 4094 VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping |
Ethernet loop protection | RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switching SEP ERPS (G.8032) BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection |
IP routing | Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy Up to 16K FIBv4 entries Up to 8K FIBv4 entries |
Interoperability | VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST Link-type Negotiation Protocol (LNP), similar to DTP VLAN Central Management Protocol (VCMP), similar to VTP |
IPv6 features | Up to 8K ND entries PMTU IPv6 Ping, IPv6 Tracert, and IPv6 Telnet ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types Multicast Listener Discovery snooping (MLDv1/v2) IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN |
Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM MSDP MVPN |
QoS/ACL | Rate limiting in the inbound and outbound directions of a port Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues per port DRR, SP and DRR+SP queue scheduling algorithms WRED Re-marking of the 802.1p and DSCP fields of packets Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID Queue-based rate limiting and shaping on ports |
Security | Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, port number, and VLAN ID Port isolation, port security, and sticky MAC MAC Forced Forwarding (MFF) Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1x authentication and limit on the number of users on a port AAA authentication, RADIUS authentication, and HWTACACS authentication NAC SSH V2.0 HTTPS CPU protection Blacklist and whitelist Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets Secure Boot IPSec ECA Deception |
Reliability | LACP E-trunk Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag) ITU-Y.1731 DLDP LLDP BFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static route |
VXLAN* | VXLAN L2 and L3 gateways Centralized and distributed gateway BGP-EVPN Configured through the NETCONF protocol |
Super Virtual Fabric (SVF)
| A two-layer client architecture is supported. IGMP snooping can be enabled on access switches (ASs) and the maximum number of access users on a port can be configured. ASs can be independently configured. Services that are not supported by templates can be configured on the parent. Third-party devices are allowed between SVF parent and clients. Working as an SVF client that is plug-and-play with zero configuration |
iPCA | Directly coloring service packets to collect real-time statistics on the number of lost packets and packet loss ratio Collection of statistics on the number of lost packets and packet loss ratio at network and device levels |
TWAMP | Two-way IP link performance measurement Measurement on two-way packet delay, one-way packet loss rate, and one-way packet jitter |
Management and maintenance | iStack, with up to 9 member switches in a stack SNMP v1/v2c/v3 RMON Smart Application Control (SAC) Web-based NMS System logs and alarms of different levels GVRP MUX VLAN NetStream Intelligent O&M |
*CloudEngine S5731-S series switches require the VXLAN license or N1 advanced software package to support the VXLAN feature. | |
Product Details

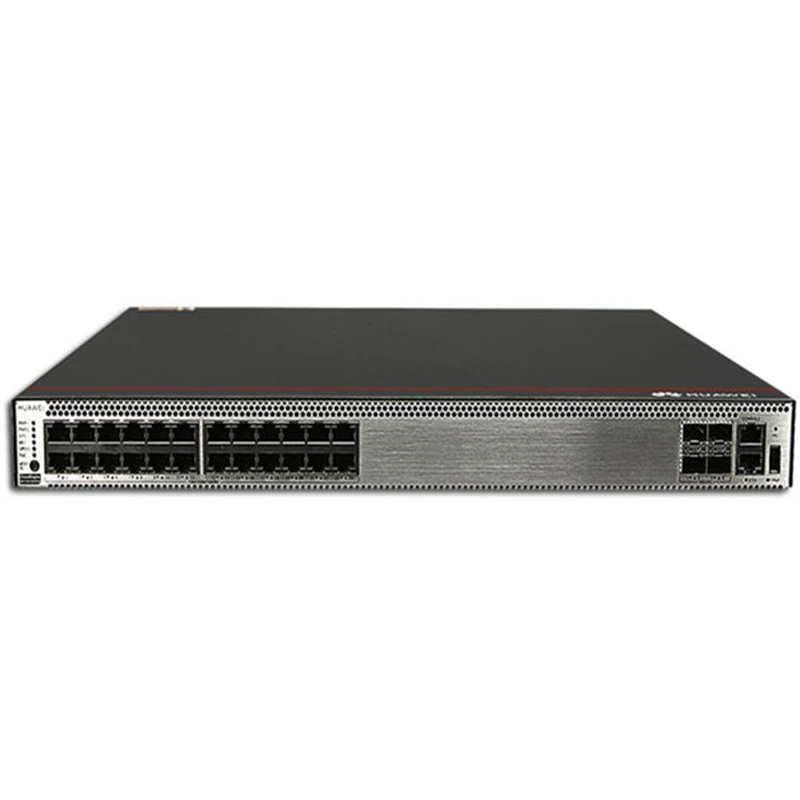

Figure 1 shows the front panel of S5731-S24P4X.

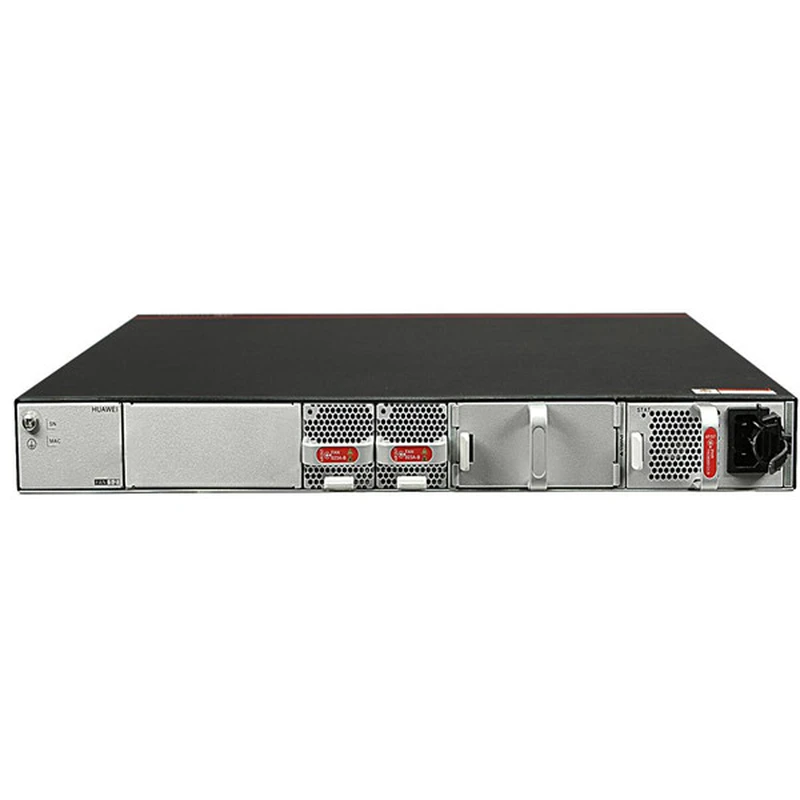

1 | Twenty-four 10/100/1000BASE-T ports | 2 | Four 10GE SFP+ optical ports |
3 | One console port | 4 | One ETH management port |
5 | One USB port | 6 | One PNP button NOTICE: To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. |
7 | Ground screw NOTE: It is used with a ground cable. | 8 | Power module slot 1 NOTE: Applicable power module: (150 W AC Power Module) (180 W DC Power Module) (600 W AC Power Module) (600 W AC Power Module) (600 W AC Power Module) |
9 | Power module slot 2 NOTE: Applicable power module: (150 W AC Power Module) (180 W DC Power Module) (600 W AC Power Module) (600 W AC Power Module) (600 W AC Power Module) | - | - |
Product Details
The Huawei S5731-S series switches provides these features and highlights:
* Powerful Service Processing Capability and Multiple Security Control Mechanisms
* Easy O&M
* Multiple Reliability Mechanisms
* Mature IPv6 Technologies
* Intelligent Stack (iStack)
* VXLAN Features
* PoE Power Supply
* Intelligent O&M
* Intelligent Upgrade
* Big Data Security Collaboration
* OPS
Applicable Modules
Table 3 shows the recommended modules.
Model | Description |
Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC) | |
Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC) | |
Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) | |
Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC) | |
Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,80km,LC) | |
Optical Transceiver,eSFP,GE,BiDi Single-mode Module (1490nm(Tx)/1570nm(Rx),80km,LC) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module (TX1490/RX1310,10km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,1.4km,LC) | |
10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module (850nm,0.1km,LC) | |
Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) | |
Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC) | |
DWDM Optical Transceiver,eSFP,2.5G,Single-mode Module (1560.61nm,120km,LC) | |
Optical Transceiver,SFP+,10G,BIDI Single-mode Module (TX 1270nm/RX 1330nm,40km,LC) |
