S5731-H48T4XC Overview
The CloudEngine S5731-H series switches are the next-generation intelligent gigabit
fixed switches developed by Huawei. The CloudEngine S5731-H builds on Huawei's
unified Versatile Routing Platform (VRP) and boasts various IDN features.
S5731-H48T4XC Specification
Item | Description |
Memory (RAM) | 4 GB |
Flash | 1 GB in total. To view the available flash memory size, run the display version command. |
Mean time between failures (MTBF) | 55.31 years |
Mean time to repair (MTTR) | 2 hours |
Availability | > 0.99999 |
Service port surge protection | Common mode: ±6 kV |
Power supply surge protection | · Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode · Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode |
Dimensions (H x W x D) | · Basic dimensions (excluding the parts protruding from the body): · 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) · Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
Weight (with packaging) | 8.55 kg (18.85 lb) |
Stack ports | 10GE SFP+ ports on the front panel, or ports on the rear card |
RTC | Supported |
RPS | Not supported |
PoE | Not supported |
Rated voltage range | · AC input: 100 V AC to 240 V AC, 50/60 Hz · High-Voltage DC input: 240 V DC · DC input: -48 V DC to -60 V DC |
Maximum voltage range | · AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz · High-Voltage DC input: 190 V DC to 290 V DC · DC input: -38.4 V DC to -72 V DC |
Maximum power consumption (100% throughput, full speed of fans) | 124 W (without card) |
Typical power consumption (30% of traffic load, tested according to ATIS standard) | 101 W (without card) |
Operating temperature | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.),the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). |
Storage temperature | -40°C to +70°C (-40°F to +158°F) |
Noise under normal temperature (27°C, sound power) | < 57.5 dB(A) |
Relative humidity | 5% to 95%, noncondensing |
Operating altitude | 0-5000 m (0-16404 ft.) |
Certification | · EMC certification · Safety certification · Manufacturing certification |
Part number | 02352QPT 02352QPT-003 02352QPT-007 |
Product Details

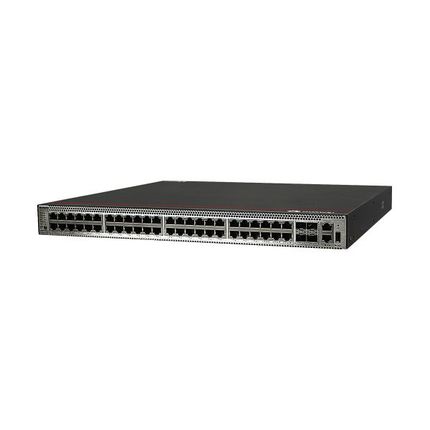

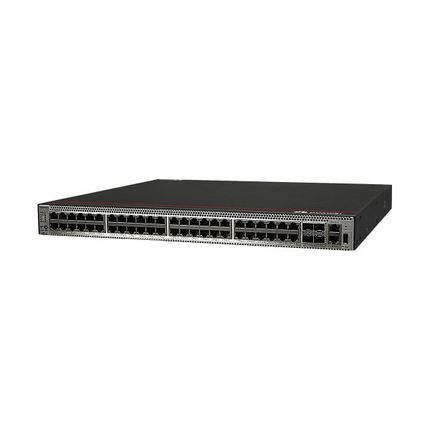

Figure 1 shows the appearance of S5731-H48T4XC.
1 | Forty-eight 10/100/1000BASE-T ports | 2 | Four 10GE SFP+ ports Applicable modules and cables: · GE optical module · GE-CWDM optical module · GE-DWDM optical module · GE copper module (100M/1000M auto-sensing) · 10GE SFP+ optical module (OSXD22N00 not supported) · 10GE-CWDM optical module · 10GE-DWDM optical module · 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables · 3 m and 10 m SFP+ AOC cables · 0.5 m and 1.5 m SFP+ dedicated stack copper cables · (used for zero-configuration stacking) |
3 | One console port | 4 | One ETH management port |
5 | One USB port | 6 | One PNP button NOTICE: To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. |
7 | Ground screw NOTE: It is used with a ground cable. | 8 | Rear card slot NOTE: Applicable card: · ES5D21X08T00 · ES5D21Q02Q00 · S7X08000 (02312URW) (applicable in V200R019C10 and later versions) · S7X08000 (02312URW-002) (applicable in V200R021C10SPC600 and later versions) · S7Q02001 (02313UBW) (applicable in V200R021C01 and later versions) · S7Q02001 (02313UBW-002) (applicable in V200R021C10SPC600 and later versions) |
9 | Fan module slot 1 NOTE: Applicable fan module: FAN-023A-B (Fan box(B,FAN panel side exhaust)) | 10 | Fan module slot 2 NOTE: Applicable fan module: FAN-023A-B (Fan box(B,FAN panel side exhaust)) |
11 | Power module slot 1 NOTE: Applicable power module: · PAC600S12-CB (600 W AC Power Module) · PAC600S12-EB (600 W AC Power Module) · PAC600S12-DB (600 W AC Power Module) (applicable in V200R020C10 and later versions) · PDC1000S12-DB (1000 W DC Power Module) · PAC150S12-R (150 W AC Power Module) · PDC180S12-CR (180 W DC Power Module) (applicable in V200R020C00 and later versions) | 12 | Power module slot 2 NOTE: Applicable power module: · PAC600S12-CB (600 W AC Power Module) · PAC600S12-EB (600 W AC Power Module) · PAC600S12-DB (600 W AC Power Module) (applicable in V200R020C10 and later versions) · PDC1000S12-DB (1000 W DC Power Module) · PAC150S12-R (150 W AC Power Module) · PDC180S12-CR (180 W DC Power Module) (applicable in V200R020C00 and later versions) |
Applicable Modules
Table 2 shows the recommended modules.
Model | Description |
600W AC Power Module(Back to Front, Power panel side exhaust) | |
Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC) | |
Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC) | |
Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) | |
Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC) | |
Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,80km,LC) | |
Optical Transceiver,eSFP,GE,BiDi Single-mode Module (1490nm(Tx)/1570nm(Rx),80km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,1.4km,LC) | |
10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC) | |
Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC) | |
Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC) | |
1000Base,BIDI Optical Transceiver,SFP,GE,Single-mode Module (TX1490nm/RX1310nm,10km,SC) |
