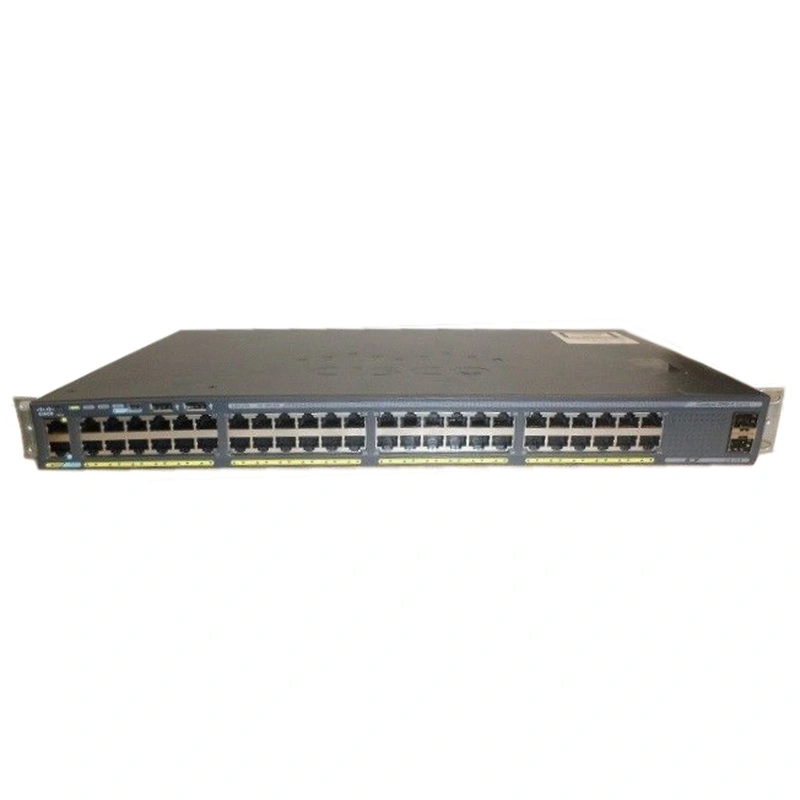

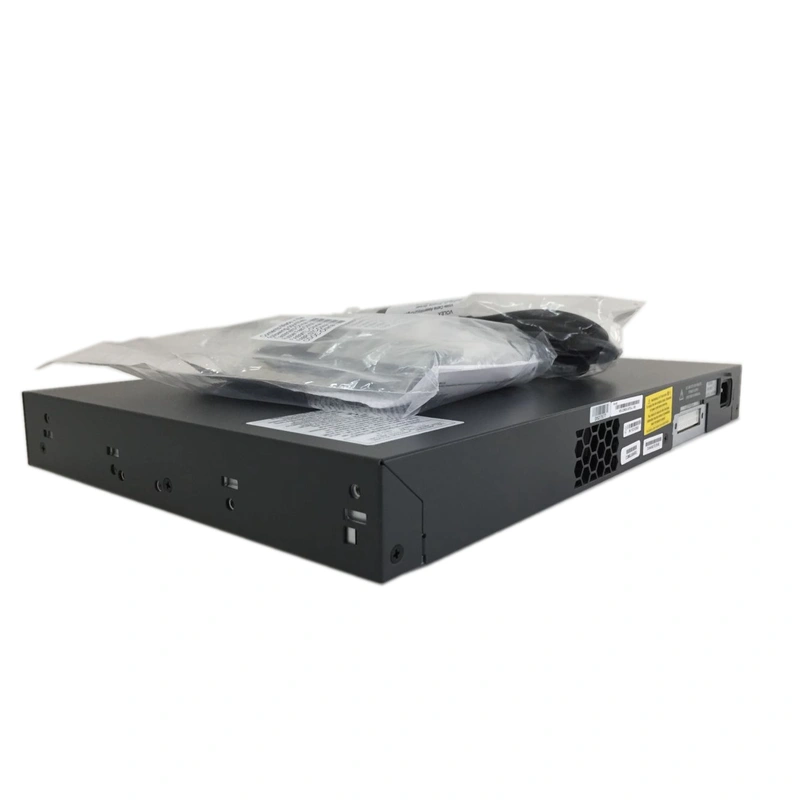

WS-C2960X-48TS-LL

General

model info:

WS-C2960X-48TS-LL

enclosure type

Rack-mountable - 1U

Ports

48 x 10/100/1000 + 2 x 1G SFP ports

Network management

Interface

10/100 Mbps Ethernet (RJ-45)

Available PoE Power

None

Forwarding bandwidth

(Gbps)

50Gbps

Maximum stacking number

None

Stack Bandwidth

80G

Forwarding Performance

104.2Mpps

Switching bandwidth

100Gbps

Maximum active VLANs

64

MAC Address Table Size

16K (default)

CPU

APM86392 600MHz dual core

RAM

256 MB

Flash Memory

64 MB

Status Indicators

Per-port status:

Link integrity, disabled,   activity, speed, and full duplex System status:

System, RPS, Stack link   status, link duplex, and link speed

Expansion / Connectivity

Console ports

USB (Type-B), Ethernet (RJ-45)

Stacking cable

None

Power Redundancy

Option (PWR-RPS2300)

Voltage range (Auto)

110V-240V

Power Consumption

Operational

0.46KVA

Miscellaneous

Width

17.5 Inches (44.5 cm)

Depth

11 Inches (27.9 Cm)

Height

1.75 Inches (4.5 cm)

Package Weight

20.26 Pounds (9.19Kg)

Weight

8.9 Pounds (4.0Kg)

Rack Mounting Kit

optional

MTBF in hours

476,560

Compliant Standards

·           IEEE 802.1D Spanning Tree Protocol

·           IEEE 802.1p CoS Prioritization

·           IEEE 802.1Q VLAN

·           IEEE 802.1s

·           IEEE 802.1w

·           IEEE 802.1X

·           IEEE 802.1ab (LLDP)

·           IEEE 802.3ad

·           IEEE 802.3af and IEEE 802.3at

·           IEEE 802.3ah (100BASE-X single/multimode fiber only)

·           IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and   1000BASE-T ports

·           IEEE 802.1D Spanning Tree Protocol

·           IEEE 802.1p CoS Prioritization

·           IEEE 802.1Q VLAN

·           IEEE 802.1s

·           IEEE 802.1w

·           IEEE 802.1X

·           IEEE 802.1ab (LLDP)

·           IEEE 802.3ad

·           IEEE 802.3af and IEEE 802.3at

·           IEEE 802.3ah (100BASE-X single/multimode fiber only)

·           IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and   1000BASE-T ports

System software / license

System software

IOS LAN Lite

license

NERGY-MGT-100-K9, EW-DO-100-DE

features

·           RPS Support

·           Jumbo Frames

·           VLANS

·           Voice Vlan

·           VTPv2

·           CDPv2

·           LLDP

·           802.3ad LACP

·           PVST/PVST+

·           802.1W/802.1S

·           Port Fast/Uplink Fast

·           port CoS Trust and Override

·           Scheduling

·           Priority Queuing

·           Configure CoS Priority Queues

·           Weighted Tail Drop

·           DSCP transparency

Network security

·           SSH, SSL and SCP

·           RADIUS and TACACS+

·           SNMPv3 crypto

·           802.1x

·           802.1x Accounting / MIB

·           802.1x w/ port security

·           802.1x w/Voice VLAN

·           802.1x Guest VLAN

·           802.1x VLAN assignment

·           802.1x MAC-Auth Bypass

·           BPDU/Root Guard

·           Port Security

·           Private VALN Edge

·           Storm Control

·           Block unknown unicast and multicast

·           IGMP Snooping

·           IGMP Filter/Throttle

Management and

Troubleshooting

·           Auto-MDOX

·           TDR

·           UDLD

·           IP SLA Responder

·           layer 2 / IP Traceroute

·           SPAN

·           RSPAN

·           Express Setup

·           Device Manager

·           Cisco Network Assistant

·           Smartports + Advisor

·           Troubleshooting Advisor

·           Drag-and-drop Cisco IOS Upgrade

·           IP Address DHCP

·           Autoinstall with saved configuration

·           Configuration Replace

·           DHCP Auto Image Upgrade

·           DHCP Port Based Allocation

·           Error Disable MIB

Environmental Ranges

Operating temperature

up to 5000 ft (1500 m)

23ºF to 113ºF

Operating temperature

up to 10,000 ft (3000 m)

23ºF to 104ºF

Short-term exception at

sea level

23ºF to 131ºF

Short-term exception up

to 5000 feet (1500 m)

23ºF to 122ºF

Short-term exception up

to 10,000 feet (3000 m)

23ºF to 113ºF

Short-term exception up

to 13,000 feet (4000 m)

23º to 104ºF

Storage temperature up

to 15,000 feet (4573 m)

-13º to 158ºF

Operating altitude

Up to 10,000 feet (Up to 3000 Meters)

Storage altitude

Up to 13,000 feet (Up to 4000 Meters)

Operating relative humidity

10% to 95% noncondensing

Storage relative humidity

10% to 95% noncondensing

GLC-LH-SMD

Cisco GLC-LH-SMD  1000BASE-LX / LH SFP transceiver module, MMF / SMF, 1310nm ,

DOM

GLC-SX-MMD

1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

CAB-CONSOLE-RJ45

Console Cable 6ft with RJ45 and DB9F

CAB-CONSOLE-USB

Console Cable 6 ft with USB Type A and mini-B
