GLC-LH-SMD Overview

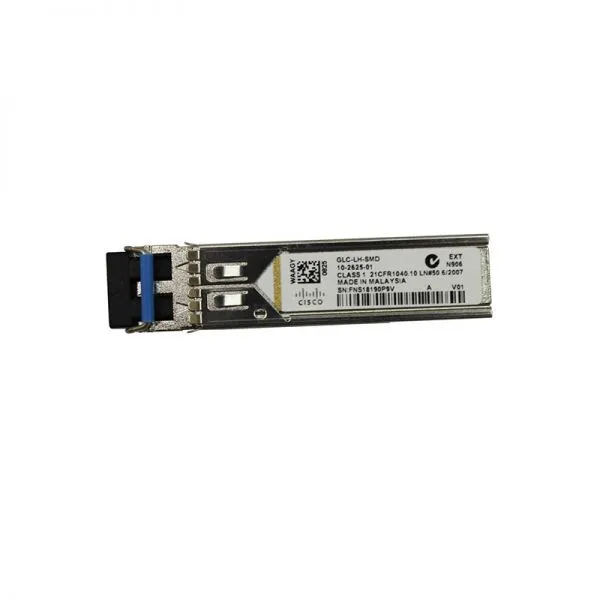

Cisco GLC-LH-SMD 1000BASE-LX/LH SFP is made for Both Multimode and Single-Mode
Fibers.The 1000BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX
standard, operates on standard single-mode fiber-optic link spans of up to 10 km and up to
550 m on any multimode fibers. When used over legacy multimode fiber type, the transmitter
should be coupled through a mode conditioning patch cable. 1300-nm wavelength, extended
operating temperature range and DOM support, dual LC/PC connector.
GLC-LH-SMD Specification
SFP Port Cabling Specifications | |||||
Product | Wavelength (nm) | Fiber Type | Core Size (μm) | Modal Bandwidth (MHz* Km)*** | Operating Distance (m) |
1000BASE-SX | 850 | MMF | 62.5 | 160 (FDDI-grade) | 220 (722 ft) |
62.5 | 200 (OM1) | 275 (902 ft) | |||
50 | 400 (400/400) | 500 (1,640 ft) | |||
50 | 500 (OM2) | 550 (1,804 ft) | |||
50 | 2000 (OM3) | 1000 (3281 ft) | |||
1000BASE-LX/LH | 1310 | MMF* | 62.5 | 500 | 550 (1,804 ft) |
50 | 400 | 550 (1,804 ft) | |||
50 | 500 | 550 (1,804 ft) | |||
SMF | -** | - | 10,000 (32,821 ft) | ||
1000BASE-EX | 1310 | SMF | -** | - | 40,000 (131,234 ft) |
1000BASE-ZX (GLC-ZX-SMD) | 1550 | SMF | - | - | Approximately 70 km depending on link loss |
1000BASE-BX-U | 1310 | SMF | -** | - | 10,000 (32,821 ft) |
1000BASE-BX-D | 1490 | SMF | -** | - | 10,000 (32,821 ft) |
