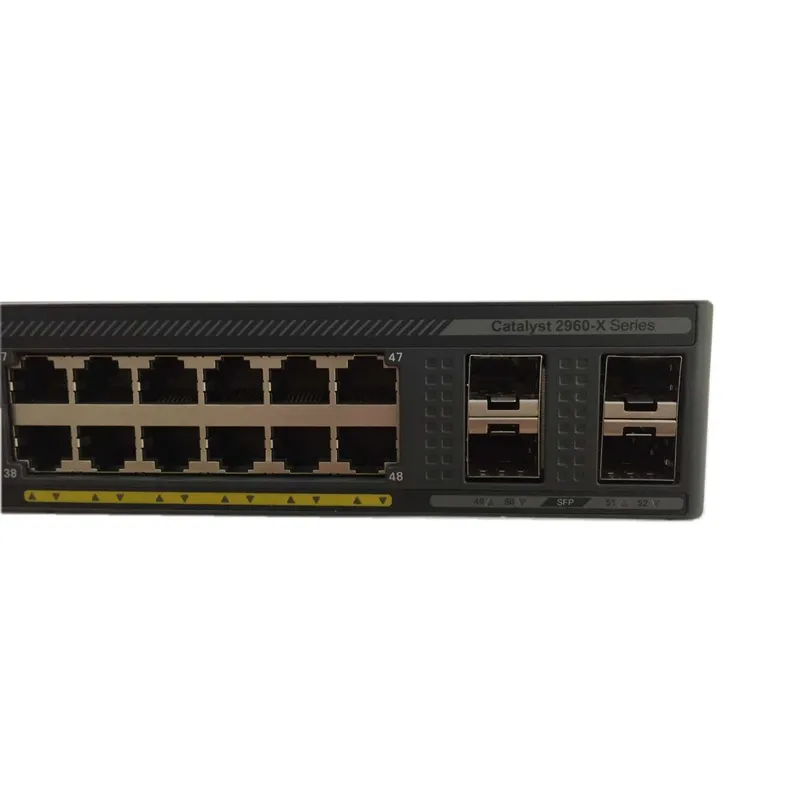

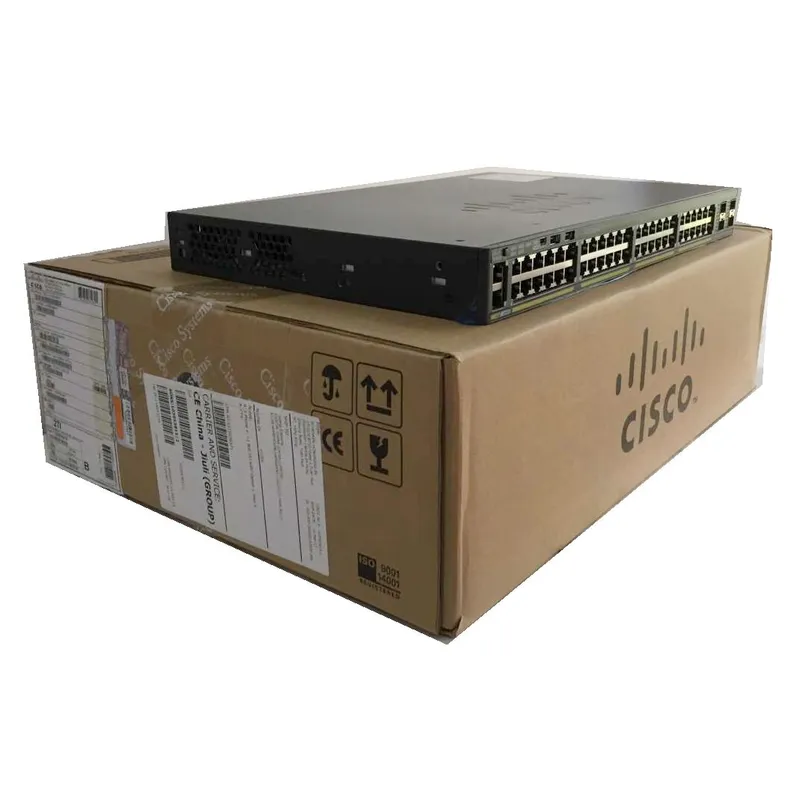

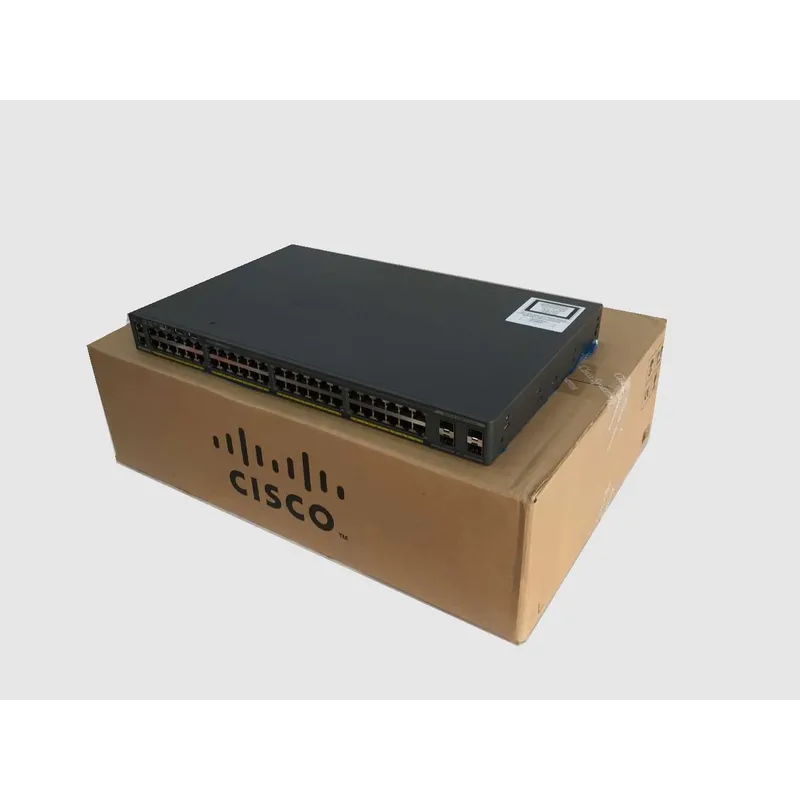

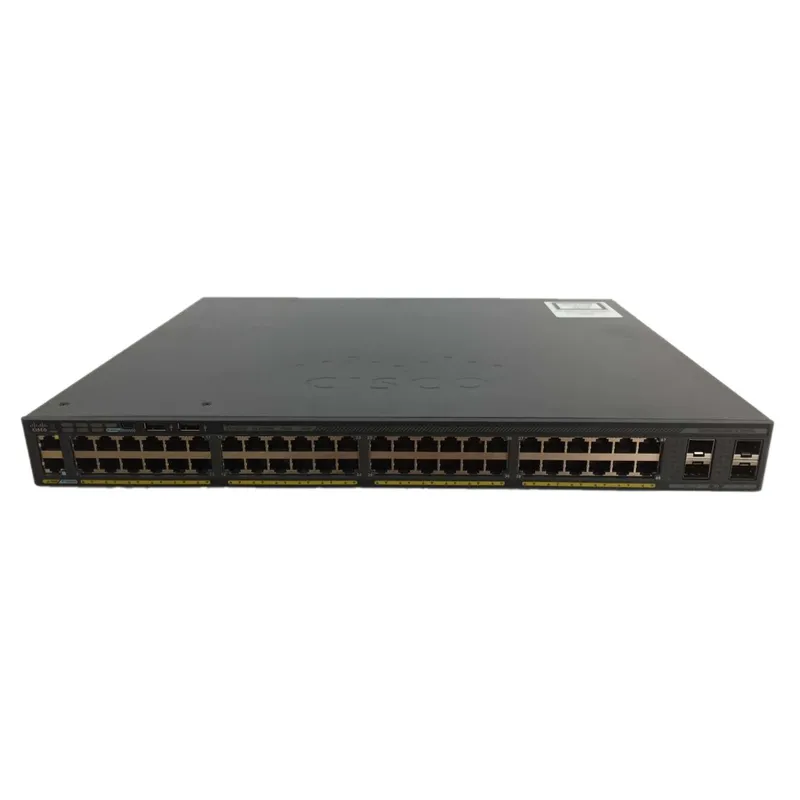

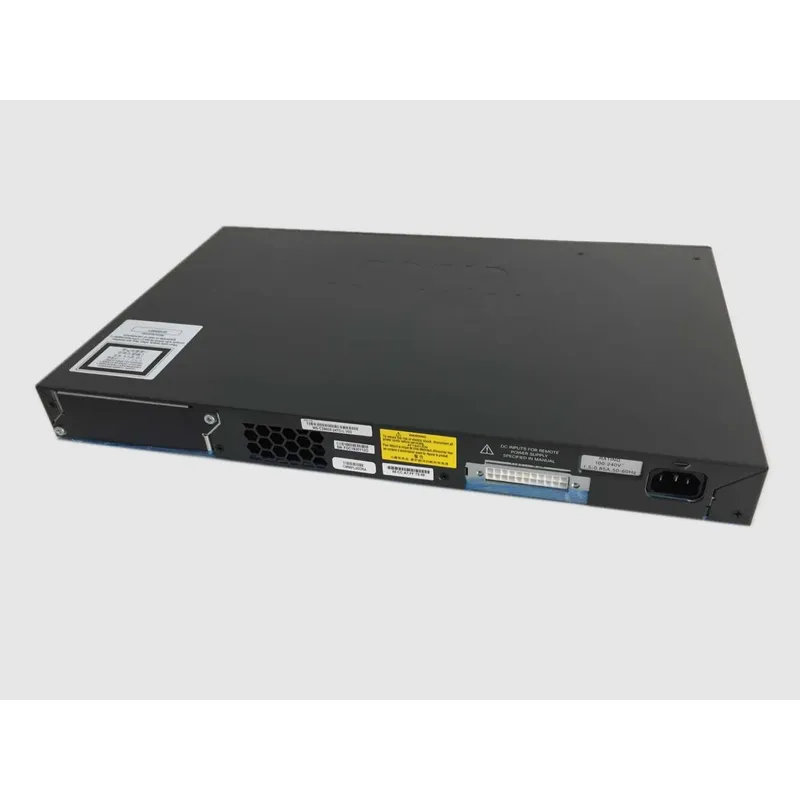

WS-C2960X-48LPS-L

WS-C2960X-48LPS-L is Catalyst 2960-X 48 GigE PoE 370W, 4 x 1G SFP, LAN Base



Description

WS-C2960X-48LPS-L Overview


Cisco Catalyst 2960X series 48 ports LAN Base stackable switch delivers Power

over Ethernet Plus(PoE+) that supports up to 370W of PoE budget for 12 ports

with 30W per port, or 24 ports with 15.4W per port or 48 ports with 7.4W per

port.


WS-C2960X-48LPS-L Specification

WS-C2960X-48LPS-L Specification

Enclosure type

Rack-mountable - 1U

Ports

48 x 10/100/1000 + 4 x 1G SFP

Network management

Interface

10/100 Mbps Ethernet (RJ-45)

Available PoE Power

370W

Forwarding bandwidth

(Gbps)

108Gbps

Maximum stacking number

8

Stack Bandwidth

80 G

Forwarding Performance

107.1Mpps

Switching bandwidth

216Gbps

Maximum active VLANs

1023

MAC Address Table Size

16K (default)

CPU

APM86392 600MHz dual core

RAM

256 MB

Flash Memory

64 MB

Status Indicators

Per-port status:

Link integrity, disabled,   activity, speed, and full duplex System status:

System, RPS, Stack link   status, link duplex, PoE, and link speed

Expansion / Connectivity

Console ports

USB (Type-B), Ethernet (RJ-45)

Stacking cable

Optional

Power Redundancy

Option (PWR-RPS2300)

Voltage range (Auto)

110V-240V

Power Consumption

Operational

0.49KVA

Miscellaneous

Width

17.5 Inches (44.5 cm)

Depth

14.5 Inches (36.8 cm)

Height

1.75 Inches (4.5 cm)

Weight

12.9 lb (5.8 Kg)

Package Weight

23.48 lb (10.65 Kg)

Rack Mounting Kit

optional

 MTBF in hours

276,870

Compliant Standards

  ● IEEE 802.1D Spanning Tree Protocol
  ● IEEE 802.1p CoS Prioritization
  ● IEEE 802.1Q VLAN
  ● IEEE 802.1s
  ● IEEE 802.1w
  ● IEEE 802.1X
  ● IEEE 802.1ab (LLDP)
  ● IEEE 802.3ad
  ● IEEE 802.3af and IEEE 802.3at
  ● IEEE 802.3ah (100BASE-X single/multimode fiber only)
  ● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

  ● IEEE 802.3 10BASE-T
  ● IEEE 802.3u 100BASE-TX
  ● IEEE 802.3ab 1000BASE-T
  ● IEEE 802.3z 1000BASE-X
  ● RMON I and II standards
  ● SNMP v1, v2c, and v3
  ● IEEE 802.3az
  ● IEEE 802.1ax

System software / license

System software

IOS LAN BASE

license

NERGY-MGT-100-K9, EW-DO-100-DE

features

●Jumbo Frames

●VLANS

●Voice Vlan

●VTPv2

●CDPv2

●LLDP

●802.3ad LACP

●PVST/PVST+

●802.1W/802.1S

●Port Fast/Uplink Fast

●port CoS Trust and Override

●Scheduling

●Priority Queuing

●Configure CoS Priority Queues

●Weighted Tail Drop

●DSCP transparency

Network security

●SSH, SSL and SCP

●RADIUS and TACACS+

●SNMPv3 crypto

●802.1x

●802.1x Accounting / MIB

●802.1x w/ port security

●802.1x w/Voice VLAN

●802.1x Guest VLAN

●802.1x VLAN assignment

●802.1x MAC-Auth Bypass

●BPDU/Root Guard

●Port Security

●Private VALN Edge

●Storm Control

●Block unknown unicast and multicast

●IGMP Snooping

●IGMP Filter/Throttle

Management and

Troubleshooting

●Auto-MDOX

●TDR

●UDLD

●IP SLA Responder

●layer 2 / IP Traceroute

●SPAN

●RSPAN

●Express Setup

●Device Manager

●Cisco Network Assistant

●Smartports + Advisor

●Troubleshooting Advisor

●Drag-and-drop Cisco IOS Upgrade

●IP Address DHCP

●Autoinstall with saved configuration

●Configuration Replace

●DHCP Auto Image Upgrade

●DHCP Port Based Allocation

●Error Disable MIB

Environmental Ranges

Operating temperature

up to 5000 ft (1500 m)

23ºF to 113ºF

(-5ºC to 45ºC)

Operating temperature

up to 10,000 ft (3000 m)

23ºF to 104ºF

(-5ºC to 40ºC)

Short-term exception at

sea level

23ºF to 131ºF

(-5ºC to 55ºC)

Short-term exception up

to 5000 feet (1500 m)

23ºF to 122ºF

(-5ºC to 50ºC)

Short-term exception up

to 10,000 feet (3000 m)

23ºF to 113ºF

(-5ºC to 45ºC)

Short-term exception up

to 13,000 feet (4000 m)

23º to 104ºF

(-5ºC to 40ºC)

Storage temperature up

to 15,000 feet (4573 m)

-13º to 158ºF

(-25º to 70ºC)

Operating altitude

Up to 10,000 Feet

(Up to 3000 Meters)

Storage altitude

Up to 13,000

(Up to 4000 Meters)

Operating relative humidity

10% to 95% noncondensing

Storage relative humidity

10% to 95% noncondensing



The Accessories

Table 2 shows some accessories of WS-C2960X-48LPS-L.

Models

Description

C2960X-STACK

Catalyst 2960-X FlexStack Plus Stacking Module

CAB-STK-E-0.5M

Cisco FlexStack Stacking Cables

GLC-LH-SMD

Cisco  GLC-LH-SMD   1000BASE-LX / LH SFP  transceiver  module,  MMF / SMF ,

1310nm, DOM

GLC-SX-MMD

1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

CAB-CONSOLE-RJ45

Console Cable 6ft with RJ45 and DB9F

CAB-CONSOLE-USB

Console Cable 6 ft with USB Type A and mini-B
