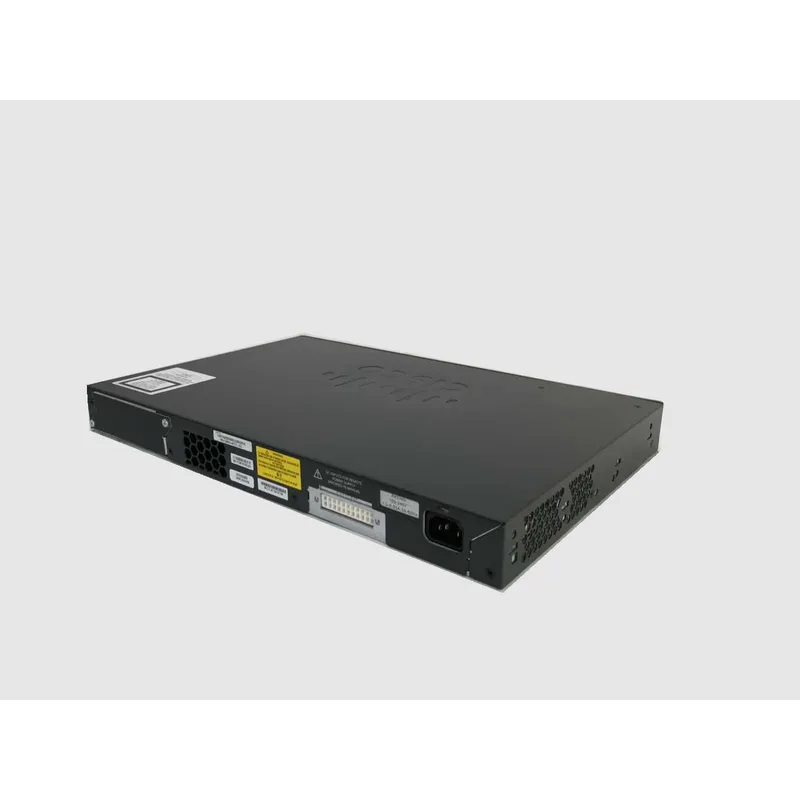

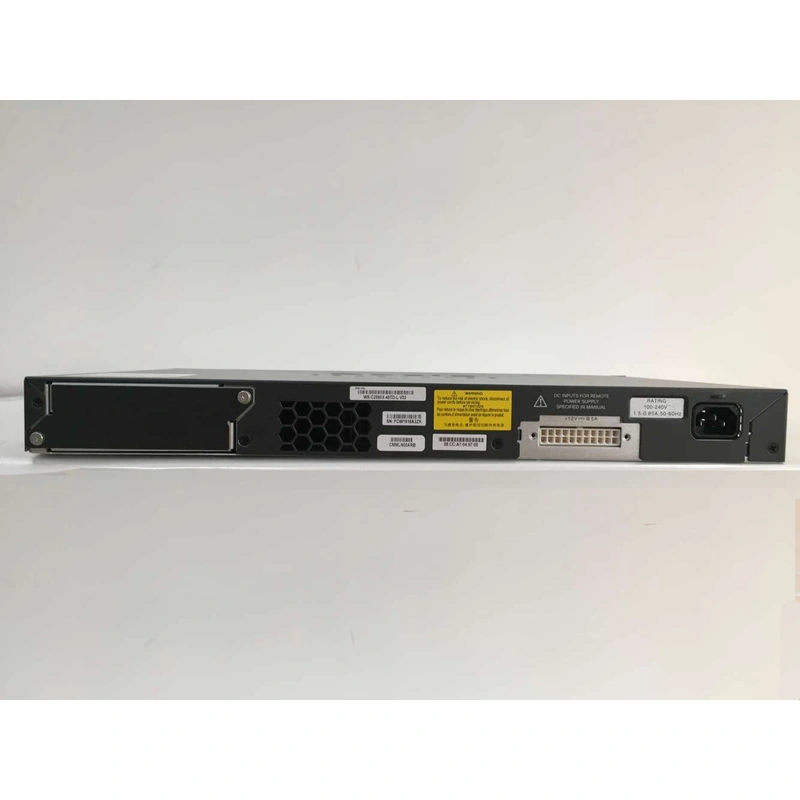

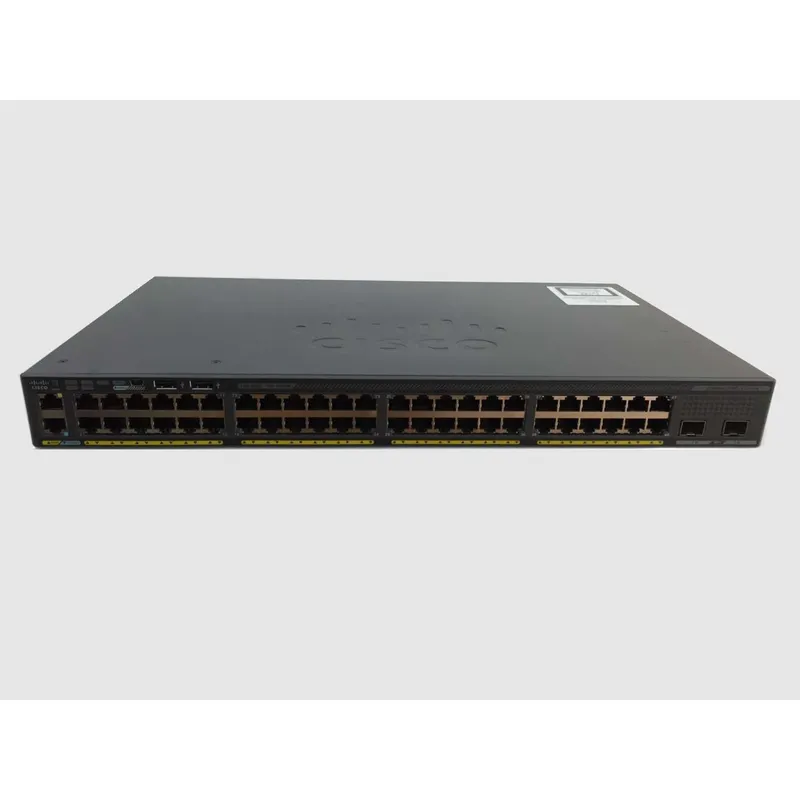

WS-C2960X-48LPD-L Overview
Cisco catalyst 2960X-48LPD-L LAN Base Layer 2 stackable switch is comprised of
48 Ethernet 10/100/1000 ports with POE+ and 2 x 10G SFP+ uplink interfaces.
WS-C2960X-48LPD-L Specification
WS-C2960X-48LPD-L Specification | |
Enclosure type | Rack-mountable - 1U |
Ports | 48 x 10/100/1000 + 2 x 10G SFP+ |
Network management Interface | 10/100 Mbps Ethernet (RJ-45) |
Available PoE Power | 370W |
Forwarding bandwidth (Gbps) | 108Gbps |
Maximum stacking number | 8 |
Stack Bandwidth | 80 G |
Forwarding Performance | 130.9Mpps |
Switching bandwidth | 216Gbps |
Maximum active VLANs | 1023 |
MAC Address Table Size | 16K (default) |
CPU | APM86392 600MHz dual core |
RAM | 256 MB |
Flash Memory | 64 MB |
Status Indicators | Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed |
Expansion / Connectivity | |
Console ports | USB (Type-B), Ethernet (RJ-45) |
Stacking cable | Optional |
Power Redundancy | Option (PWR-RPS2300) |
Voltage range (Auto) | 110V-240V |
Power Consumption Operational | 0.48KVA |
Miscellaneous | |
Width | 17.5 Inches (44.5 cm) |
Depth | 14.5 Inches (36.8 cm) |
Height | 1.75 Inches (4.5 cm) |
Weight | 12.9 lb (5.9 Kg) |
Package Weight | 23.48 lb (10.65 Kg) |
Rack Mounting Kit | optional |
MTBF in hours | 277,960 |
Compliant Standards | ● IEEE 802.1D Spanning Tree Protocol ● IEEE 802.3 10BASE-T |
System software / license | |
System software | IOS LAN BASE |
license | NERGY-MGT-100-K9, EW-DO-100-DE |
features | ●Jumbo Frames ●VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ●802.3ad LACP ●PVST/PVST+ ●802.1W/802.1S ●Port Fast/Uplink Fast ●port CoS Trust and Override ●Scheduling ●Priority Queuing ●Configure CoS Priority Queues ●Weighted Tail Drop ●DSCP transparency |
Network security | ●SSH, SSL and SCP ●RADIUS and TACACS+ ●SNMPv3 crypto ●802.1x ●802.1x Accounting / MIB ●802.1x w/ port security ●802.1x w/Voice VLAN ●802.1x Guest VLAN ●802.1x VLAN assignment ●802.1x MAC-Auth Bypass ●BPDU/Root Guard ●Port Security ●Private VALN Edge ●Storm Control ●Block unknown unicast and multicast ●IGMP Snooping ●IGMP Filter/Throttle |
Management and Troubleshooting | ●Auto-MDOX ●TDR ●UDLD ●IP SLA Responder ●layer 2 / IP Traceroute ●SPAN ●RSPAN ●Express Setup ●Device Manager ●Cisco Network Assistant ●Smartports + Advisor ●Troubleshooting Advisor ●Drag-and-drop Cisco IOS Upgrade ●IP Address DHCP ●Autoinstall with saved configuration ●Configuration Replace ●DHCP Auto Image Upgrade ●DHCP Port Based Allocation ●Error Disable MIB |
Environmental Ranges | |
Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF (-5ºC to 45ºC) |
Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to 40ºC) |
Short-term exception at sea level | 23ºF to 131ºF (-5ºC to 55ºC) |
Short-term exception up to 5000 feet (1500 m) | 23ºF to 122ºF (-5ºC to 50ºC) |
Short-term exception up to 10,000 feet (3000 m) | 23ºF to 113ºF (-5ºC to 45ºC) |
Short-term exception up to 13,000 feet (4000 m) | 23º to 104ºF (-5ºC to 40ºC) |
Storage temperature up to 15,000 feet (4573 m) | -13º to 158ºF (-25º to 70ºC) |
Operating altitude | Up to 10,000 Feet (Up to 3000 Meters) |
Storage altitude | Up to 13,000 (Up to 4000 Meters) |
Operating relative humidity | 10% to 95% noncondensing |
Storage relative humidity | 10% to 95% noncondensing |
The Accessories
Table 2 shows some accessories of WS-C2960X-48LPD-L.
Models | Description |
Catalyst 2960-X FlexStack Plus Stacking Module | |
Cisco FlexStack Stacking Cables | |
Cisco GLC-LH-SMD 1000BASE-LX / LH SFP transceiver module, MMF / SMF , 1310nm, DOM | |
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM | |
Console Cable 6ft with RJ45 and DB9F | |
Console Cable 6 ft with USB Type A and mini-B |
