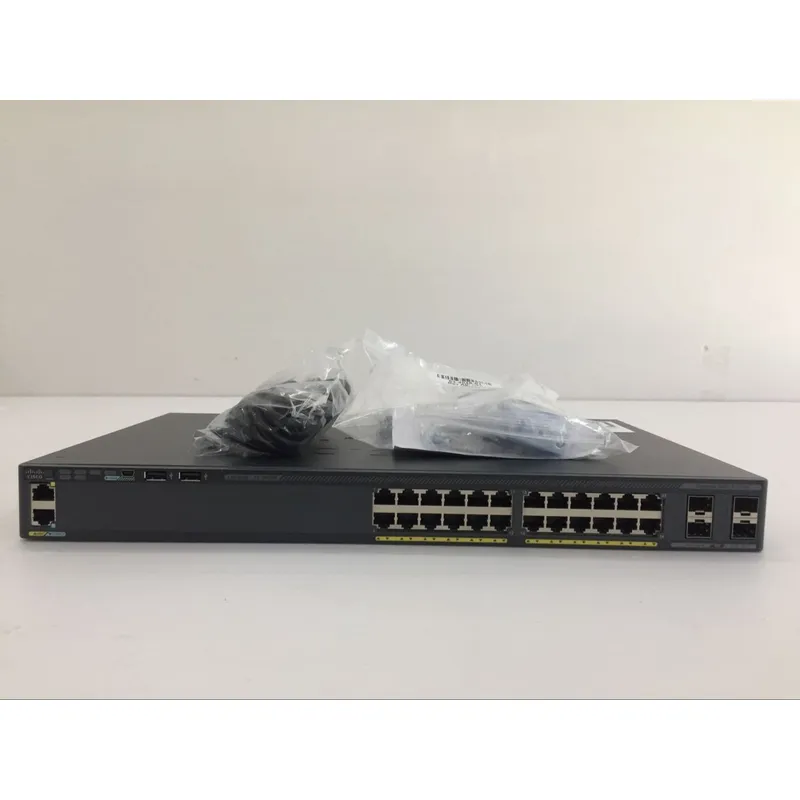

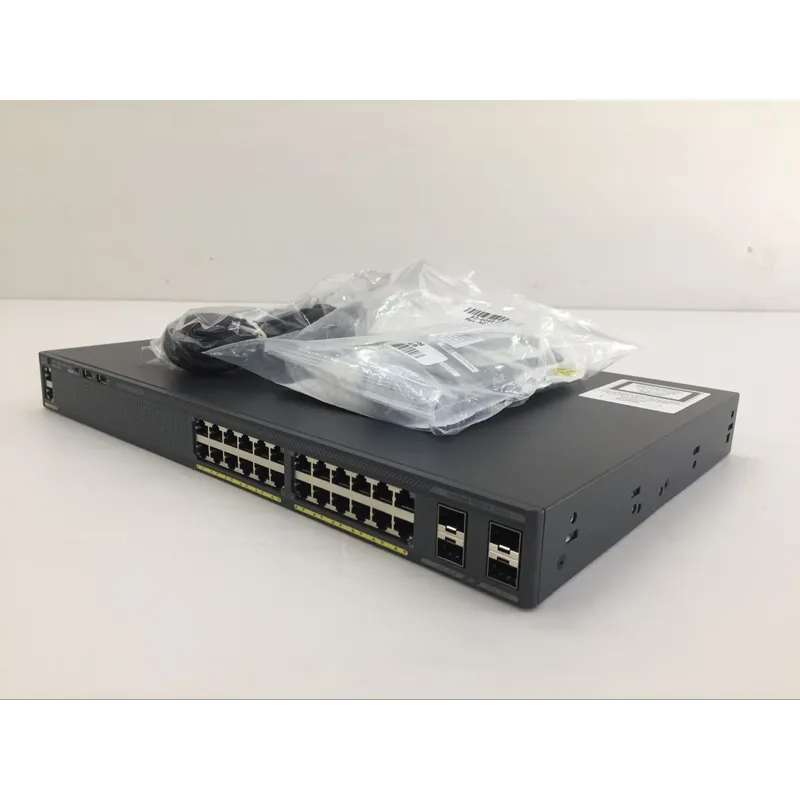

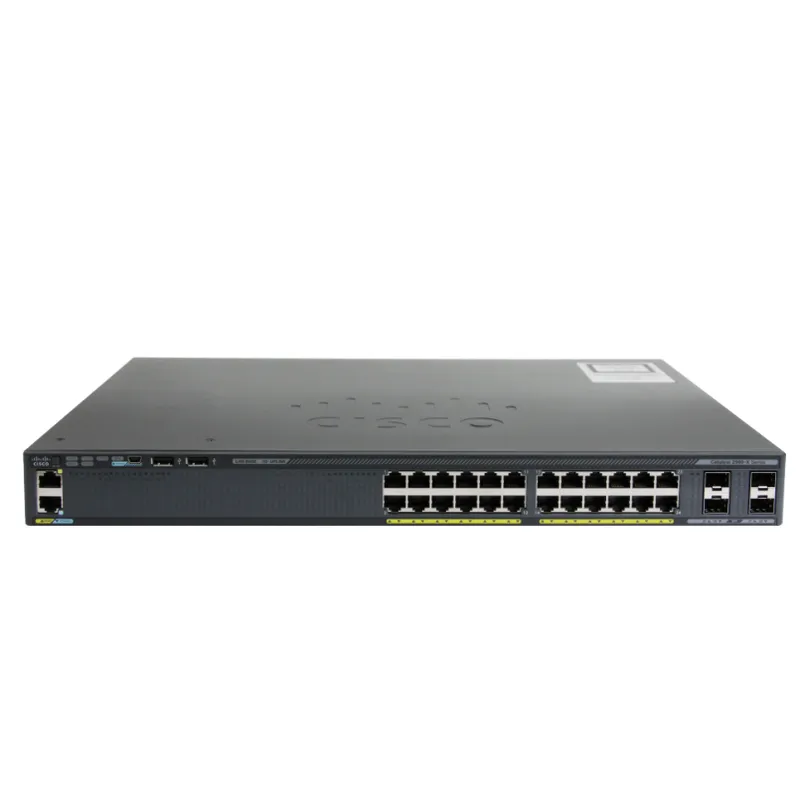

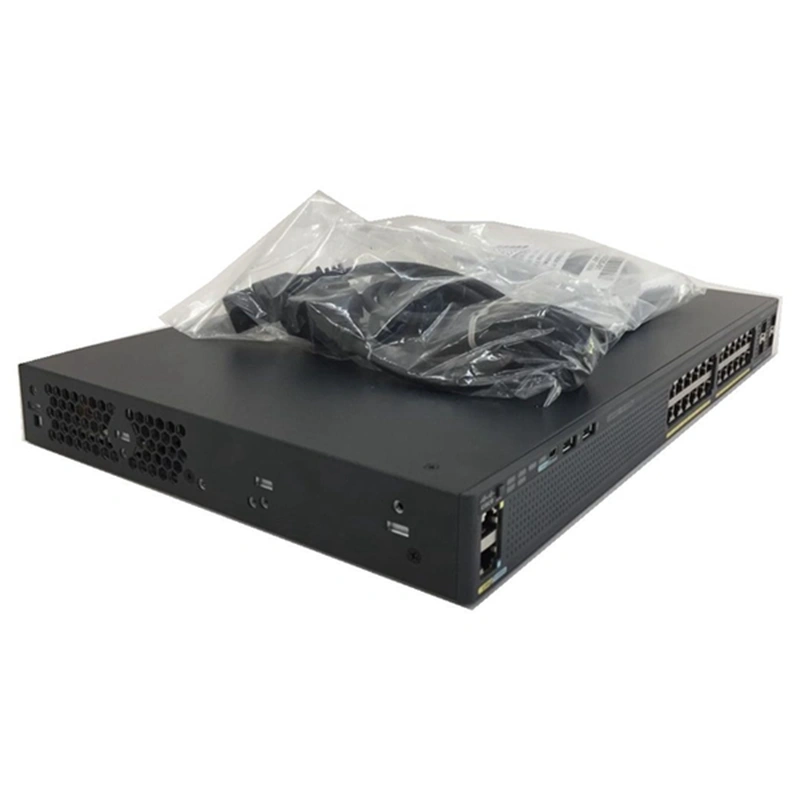

WS-C2960X-24PS-L Overview
Cisco catalyst 2960X-24PS-L LAN Base stackable Layer 2 switch is comprised of
24 * 10/100/1000 Ethernet ports with POE+ and 4 * 1G SFP uplink interfaces.
The industry standard IEEE802.3at PoE+ provides up to 30W per port.
WS-C2960X-24PS-L Specification
WS-C2960X-24PS-L Specification | |
General | |
model info: | WS-C2960X-24PS-L |
enclosure type | Rack-mountable - 1U |
Ports | 24 x 10/100/1000 + 4 x 1G SFP |
Network management Interface | 10/100 Mbps Ethernet (RJ-45) |
Available PoE Power | 370W |
Forwarding bandwidth (Gbps) | 108Gbps |
Maximum stacking number | 8 |
Stack Bandwidth | 80G |
Forwarding Performance | 71.4Mpps |
Switching bandwidth | 216Gbps |
Maximum active VLANs | 1023 |
MAC Address Table Size | 16K (default) |
CPU | APM86392 600MHz dual core |
RAM | 512 MB |
Flash Memory | 128 MB |
Status Indicators | Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed |
Expansion / Connectivity | |
Console ports | USB (Type-B), Ethernet (RJ-45) |
Stacking cable | Optional |
Power Redundancy | Option (PWR-RPS2300) |
Voltage range (Auto) | 110V-240V |
Power Consumption Operational | 0.49KVA |
Miscellaneous | |
Width | 17.5 Inches (44.5 cm) |
Depth | 14.5 Inches (36.8 cm) |
Height | 1.75 Inches (4.5 cm) |
Package Weight | 23.48 Pounds (10.65Kg) |
Weight | 12.8 Pounds (5.8 Kg) |
Rack Mounting Kit | optional |
MTBF in hours | 324,280 |
Compliant Standards | ● IEEE 802.1D Spanning Tree Protocol ● IEEE 802.1p CoS Prioritization ● IEEE 802.1Q VLAN ● IEEE 802.1s ● IEEE 802.1w ● IEEE 802.1X ● IEEE 802.1ab (LLDP) ● IEEE 802.3ad ● IEEE 802.3af and IEEE 802.3at ● IEEE 802.3ah (100BASE-X single/multimode fiber only) ● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports ● IEEE 802.3 10BASE-T ● IEEE 802.3u 100BASE-TX ● IEEE 802.3ab 1000BASE-T ● IEEE 802.3z 1000BASE-X ● RMON I and II standards ● SNMP v1, v2c, and v3 ● IEEE 802.3az ● IEEE 802.3ae 10Gigabit Ethernet |
System software / license | |
System software | IOS LAN BASE |
license | NERGY-MGT-100-K9, EW-DO-100-DE |
features | ●RPS Support ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP ● PVST/PVST+ ● 802.1W/802.1S ● Port Fast/Uplink Fast ● port CoS Trust and Override ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ● Weighted Tail Drop ● DSCP transparency |
Network security | ● SSH, SSL and SCP ● RADIUS and TACACS+ ● SNMPv3 crypto ● 802.1x ● 802.1x Accounting / MIB ● 802.1x w/ port security ● 802.1x w/Voice VLAN ● 802.1x Guest VLAN ● 802.1x VLAN assignment ● 802.1x MAC-Auth Bypass ● BPDU/Root Guard ● Port Security ● Private VALN Edge ● Storm Control ● Block unknown unicast and multicast ● IGMP Snooping ● IGMP Filter/Throttle |
Management and Troubleshooting | ● Auto-MDOX ●TDR ● UDLD ● IP SLA Responder ● layer 2 / IP Traceroute ● SPAN ● RSPAN ● Express Setup ● Device Manager ● Cisco Network Assistant ● Smartports + Advisor ● Troubleshooting Advisor ● Drag-and-drop Cisco IOS Upgrade ● IP Address DHCP ● Autoinstall with saved configuration ● Configuration Replace ● DHCP Auto Image Upgrade ● DHCP Port Based Allocation ● Error Disable MIB |
Environmental Ranges | |
Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF |
Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF |
Short-term exception at sea level | 23ºF to 131ºF |
Short-term exception up to 5000 feet (1500 m) | 23ºF to 122ºF |
Short-term exception up to 10,000 feet (3000 m) | 23ºF to 113ºF |
Short-term exception up to 13,000 feet (4000 m) | 23º to 104ºF |
Storage temperature up to 15,000 feet (4573 m) | -13º to 158ºF |
Operating altitude | Up to 10,000 feet |
Storage altitude | Up to 13,000 feet |
Operating relative humidity | 10% to 95% noncondensing |
Storage relative humidity | 10% to 95% noncondensing |
This C2960X switch delivers stackable capacity that supports up to 8 switches
stacking with same 2960-X LAN base series. It also can stack up to 4 switches
stacking when mixed with 2960-S LAN base series switches.
The Accessories
Table 2 shows some accessories of WS-C2960X-24PS-L.
Models | Description |
Catalyst 2960-X FlexStack Plus Stacking Module | |
Cisco FlexStack Stacking Cables | |
Cisco GLC-LH-SMD 1000BASE-LX / LH SFP transceiver module, MMF / SMF , 1310nm, DOM | |
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM | |
Console Cable 6ft with RJ45 and DB9F | |
Console Cable 6 ft with USB Type A and mini-B |
