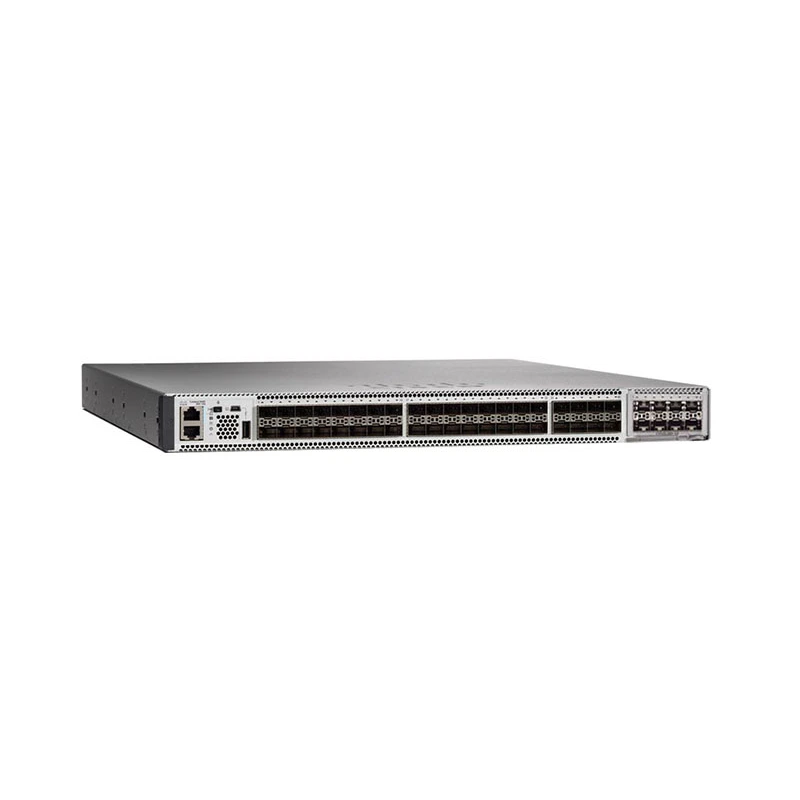

C9500-48X-E Overview
C9500-48X-E is Catalyst 9500 48-port 10G bundle, Network Essentials. The Cisco
Catalyst 9500 Series Switches are the next generation of enterprise-class core
and aggregation layer switches, supporting full programmability and serviceability.
Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed
core and aggregation enterprise switching platform, built for security, IoT, and cloud.
The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line
of switches targeted for the enterprise campus.
C9500-48X-E Specification
C9500-48X-E Specifications | |
Description | 40 10-Gigabit Ethernet SFP ports and an 8-Port 10-Gigabit Ethernet (SFP) network module on uplink ports; and two power supply slots |
Advanced Switching | Layer 3 |
Interface | 48 x 10 Gigabit SFP+ |
Edition | Network Essentials |
Switching capacity (full duplex) | 480 Gbps |
Forwarding rate | 720 Mpps |
The Accessories
Table 2 shows the recommended elements for the C9500-48X-E.
Category | Model (Description) |
SFP 10G Optics | (10GBASE-SR SFP Module, Enterprise-Class) |
(Cisco 10GBASE-ZR SFP10G Module for SMF) | |
| Network Modules | (Cisco Catalyst 9500 2 x 40GE Network Module) |
Power Supply | (950W AC Config 4 Power Supply front to back cooling) |
(950W AC Config 4 Power Supply front to back cooling) | |
Console Cables | CAB-CONSOLE-RJ45 (Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F) |
CAB-CONSOLE-USB (Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B) |
