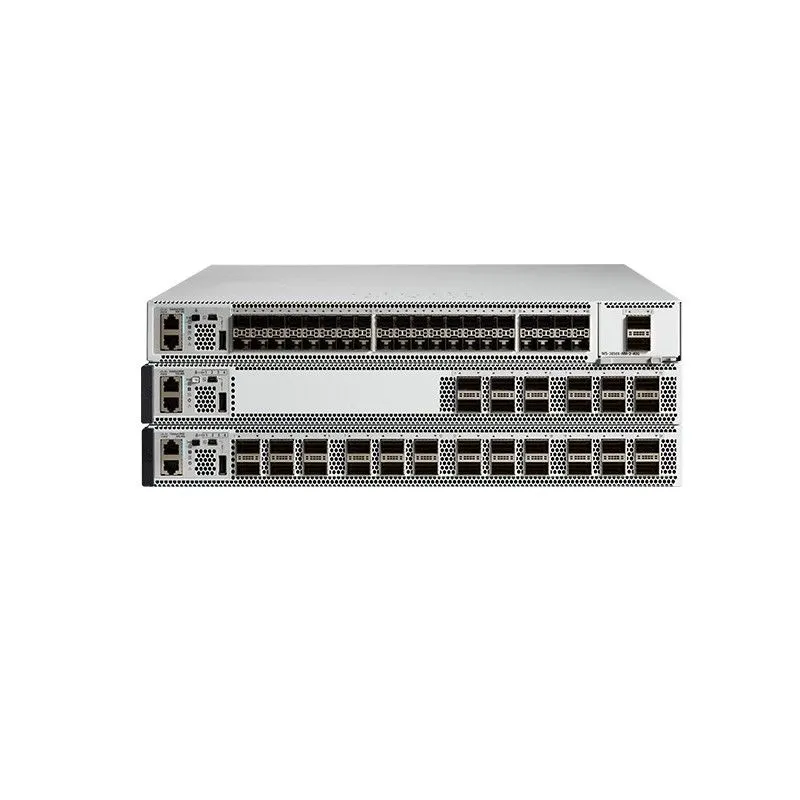

Cisco Switch Catalyst 9500L C9500-32C-A

C9500-32C-A Overview

C9500-32C-A is a Cisco Catalyst 9500 Series high performance 32-port 100G switch,

NW Adv. License. The Cisco Catalyst 9500 Series Switches are the next generation of

enterprise-class core and aggregation layer switches, supporting full programmability

and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead

purpose-built fixed core and aggregation enterprise switching platform, built for

security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built

40 Gigabit Ethernet line of switches targeted for the enterprise campus.

C9500-32C-A Specification

C9500-32C-A Specification
Performance specification
Switching capacity	Up to 6.4 Tbps
Forwarding rate	Up to 2 Bpps
Total number of MAC addresses	Up to 82,000
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes)	Up to 212,000 indirect + direct Up to 90,000 host/ARP
Total number of IPv6 routes	Up to 212,000 indirect + direct Up to 90,000 host
QoS ACL scale	Up to 16000
Security ACL scale	Up to 27000
FNF entries	Up to 98,000
DRAM	16 GB
Flash	16 GB
VLAN IDs	4000
Total Switched Virtual Interfaces (SVIs)	4000
Jumbo frame	9216 bytes
Power supply specification
Power Supply Selection	C9K-PWR-1600WAC-R or C9K-PWR-1600WDC-R
Dimensions, physical specification, weight, and MTBF
Dimensions (H x W x D)	1.73 x 17.5 x 21.2 in
Rack units (RU)	1 RU
Input voltage	90 to 264 VAC
Operating temperature	32° to 104°F (0° to 40°C)
Storage temperature	-4° to 149°F (-20° to 65°C)
Relative humidity operating and nonoperating noncondensing	Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95%
Altitude	Operation up to 13,000 feet at 40°C
MTBF (hours)	212,820

Product Details

Catalyst 9500 100/40-G 32-port switches: C9500-32C, C9500-32QC

· 32 ports of 100 G and 40 G with rich campus features

· Industry-first 100 G and 40 G enterprise-class switch

· High performance, QSFP+

· Secure segmentation with SD-Access

· MPLS L2/L3 VPNs, MVPN; flexible design templates

· Enhanced Limited Lifetime Warranty (E-LLW
