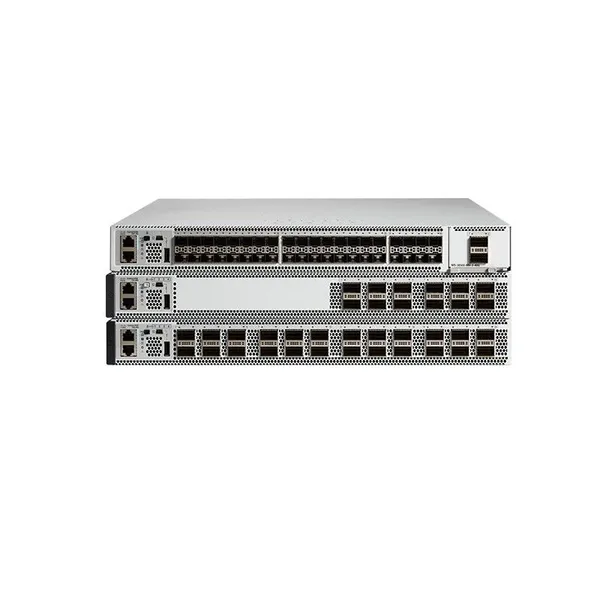

Cisco Switch Catalyst 9500 C9500-32C-E

C9500-32C-E

C9500-32C-E is a Cisco Catalyst 9500 Series high performance 32-port 100G switch, NW Ess.


Description

C9500-32C-E Overview


C9500-32C-A is a Cisco Catalyst 9500 Series high performance 32-port 100G switch,

NW Adv. License. The Cisco Catalyst 9500 Series Switches are the next generation of

enterprise-class core and aggregation layer switches, supporting full programmability

and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead

purpose-built fixed core and aggregation enterprise switching platform, built for

security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built

40 Gigabit Ethernet line of switches targeted for the enterprise campus.


C9500-32C-E Specification

C9500-32C-E Specification

Performance specification

Switching capacity

Up to 6.4 Tbps

Forwarding rate

Up to 2 Bpps

Total number of MAC addresses

Up to 82,000

Total number of IPv4 routes

(Address Resolution Protocol [ARP]

plus learned routes)

Up to 212,000 indirect + direct

Up to 90,000 host/ARP

Total number of IPv6 routes

Up to 212,000 indirect + direct

Up to 90,000 host

QoS ACL scale

Up to 16000

Security ACL scale

Up to 27000

FNF entries

Up to 98,000

DRAM

16 GB

Flash

16 GB

VLAN IDs

4000

Total Switched Virtual Interfaces (SVIs)

4000

Jumbo frame

9216 bytes

Power supply specification

Power Supply Selection

C9K-PWR-1600WAC-R orC9K-PWR-1600WDC-R

Dimensions, physical specification, weight, and MTBF

Dimensions (H x W x D)

1.73 x 17.5 x 21.2 in

Rack units (RU)

1 RU

Input voltage

90 to 264 VAC

Operating temperature

32° to 104°F (0° to 40°C)

Storage temperature

-4° to 149°F (-20° to 65°C)

Relative humidity operating and

nonoperating noncondensing

Ambient (noncondensing)   operating: 5% to 90%

Ambient (noncondensing)   nonoperating and storage:

5% to 95%

Altitude

Operation up to 13,000 feet at 40°C

MTBF (hours)

212,820





Product Details

Catalyst 9500 100/40-G 32-port switches: C9500-32C, C9500-32QC

· 32 ports of 100 G and 40 G with rich campus features

· Industry-first 100 G and 40 G enterprise-class switch

· High performance, QSFP+

· Secure segmentation with SD-Access

· MPLS L2/L3 VPNs, MVPN; flexible design templates

· Enhanced Limited Lifetime Warranty (E-LLW)
