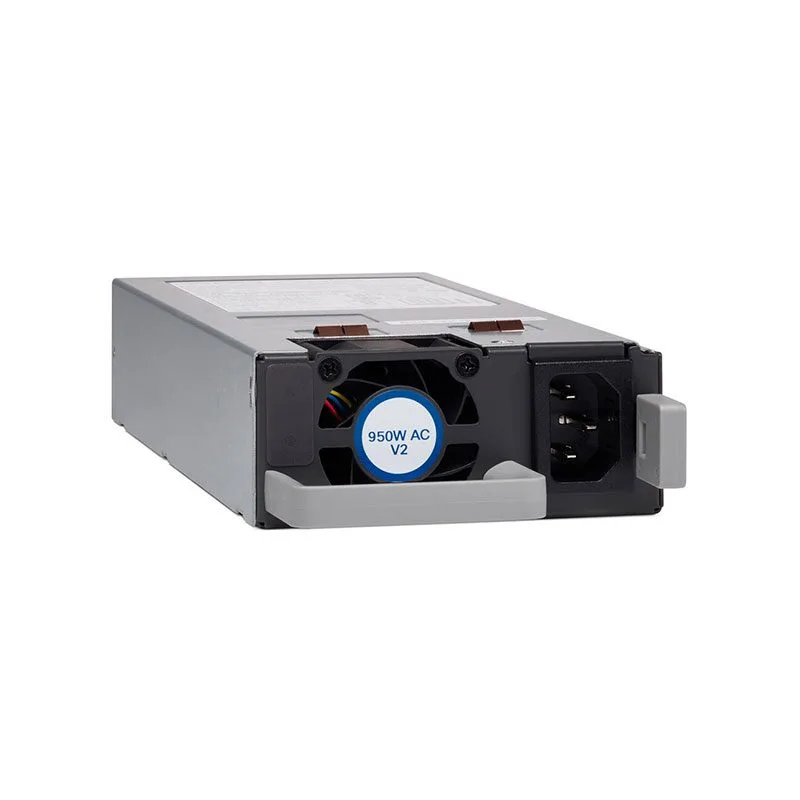

Cisco switch power supply PWR-C4-950WAC-R

PWR-C4-950WAC-R

PWR-C4-950WAC-R is Catalyst 9500 Power Supply,950W AC Config 4 Power Supply front to back cooling

Description

PWR-C4-950WAC-R Overview


950W AC Config 4 Power Supply front to back cooling.


PWR-C4-950WAC-R Specification

PWR-C4-950WAC-R Specifications

Description

950W AC Config 4 Power Supply front to back cooling

Power Supply Feature

Support in the Catalyst 9500 Series

AC power max rating

950W

System power consumption

850W max

Input-voltage range and frequency

AC 115 to 230 VAC, 50 to 60 Hz

Power supply efficiency

94%

Total output BTU

(Note: 1000 BTU/hr = 293W)

2901 BTU/hr (850W) max

Input current

AC 10A at 115VAC, 5 A at 230VAC

Output ratings

12V at 79A, 12V at 3A

Output holdup time

AC = 10 ms at maximum load

Power-supply input receptacles

AC IEC 60320 C16

Power cord rating

AC 15A
