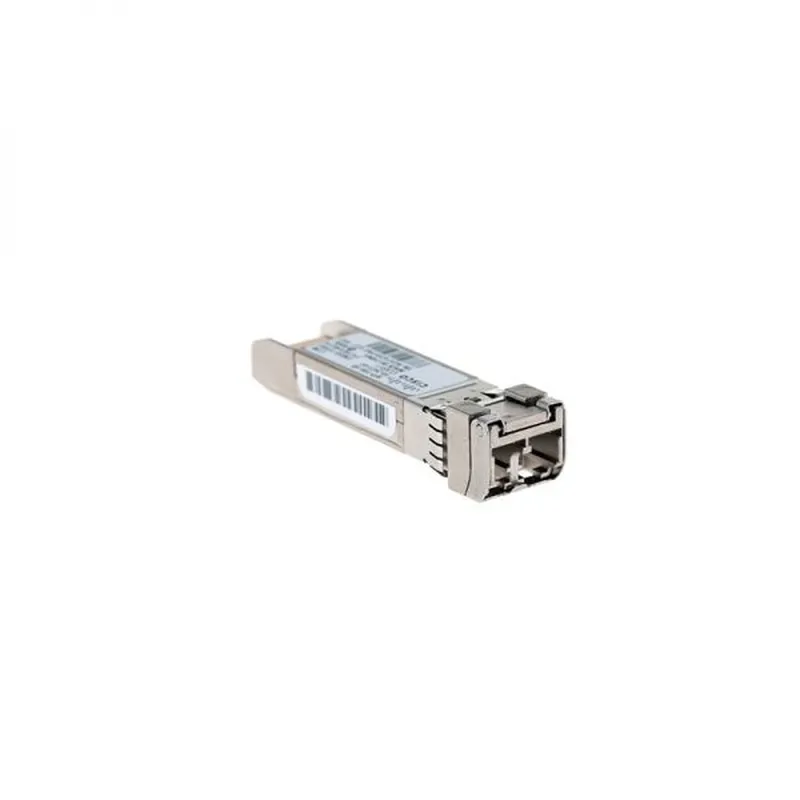

Cisco SFP-10G-ZR Overview
The Cisco SFP-10G-ZR is a multi-rate 10GBASE-ZR, 10GBASE-ZW,
and OTU2/OTU2e module. It supports link lengths of up to about
80 kilometers on standard Single-Mode Fiber (SMF, G.652).
This interface is not specified as part of the 10 Gigabit Ethernet
standard and is instead built according to Cisco specifications.
Cisco SFP-10G-ZR Specification
Cisco SFP-10G-ZR Specification | |
SFP+ port cabling specifications | |
Wavelength (nm) | 1550 |
Cable Type | SMF |
Core Size (Microns) | G.652 |
Modal Bandwidth (MHz*km) | - |
Cable Distance | 80km |
Optical transmit and receive specifications | |
Type | 10GBASE-ZR 1550nm SMF |
Transmit Power (dBm) | 4.0 (Max), 0 (Min) |
Receive Power (dBm) | -7 (Max), -24 (Min) |
Transmit and Receive Wavelength (nm) | 1530 to 1565 |
Other Specification | |
Bail Latch Color | Green |
Power Consumption (W) | 1.5 |
Operating Temperature Range | COM |
Dimensions | Dimensions (H x W x D): 8.5 x 13.4 x 56.5mm. Cisco SFP+ connectors typically weigh 75 grams or less. |
Operating Temperature Range | ● Commercial temperature range (COM): 0 to 70°C (32 to 158°F) ● Extended temperature range (EXT): -5 to 85°C (23 to 185°F) ● Industrial temperature range (IND): -40 to 85°C (-40 to 185°F) ● Storage temperature range: -40 to 85°C (-40 to 185°F) |
Platform support
Table 2 shows the recommend series of platforms.
● 7600 Series Router ● ASR-903 ● ASR 1000 Series Router ● ASR 9000 Series Router ● Catalyst 2960-S , 2960-X, and 2960-XR Series Switches ● Catalyst 3850 Series Switches |
● Catalyst 4500 and 4500-X Series Switches ● Nexus 2000 , 3000 Series Switches ● Nexus 9000 and 9500 (modular) Series Switches |
