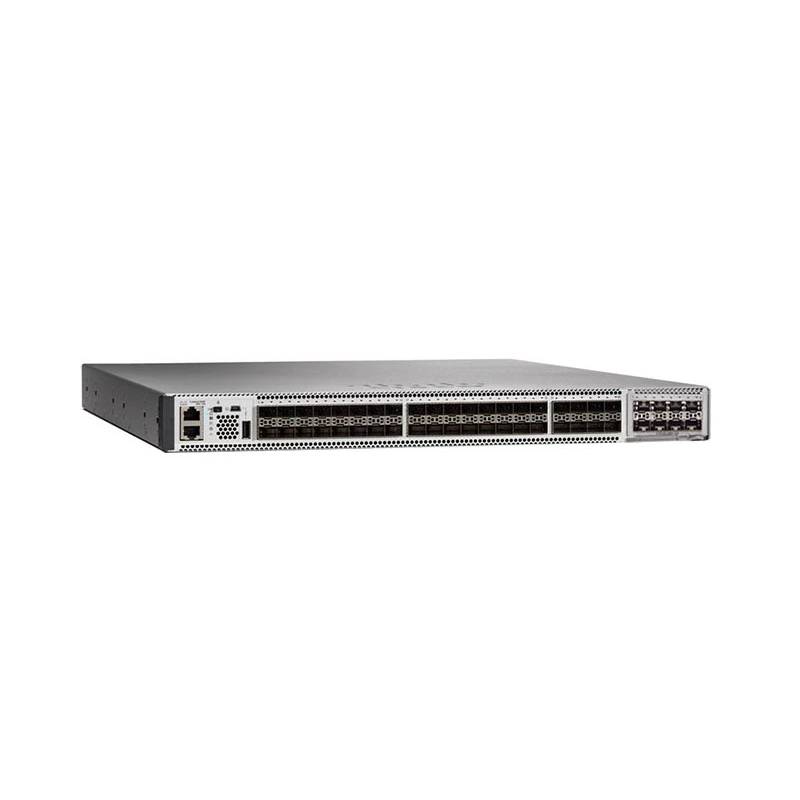

C9500-40X-2Q-E Overview
C9500-40X-2Q-E is Catalyst 9500 40 x 10G, 2 x 40G Bundle, Network Essentials.
The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class
core and aggregation layer switches, supporting full programmability and
serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead
purpose-built fixed core and aggregation enterprise switching platform, built for
security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built
40 Gigabit Ethernet line of switches targeted for the enterprise campus.
C9500-40X-2Q-E Specification
C9500-40X-2Q-E Specifications | |
Description | 40 10-Gigabit Ethernet SFP ports and a 2-Port 40-Gigabit Ethernet (QSFP) network module on uplink ports; and two power supply slots |
Device Type | Switch - 42 ports - L3 - managed |
Enclosure Type | Rack-mountable 1U |
Subtype | 10 Gigabit Ethernet |
Ports | 40 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP |
Switching capacity | Up to 960 Gbps |
Forwarding rate | 720 Mpps |
Dimensions (H x W x D) | 1.73 x 17.5 x 21.52 in |
The Accessories
Table 2 shows the recommended elements for the C9500-40X-2Q-E.
Category | Model (Description) |
SFP 10G Optics | (10GBASE-SR SFP Module, Enterprise-Class) |
(Cisco 10GBASE-ZR SFP10G Module for SMF) | |
| Network Modules | (Cisco Catalyst 9500 2 x 40GE Network Module) |
Power Supply | (950W AC Config 4 Power Supply front to back cooling) |
(950W AC Config 4 Power Supply front to back cooling) | |
Console Cables | CAB-CONSOLE-RJ45 (Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F) |
CAB-CONSOLE-USB (Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B) |
