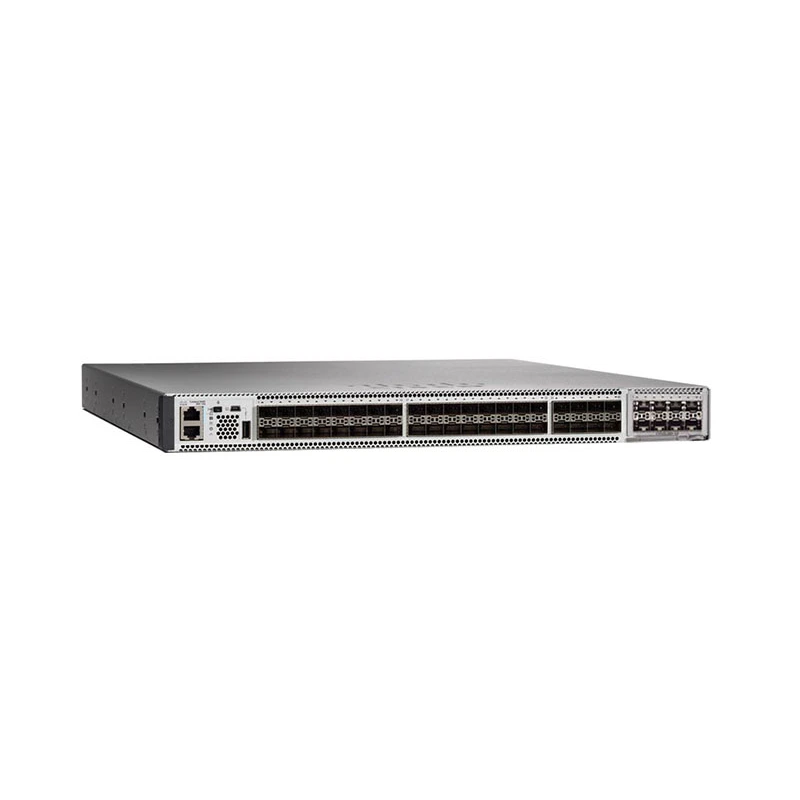

Cisco Switch Catalyst 9500 C9500-40X-2Q-A

C9500-40X-2Q-A

C9500-40X-2Q-A is Cisco Catalyst 9500 40 port 40 x 10G, 2 x 40G Bundle ,with Network Advantage.

Description

C9500-40X-2Q-A Overview


C9500-40X-2Q-A is Catalyst 9500 40 x 10G, 2 x 40G Bundle, Network Advantage.

The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class

core and aggregation layer switches, supporting full programmability and

serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead

purpose-built fixed core and aggregation enterprise switching platform, built for

security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built

40 Gigabit Ethernet line of switches targeted for the enterprise campus.


C9500-40X-2Q-A Specification

C9500-40X-2Q-A Specifications

Description

40 10-Gigabit Ethernet SFP ports and a 2-Port   40-Gigabit Ethernet (QSFP)

network module on uplink ports; and two power   supply slots

Device Type

Switch - 42 ports - L3 - managed

Enclosure Type

Rack-mountable 1U

Subtype

10 Gigabit Ethernet

Ports

40 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP

Switching capacity

Up to 960 Gbps

Forwarding rate

720 Mpps

Dimensions (H x W x D)

1.73 x 17.5 x 21.52 in


The Accessories

Table 2 shows the recommended elements for the C9500-40X-2Q-A.

                   Category

                                        Model (Description)


SFP 10G Optics

 SFP-10G-SR-S

(10GBASE-SR SFP Module, Enterprise-Class)

SFP-10G-ZR

(Cisco 10GBASE-ZR SFP10G Module for SMF)

Network Modules

C9500-NM-2Q

(Cisco Catalyst 9500 2 x 40GE Network Module)


Power Supply


PWR-C4-950WAC-R

(950W AC Config 4 Power Supply front to back cooling)

PWR-C4-950WAC-R/2

(950W AC Config 4 Power Supply front to back cooling)

Console Cables

CAB-CONSOLE-RJ45

(Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45   and DB9F)

CAB-CONSOLE-USB

(Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB  Type A and mini-B)
