WS-C2960XR-48TS-I

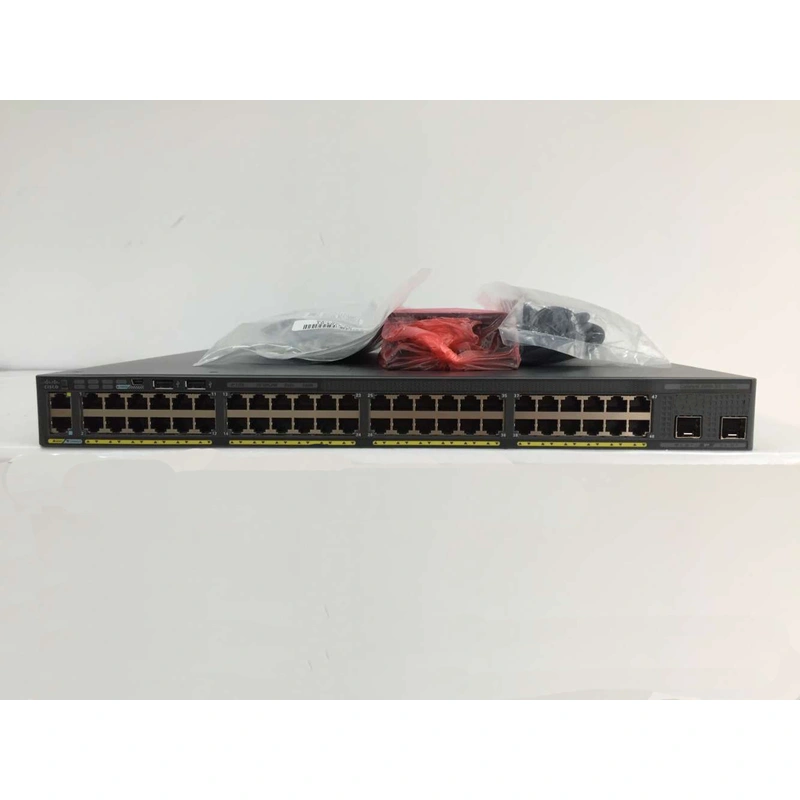

WS-C2960XR-48TS-I is one of 2960-XR switches, IP Lite switch, supporting forty-eight 10/100/1000 Ethernet ports and four 1G SFP uplinks.

Description

WS-C2960XR-48TS-I Overview


Cisco Catalyst 2960-XR series switches offer power resiliency with optional dual

field-replaceable power supplies and IP Lite Cisco IOS software with dynamic

routing and Layer 3 features. WS-C2960XR-48TS-I is one of 2960-XR switches,

IP Lite switch, supporting forty-eight 10/100/1000 Ethernet ports and four 1G

SFP uplinks. IP Lite Image enables basic access layer 3 routing features, such

as RIPV1, V2, OSPF stub, EIGRP stub, HSRP, VRRP, PIM stub, etc.


WS-C2960XR-48TS-I Specification

WS-C2960XR-48TS-I Specification

Enclosure type

Rack-mountable - 1U

Ports

48 x 10/100/1000 + 4 x 1G SFP

Network management

Interface

10/100 Mbps Ethernet (RJ-45)

Available PoE Power

None

Forwarding bandwidth

(Gbps)

108Gbps

Maximum stacking number

8

Stack Bandwidth

80G

Forwarding Performance

107.1Mpps

Switching bandwidth

216Gbps

Maximum active VLANs

1023

MAC Address Table Size

16K (default)

CPU

APM86392 600MHz dual core

RAM

512 MB

Flash Memory

128 MB

Status Indicators

  ● Per-port status: Link integrity, disabled,   activity, speed, and full duplex
  ● System status: System, RPS, Stack link status, link duplex,

     and link speed

Expansion / Connectivity

Console ports

USB (Type-B), Ethernet (RJ-45)

Expansion Slot(s)

1 FlexStack-Plus slot and 1 power redundant slot

Stack Modules

C2960X-STACK

Stacking cable

  ● CAB-STK-E-0.5M FlexStack-Plus stacking cable   with a 0.5 m length
  ● CAB-STK-E-1M FlexStack-Plus stacking cable with a 1.0 m length
  ● CAB-STK-E-3M FlexStack-Plus stacking cable with a 3.0 m length

Power supply

PWR-C2-250WAC

Power Device

Power supply - redundant - plug-in module

Power Redundancy

optional

Voltage range (Auto)

110V-240V

Power Consumption

Operational

0.046kVA

Miscellaneous

Width

17.5 Inches (44.5 cm)

Depth

16 Inches (40.8 cm)

Height

1.75 Inches (4.45 cm)

Weight

13.2 Pounds (6.0Kg)

Package Weight

38.56 Pounds (17.49 Kg)

Rack Mounting Kit

Optional

 MTBF in hours

438,130

Compliant Standards

● IEEE 802.1D Spanning Tree Protocol
  ● IEEE 802.1p CoS Prioritization
  ● IEEE 802.1Q VLAN
  ● IEEE 802.1s
  ● IEEE 802.1w
  ● IEEE 802.1X
  ● IEEE 802.1ab (LLDP)
  ● IEEE 802.3ad
  ● IEEE 802.3af and IEEE 802.3at
  ● IEEE 802.3ah (100BASE-X single/multimode fiber only)
  ● IEEE 802.3x full duplex on 10BASE-T,

     100BASE-TX, and 1000BASE-T ports
  ● IEEE 802.3 10BASE-T
  ● IEEE 802.3u 100BASE-TX
  ● IEEE 802.3ab 1000BASE-T
  ● IEEE 802.3z 1000BASE-X
  ● RMON I and II standards
  ● SNMP v1, v2c, and v3
  ● IEEE 802.3az
  ● IEEE 802.3ae 10Gigabit Ethernet
  ● IEEE 802.1ax

System software / license

System software

IOS IP Lite

license

ENERGY-MGMT, ENERGY-MGT-100-K9

features

  ● IP unicast routing protocols (Static, Routing Information Protocol

     Version 1 [RIPv1], RIPv2, RIPng, and EIGRP-Stub)

  ● Advanced IP unicast routing protocols (OSPF for Routed Access)
  ● EIGRPv3-Stub and PIMv6-Stub are supported as a part of the IPv6

    routing suite.
  ● Equal-cost routing
  ● Policy-based routing (PBR)
  ● Hot Standby Routing Protocol (HSRP) and Virtual Router

     Redundancy   Protocol (VRRP)

  ● Protocol Independent Multicast (PIM)

Network security

● MAC-based VLAN assignment   enables ● Cisco TrustSec uses
  ● Comprehensive 802.1X ● IPv6 First-Hop Security
  ● Device Sensor and Device Classifier

● Cisco Trust   Anchor Technology
  ● Cisco Threat Defense ● Private VLANs
  ● Unicast Reverse Path Forwarding (uRPF)

● Multidomain   Authentication
  ● Access Control Lists (ACLs) ● Switched Port Analyzer (SPAN)
  ● Secure Shell (SSH) Protocol, Kerberos, and Simple Network

     Management Protocol Version 3 (SNMPv3)

  ● TACACS+ and RADIUS authentication ● MAC Address Notification
  ● Multilevel security on console access  BPDU Guard
  ● Spanning Tree Root Guard (STRG) ● IGMP filtering

Management &

Troubleshooting

● Auto-MDOX ●TDR ● UDLD ● IP SLA Responder

● layer 2 / IP Traceroute ● SPAN ● RSPAN

● Express Setup ● Device Manager ● Cisco Network   Assistant

● Smartports + Advisor ● Troubleshooting Advisor

●   Drag-and-drop Cisco IOS Upgrade

● IP Address DHCP ● Autoinstall with saved   configuration

● Configuration Replace● DHCP Auto Image Upgrade

● DHCP Port Based Allocation  ● Error Disable MIB

Technical Support

and Services

● Cisco SMARTnet Service ● Cisco Smart   Foundation Service

● Cisco Smart Care Service

● Cisco SP Base Service ● Cisco Focused   Technical Support Services

Environmental Ranges

Operating temperature

up to 5000 ft (1500 m)

23ºF to 113º (-5ºC to 45ºC)

Operating temperature

up to 10,000 ft (3000 m)

23ºF to 104ºF (-5ºC to 40ºC)

Short-term exception at

sea level

23ºF to 131ºF (-5ºC to 55ºC)

Short-term exception up

to 5000 feet (1500 m)

23ºF to 122ºF (-5ºC to 50ºC)

Short-term exception up

to 10,000 feet (3000 m)

23ºF to 113ºF (-5ºC to 45ºC)

Short-term exception up

to 13,000 feet (4000 m)

23º to 104ºF (-5ºC to 40ºC)

Storage temperature up

to 15,000 feet (4573 m)

-13º to 158ºF (-25º to 70ºC)

Operating altitude

Up to 10,000 (Up to 3000 Meters)

Storage altitude

Up to 13,000 (Up to 4000 Meters)

Operating relative humidity

10% to 95% noncondensing

Storage relative humidity

10% to 95% noncondensing


The Accessories

Table 2 shows some accessories of WS-C2960XR-48TS-I.

Models

Description

C2960X-STACK

Catalyst 2960-X FlexStack Plus Stacking Module

CAB-STK-E-0.5M

Cisco FlexStack Stacking Cables

GLC-LH-SMD

Cisco GLC-LH-SMD 1000BASE-LX / LH SFP transceiver module, MMF / SMF,

1310nm, DOM

GLC-SX-MMD

1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

CAB-CONSOLE-RJ45

Console Cable 6ft with RJ45 and DB9F

CAB-CONSOLE-USB

Console Cable 6 ft with USB Type A and mini-B
