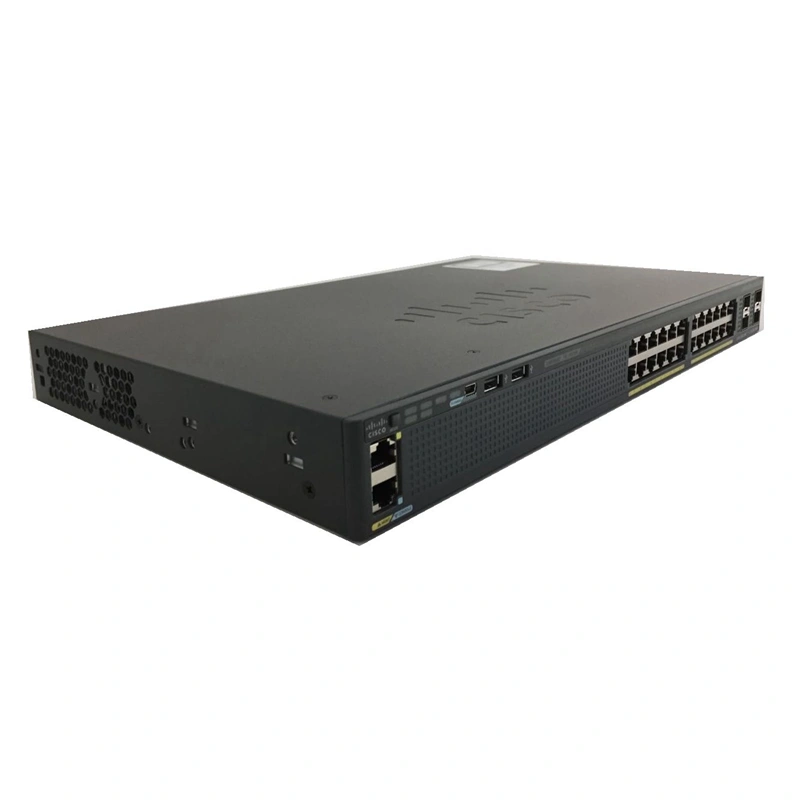

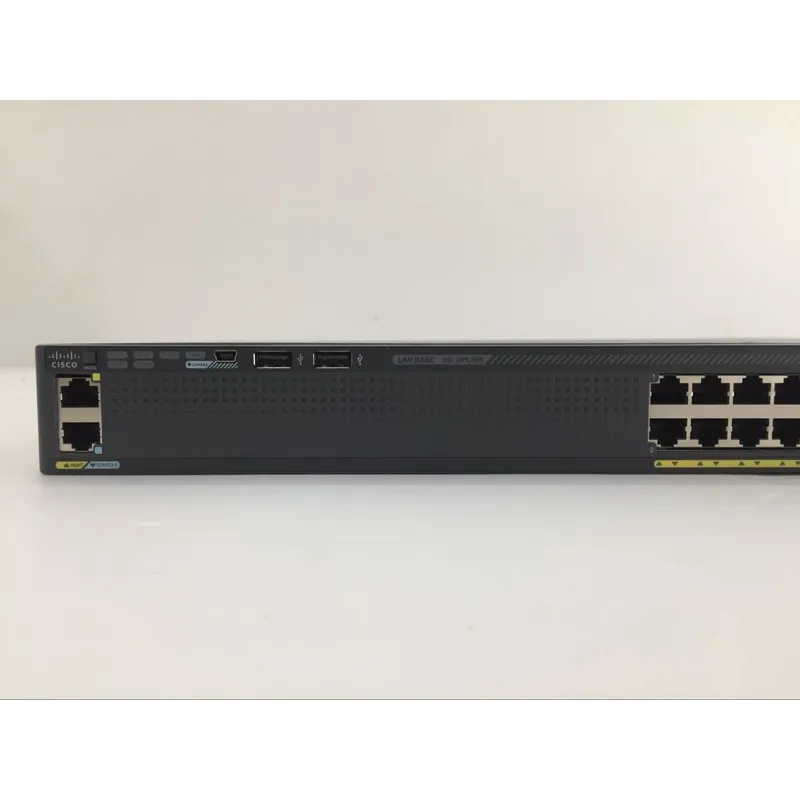

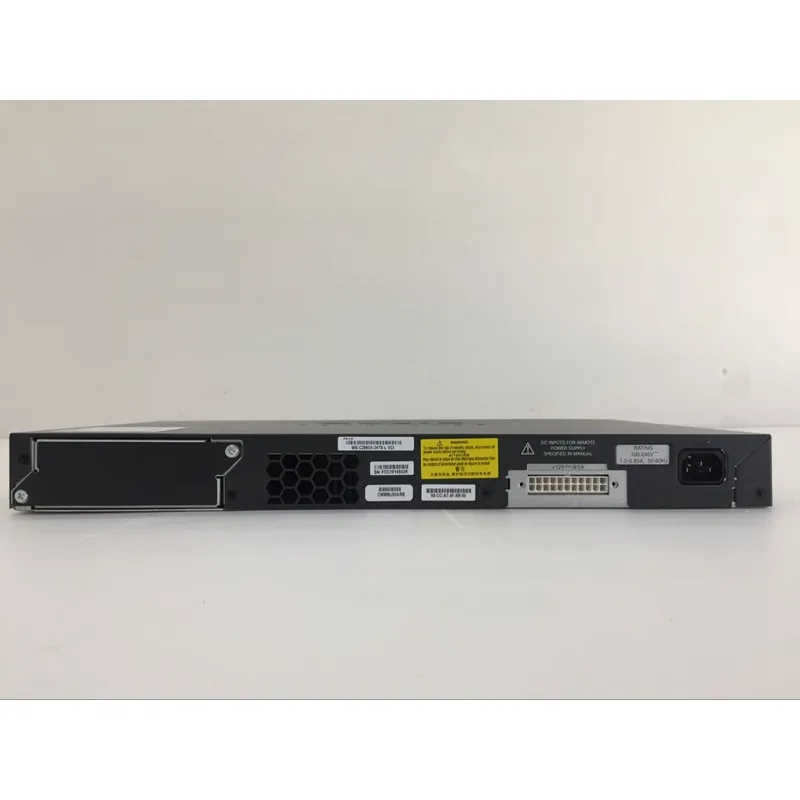

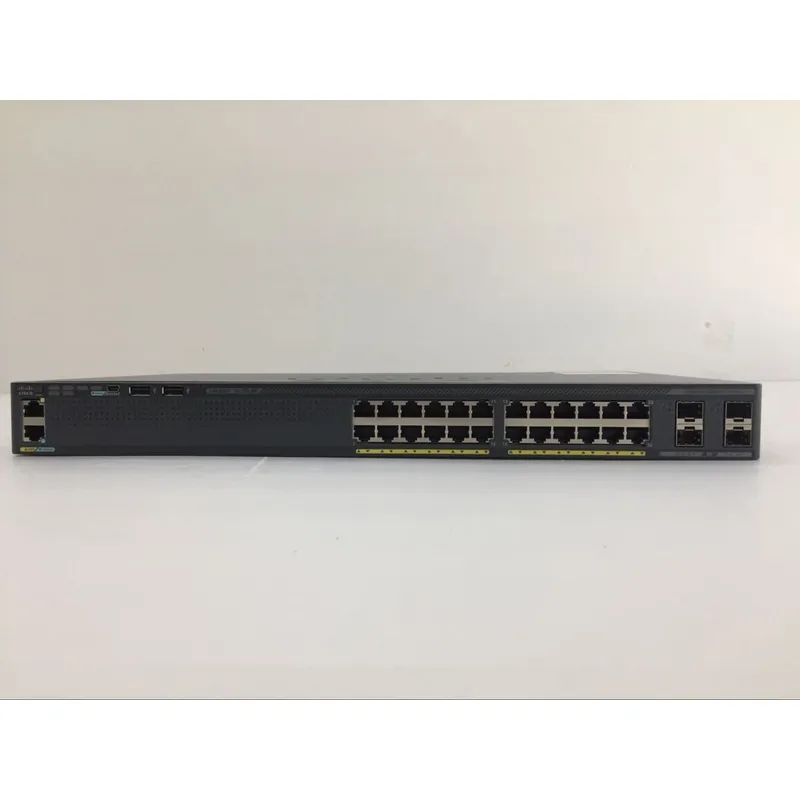

WS-C2960X-24TS-L

General

model info:

WS-2960X-24TS-L

enclosure type

Rack-mountable - 1U

Ports

24 x 10/100/1000 + 4 x 1G SFP

Network management

Interface

10/100 Mbps Ethernet (RJ-45)

Available PoE Power

None

Forwarding bandwidth

(Gbps)

108Gbps

Maximum stacking

number

8

Stack Bandwidth

80G

Forwarding Performance

71.4Mpps

Switching bandwidth

216Gbps

Maximum active

VLANs

1023

MAC Address

Table Size

16K (default)

CPU

APM86392 600MHz dual core

RAM

512 MB

Flash Memory

128 MB

Status Indicators

Per-port status:

Link integrity, disabled, activity,   speed, and full duplex System status:

 System, RPS, Stack link status, link   duplex, and link speed

Expansion / Connectivity

Console ports

USB (Type-B), Ethernet (RJ-45)

Stacking cable

Optional

Power Redundancy

Option (PWR-RPS2300)

Voltage range (Auto)

110V-240V

Power Consumption

Operational

0.039KVA

Miscellaneous

Width

17.5 Inches (44.5 cm)

Depth

14.5 Inches (36.8 cm)

Height

1.75 Inches (4.5 cm)

Package Weight

20.26 Pounds (9.19Kg)

Weight

8.9 Pounds (4.0Kg)

Rack Mounting Kit

optional

MTBF in hours

622,350

Compliant Standards

IEEE 802.1D Spanning Tree Protocol
  IEEE 802.1p CoS Prioritization
  IEEE 802.1Q VLAN
  IEEE 802.1s
  IEEE 802.1w
  IEEE 802.1X
  IEEE 802.1ab (LLDP)
  IEEE 802.3ad
  IEEE 802.3af and IEEE 802.3at
  IEEE 802.3ah (100BASE-X single/multimode fiber only)
  IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
  IEEE 802.1D Spanning Tree Protocol
  IEEE 802.1p CoS Prioritization
  IEEE 802.1Q VLAN
  IEEE 802.1s
  IEEE 802.1w
  IEEE 802.1X
  IEEE 802.1ab (LLDP)
  IEEE 802.3ad
  IEEE 802.3af and IEEE 802.3at
  IEEE 802.3ah (100BASE-X single/multimode fiber only)
  IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

System software / license

System software

IOS LAN BASE

license

NERGY-MGT-100-K9, EW-DO-100-DE

features

RPS Support
  Jumbo Frames
  VLANS
  Voice Vlan
  VTPv2
  CDPv2
  LLDP
  802.3ad LACP
  PVST/PVST+
  802.1W/802.1S
  Port Fast/Uplink Fast
  port CoS Trust and Override
  Scheduling
  Priority Queuing
  Configure CoS Priority Queues
  Weighted Tail Drop
  DSCP transparency

Network security

SSH, SSL and SCP
  RADIUS and TACACS+
  SNMPv3 crypto
  802.1x
  802.1x Accounting / MIB
  802.1x w/ port security
  802.1x w/Voice VLAN
  802.1x Guest VLAN
  802.1x VLAN assignment
  802.1x MAC-Auth Bypass
  BPDU/Root Guard
  Port Security
  Private VALN Edge
  Storm Control
  Block unknown unicast and multicast
  IGMP Snooping
  IGMP Filter/Throttle

Management and

Troubleshooting

Auto-MDOX
  TDR
  UDLD
  IP SLA Responder
  layer 2 / IP Traceroute
  SPAN
  RSPAN
  Express Setup
  Device Manager
  Cisco Network Assistant
  Smartports + Advisor
  Troubleshooting Advisor
  Drag-and-drop Cisco IOS Upgrade
  IP Address DHCP
  Autoinstall with saved configuration
  Configuration Replace
  DHCP Auto Image Upgrade
  DHCP Port Based Allocation
  Error Disable MIB

Environmental Ranges

Operating temperature

up to 5000 ft (1500 m)

23ºF to 113ºF

Operating temperature

up to 10,000 ft (3000 m)

23ºF to 104ºF

Short-term exception

at sea level

23ºF to 131ºF

Short-term exception up

to 5000 feet (1500 m)

23ºF to 122ºF

Short-term exception up

to 10,000 feet (3000 m)

23ºF to 113ºF

Short-term exception up

to 13,000 feet (4000 m)

23º to 104ºF

Storage temperature up

to 15,000 feet (4573 m)

-13º to 158ºF

Operating altitude

Up to 10,000 feet

Storage altitude

Up to 13,000 feet

Operating relative humidity

10% to 95% noncondensing

Storage relative humidity

10% to 95% noncondensing

C2960X-STACK

Catalyst 2960-X FlexStack Plus Stacking Module

CAB-STK-E-0.5M

Cisco FlexStack Stacking Cables

GLC-LH-SMD

Cisco GLC-LH-SMD   1000BASE-LX / LH SFP transceiver module,  MM F/ SMF ,

1310nm, DOM

GLC-SX-MMD

1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

CAB-CONSOLE-RJ45

Console Cable 6ft with RJ45 and DB9F

CAB-CONSOLE-USB

Console Cable 6 ft with USB Type A and mini-B
