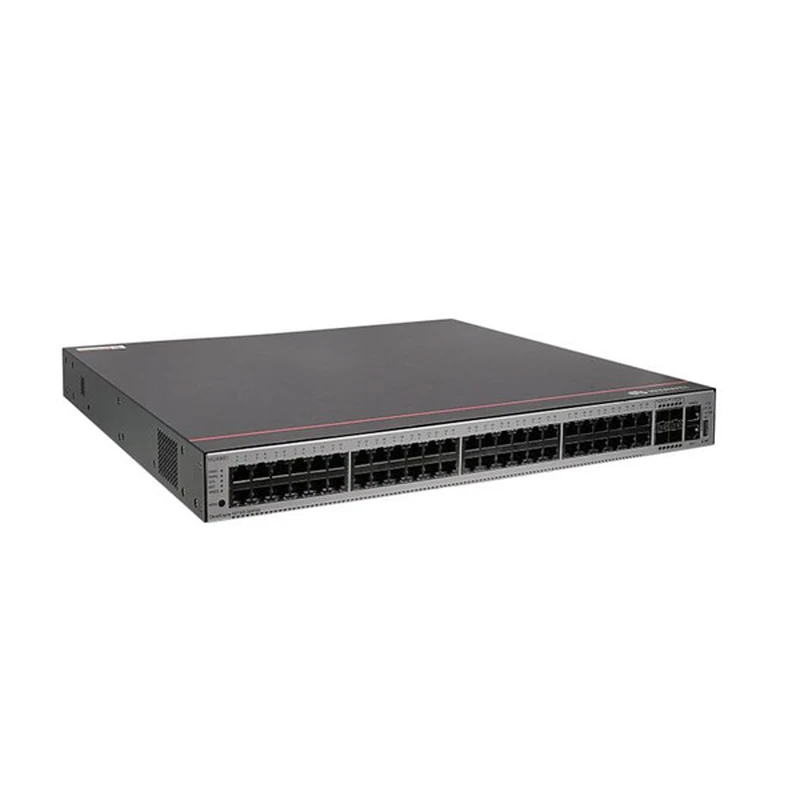

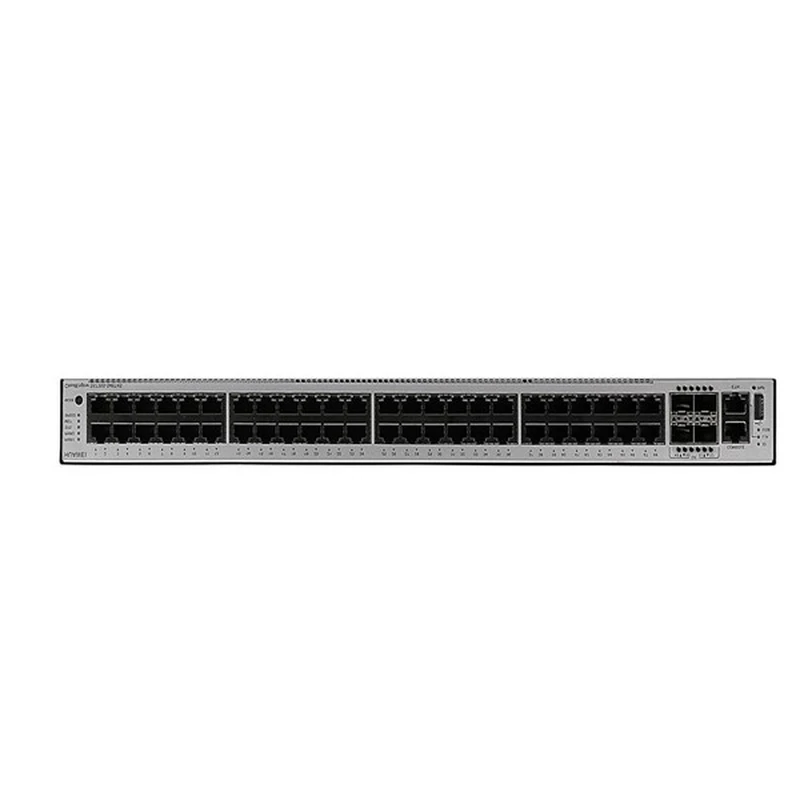

S5735S-S48T4S-A

Memory (RAM)

1GB

Flash

 512 MB in total. To view the available flash memory size,

 run the display   version command.

Mean time between failures

(MTBF)

74.7years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: ±7 kV

Power supply surge protection

·     Using AC power modules: ±6 kV in differential   mode,

       ±6 kV in common mode

·     Using DC power modules: ±2 kV in   differential mode,

       ±4 kV in common mode

Dimensions (H x W x D)

·     Basic dimensions

      (excluding the parts protruding from the body):

·      43.6 mm x 442.0 mm x 420.0 mm

      (1.72 in. x 17.4 in. x 16.5 in.)

·      Maximum dimensions (the depth is the distance   from

       ports on the front panel to the   handle on the rear panel):

       43.6 mm x 442.0 mm x 444.2 mm

      (1.72 in. x 17.4 in. x 17.49 in.)

Weight (with packaging)

8.37 kg (18.45 lb)

Stack ports

Any 10/100/1000BASE-T ports or 1000BASE-X ports

(applicable in V200R019C10 and later versions)

RTC

Supported

RPS

Not supported

PoE

Not supported

Rated voltage range

·           AC input: 100 V   AC to   240 V AC, 50/60 Hz

·           High-Voltage   DC input: 240 V DC

·           DC input:   -48 V DC to -60 V DC

Maximum voltage range

·           AC input:   90 V   AC to 264 V AC, 47 Hz to 63 Hz

·           High-Voltage   DC   input: 190 V DC to 290 V DC

·           DC   input: -38.4   V DC to -72 V DC

Maximum power consumption

(100% throughput, full speed of

fans)

58 W

Typical power consumption

(30% of traffic load, tested

according to ATIS standard)

     41 W

Operating temperature

Short -term operating

 temperature

Operating temperature

-5°C to 45°C (32°F to 113°F)

at an altitude of 0-1800 m (0-5906 ft.)

NOTE:

When the altitude   is 1800-5000 m (5906-16404 ft.),

the highest   operating temperature reduces by 1°C (1.8°F)

every time the   altitude increases by 220 m (722 ft.).

The switch cannot be started when the ambient

temperature is lower than 0°C (32°F).

Short -term operating

 temperature

-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m

(0-5906 ft.)

NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.),

the highest operating temperature reduces by 1°C (1.8°F)

every time the altitude increases by 220 m (722 ft.).

The equipment can operate beyond the normal operating

temperature range for a short-term period, but the following

conditions must be met:

·         The equipment   operates at a temperature of over

45°C (113°F) consecutively for at most 96 hours in one year.

·         The equipment   operates at a temperature of over 45°C

(113°F) for a total of no more than 360 hours in one year.

·         The equipment   operates at a temperature of over 45°C

(113°F) for no more in 15 times in one year.

The equipment may be damaged or experience unexpected

exceptions if any of the preceding limits is exceeded.

The equipment   cannot start when the temperature is lower than

0°C (32°F). The   maximum distance of optical modules used in

these conditions   cannot exceed 10 km.

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature

(27°C, sound power)

<58.9 db (A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification

·           EMC   certification

·           Safety   certification

·           Manufacturing   certification

Part number

98010942

3

One console port

4

One ETH management port

5

One USB port

6

One PNP button

NOTICE:

To restore the factory settings and reset the switch,

hold down the button for at least 6 seconds.

To reset the switch, press the button.Resetting the

switch will cause service interruption.

Exercise caution when you press the PNP button.

7

Ground screw

NOTE:

The ground screw is on the left side of

the chassis.

8

Power module slot 1

NOTE:

Applicable power module:

·         PAC60S12-AR

          (60 W AC Power Module)

·        PDC1000S12-DB

          (1000 W DC Power Module)

·         PDC180S12-CR

          (180 W DC Power Module)

         (applicable in V200R020C00

          and later versions)

9

Power module slot 2

NOTE:

Applicable power module:

·         PAC60S12-AR

          (60 W AC Power Module)

·        PDC1000S12-DB

          (1000 W DC Power Module)

·         PDC180S12-CR

          (180 W DC Power Module)

         (applicable in V200R020C00

          and later versions)

   OMXD30000

   Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode   Module

(850nm, 0.3km, LC)

   SFP-GE-LX-SM1310

   Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,   10km, LC)

   OMXD30009

   Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm,   -11.5dBm, LC,

SMF, 10

   eSFP-GE-SX-MM850

   Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC)
