S5735-L12T4S-A Overview
S5735-L12T4S-A is the Huawei S5735-L switch with 12 x 10/100/1000Base-T ports,
4 x GE SFP ports. Huawei CloudEngine S5735-L is a series of simplified gigabit access
switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE
uplink ports. They are designed for enterprise campus network access and gigabit to
the desktop. Built on next-generation, high-performance hardware and powered by
Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature
flexible Ethernet networking, diversified security control, and support for multiple
Layer 3 routing protocols — providing higher performance and more powerful s
ervice processing capabilities for networks.
S5735-L12T4S-A Specification
Item | Description |
Memory (RAM) | 1GB |
Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
Mean time between failures (MTBF) | 98.6 years |
Mean time to repair (MTTR) | 2 hours |
Availability | > 0.99999 |
Service port surge protection | Common mode: ±7 kV |
Power supply surge protection | ±6 kV in differential mode, ±6 kV in common mode |
Dimensions (H x W x D) | · Basic dimensions (excluding the parts protruding from the body): · 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) · Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
Weight (with packaging) | 3.83 kg (8.44 lb) |
Stack ports | Any 10/100/1000BASE-T ports or 1000BASE-X ports (applicable in V200R019C10 and later versions) |
RTC | Not supported |
RPS | Not supported |
PoE | Not supported |
Rated voltage range | · AC input: 100 V AC to 240 V AC, 50/60 Hz · High-Voltage DC input: 240 V DC |
Maximum voltage range | · AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz · High-Voltage DC input: 190 V DC to 290 V DC |
Maximum power consumption (100% throughput,full speed of fans) | 29 W |
Typical power consumption (30% of traffic load, tested according to ATIS standard) | 23 W |
Operating temperature | -5°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). The operating temperature of the switch is -5°C to +40°C (23°F to 104°F) when it uses GE SFP optical modules with 40 km or longer transmission distance. When SFP+ copper cables or dedicated stack cables are used to set up a stack, the switch can operate in the following temperature range: · -5°C to +45°C (23°F to 113°F) (installed in the ventilation cabinet, with the wind speed of at least 40 LFM) When SFP+ AOC cables or 10GE SFP+ optical modules are used to set up a stack, the switch can operate in the following temperature range: · -5°C to +45°C (23°F to 113°F) (installed in the ventilation cabinet shipped with fans with a fan speed of at least 200 LFM) |
Storage temperature | -40°C to +70°C (-40°F to +158°F) |
Noise under normal temperature (27°C, sound power) | Noise-free (bo fans) |
Relative humidity | 5% to 95%, noncondensing |
Operating altitude | 0-5000 m (0-16404 ft.) |
Certification | · EMC certification · Safety certification · Manufacturing certification |
Part number | 98010918 |
Product Details

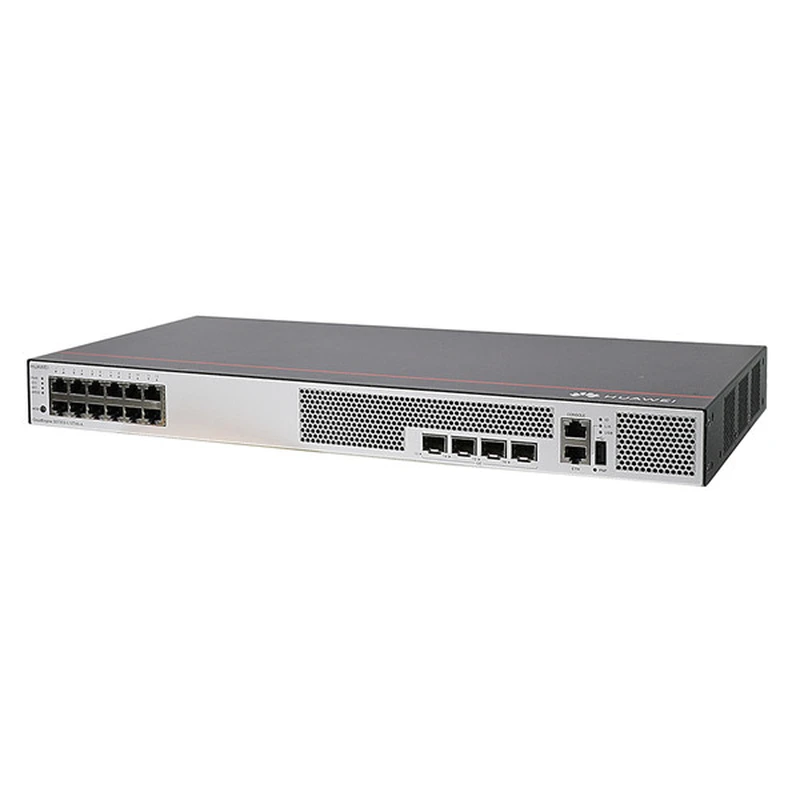

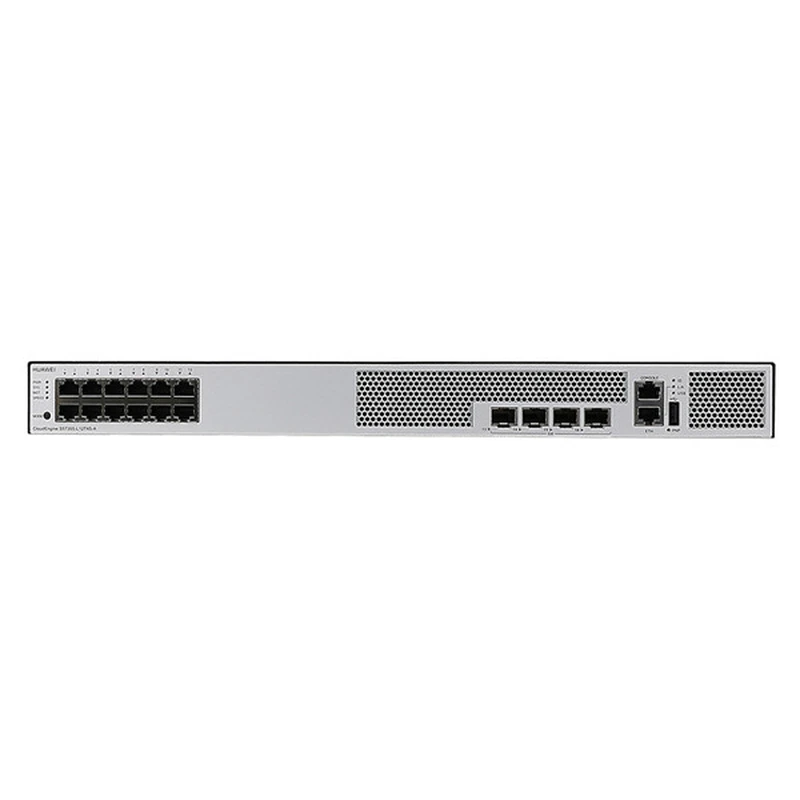

Figure 1 shows the appearance of S5735-L12T4S-A .
1 | Twelve 10/100/1000BASE-T ports | 2 | Four 1000BASE-X ports Applicable modules: · FE optical module (applicable in V200R021C00 and later versions) · GE optical module · GE-CWDM optical module · GE-DWDM optical module · GE copper module · 10GE SFP+ optical module (only used for stack connection, a maximum transmission distance of 0.4 km, OSXD22N00 not supported, applicable in V200R019C10 and later versions) · 1 m and 3 m SFP+ high-speed copper cables (only used for stack connection, applicable in V200R019C10 and later versions) · 3 m and 10 m SFP+ AOC cables (only used for stack connection, applicable in V200R019C10 and later versions) · 0.5 m and 1.5 m SFP+ dedicated stack copper cables (used for zero-configuration stacking, applicable in V200R019C10 and later versions) |
3 | One console port | 4 | One ETH management port |
5 | One USB port | 6 | One PNP button NOTICE: To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button.Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. |

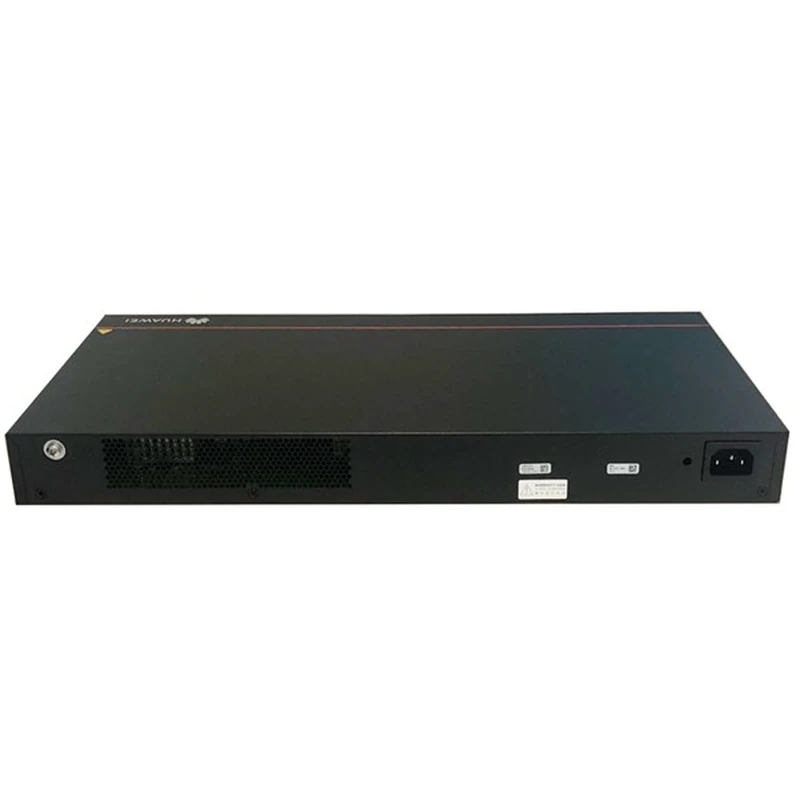

7 | Ground screw NOTE: The ground screw is on the left side of the chassis. | 8 | Jack for AC power cable locking strap NOTE: The AC power cable locking strap is not delivered with the switch. |
9 | AC socket NOTE: It is used with an AC power cabe. |
The Accessories
Table 3 shows the recommended transceivers, card and power module.
Model | Description |
Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) | |
Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) | |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) | |
OSXD22N00 | Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm, 0.22km, LC, LRM) |
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) | |
Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 | |
SFP-10G-LR | Huawei Optical Transceiver SFP-10G-LR, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
