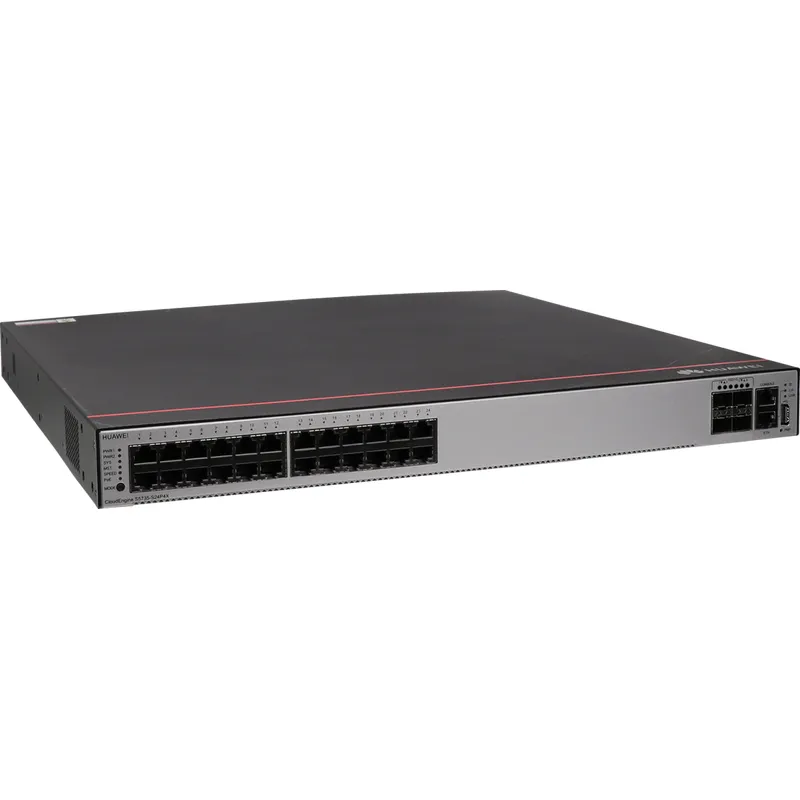

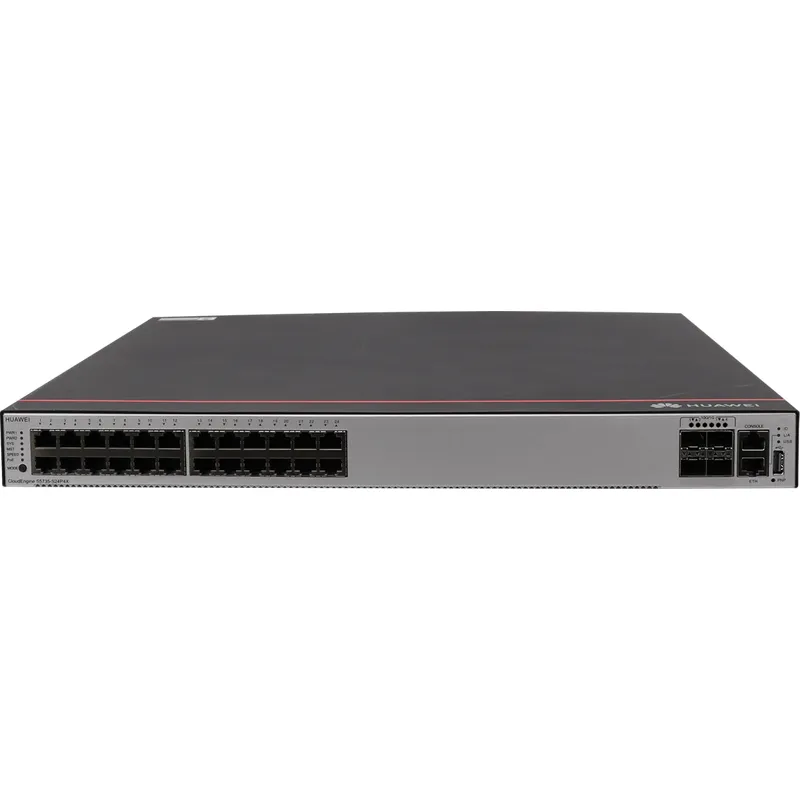

S5735-S24T4X

Memory (RAM)

1GB

Flash

 512 MB in   total. To view the available flash memory size,

 run   the display   version command.

Mean time   between failures

 (MTBF)

69.42 years

Mean time to   repair (MTTR)

2 hours

Availability

> 0.99999

Service port   surge protection

Common   mode: ±7 kV

Power  supply  surge  protection

·       Using AC power modules: ±6 kV in differential mode,

         ±6 kV in common mode

·     Using   DC power modules: ±2 kV in differential mode,

         ±4 kV in common mode

Dimensions (H x   W x D)

·       Basic dimensions

        (excluding the parts protruding from the body):

·      43.6   mm x 442.0 mm x 420.0 mm

        (1.72 in. x 17.4 in. x 16.5 in.)

·        Maximum dimensions (the depth is the distance from

         ports on the front panel to the handle on the rear   panel):

         43.6 mm x 442.0 mm x 444.2 mm

        (1.72 in. x 17.4 in. x 17.49 in.)

Weight (with   packaging)

7.21 kg (15.9   lb)

Stack ports

Any 10/100/1000BASE-T ports or 1000BASE-X ports

(applicable in V200R019C10 and later versions)

RTC

Supported

RPS

Not supported

PoE

Not supported

Rated voltage   range

·             AC input: 100 V   AC to 240 V AC, 50/60   Hz

·             High-Voltage DC input: 240 V DC

·             DC input: -48 V DC to -60 V DC

Maximum voltage   range

·             AC input: 90 V   AC to 264 V AC, 47 Hz to 63 Hz

·           High-Voltage   DC   input: 190 V DC to 290 V DC

·           DC   input: -38.4   V DC to -72 V DC

Maximum power consumption

(100% throughput, full speed

of fans)

46 W

Typical power consumption

(30% of traffic load, tested

according to ATIS standard)

       31 W

Operating temperature

Short -term

 operating temperature

Operating   temperature

-5°C to 45°C   (32°F to 113°F)

at an altitude   of 0-1800 m (0-5906 ft.)

NOTE:

When the altitude is 1800-5000 m   (5906-16404 ft.),

the highest operating temperature   reduces by 1°C (1.8°F)

every time the altitude increases by 220   m (722 ft.).

The switch cannot be started when the ambient

temperature is lower than 0°C (32°F).

Short -term operating

temperature

-5°C to +55°C   (23°F to 131°F) at an altitude of 0-1800 m

(0-5906 ft.)

NOTE:

When the   altitude is 1800-5000 m (5906-16404 ft.),

the highest   operating temperature reduces by 1°C (1.8°F)

every time the   altitude increases by 220 m (722 ft.).

The equipment   can operate beyond the normal operating

temperature   range for a short-term period, but the following

conditions must   be met:

·         The   equipment operates at a temperature of over

45°C (113°F)   consecutively for at most 96 hours in one year.

·         The   equipment operates at a temperature of over 45°C

(113°F) for a   total of no more than 360 hours in one year.

·         The   equipment operates at a temperature of over 45°C

(113°F) for no   more in 15 times in one year.

The equipment   may be damaged or experience unexpected

exceptions if   any of the preceding limits is exceeded.

The equipment cannot start when the   temperature is lower than

0°C (32°F). The maximum distance of   optical modules used in

these conditions cannot exceed 10 km.

Storage   temperature

-40°C to +70°C   (-40°F to +158°F)

Noise under

normal temperature

(27°C, sound   power)

<58.9 db (A)

Relative   humidity

5% to 95%,   noncondensing

Operating   altitude

0-5000 m   (0-16404 ft.)

Certification

·             EMC certification

·             Safety certification

·             Manufacturing certification

Part number

98010938

3

One console port

4

One ETH management port

5

One USB port

6

One PNP button

NOTICE:

To restore the factory settings and reset the switch,

hold down the button for at least 6 seconds.

To reset the switch, press the button.Resetting the switch

will cause service interruption.

Exercise caution when you press the PNP button.

7

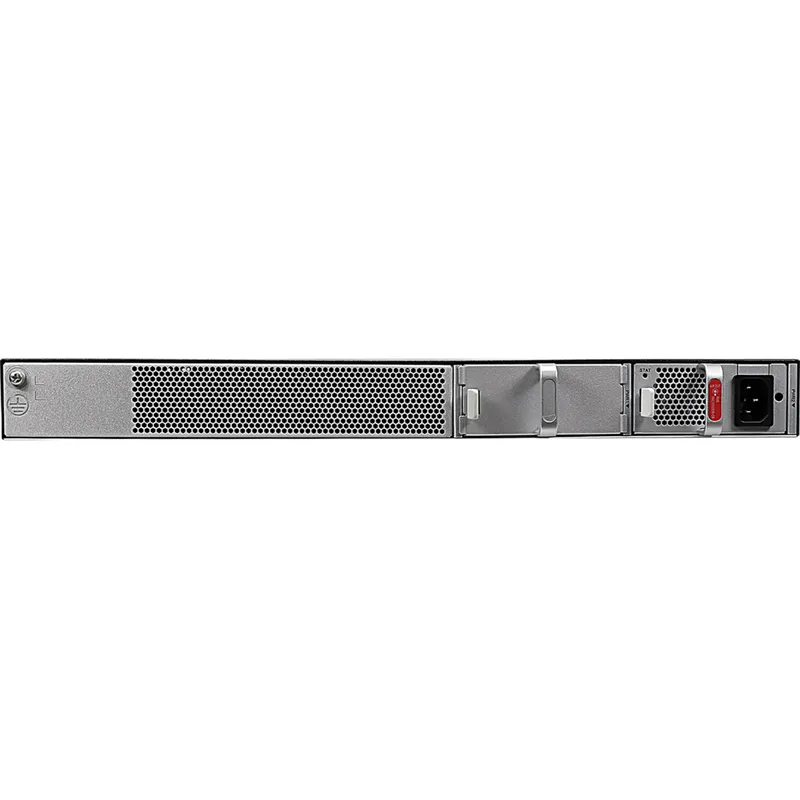

Ground screw

NOTE:

The ground screw is on the left side

of the chassis.

8

Power module slot 1

NOTE:

Applicable power module:

·         PAC60S12-AR

          (60 W AC Power Module)

·        PDC1000S12-DB

          (1000 W DC Power Module)

·         PDC180S12-CR

          (180 W DC Power Module)

         (applicable in V200R020C00

          and later versions)

9

Power module slot 2

NOTE:

Applicable power module:

·         PAC60S12-AR

          (60 W AC Power Module)

·        PDC1000S12-DB

          (1000 W DC Power Module)

·         PDC180S12-CR

          (180 W DC Power Module)

         (applicable in V200R020C00

          and later versions)

   OMXD30000

   Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode   Module

   (850nm, 0.3km, LC)

   OMXD30000

   Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm,   10km, LC)

   SFP-GE-LX-SM1310

   Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,   10km, LC)

   OSXD22N00

   Optical Transceiver, SFP+, 10G, Multi-mode Module

   (1310nm,   0.22km, LC, LRM)

   SFP-10G-USR

   10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module

   (850nm, 0.1km, LC)

   OMXD30009

Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF,

10

   SFP-10G-LR

   Huawei Optical Transceiver SFP-10G-LR, SFP+, 10G, Single-mode   Module

  (1310nm, 10km, LC)
