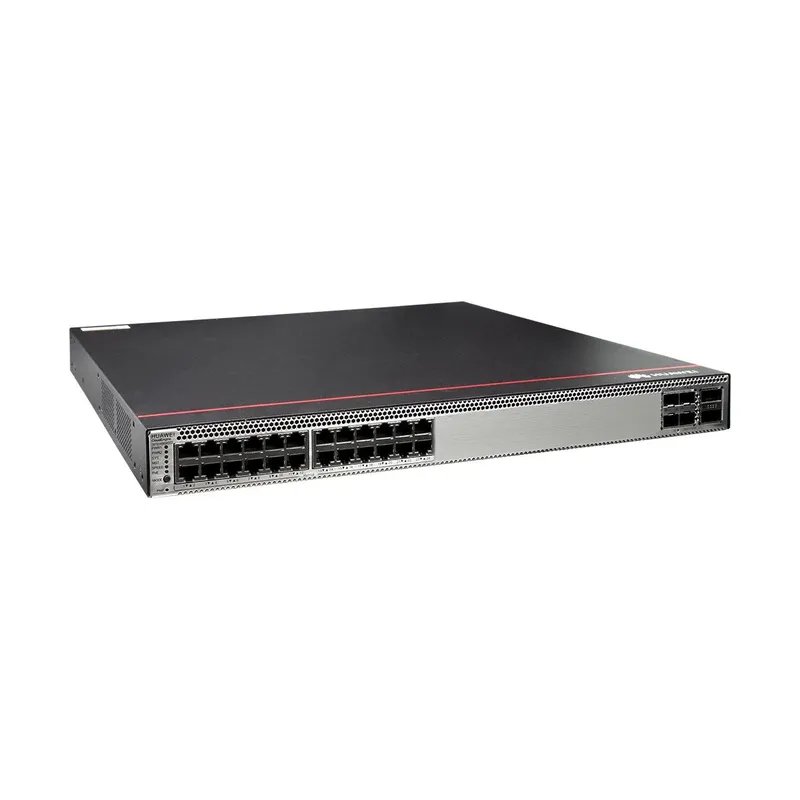

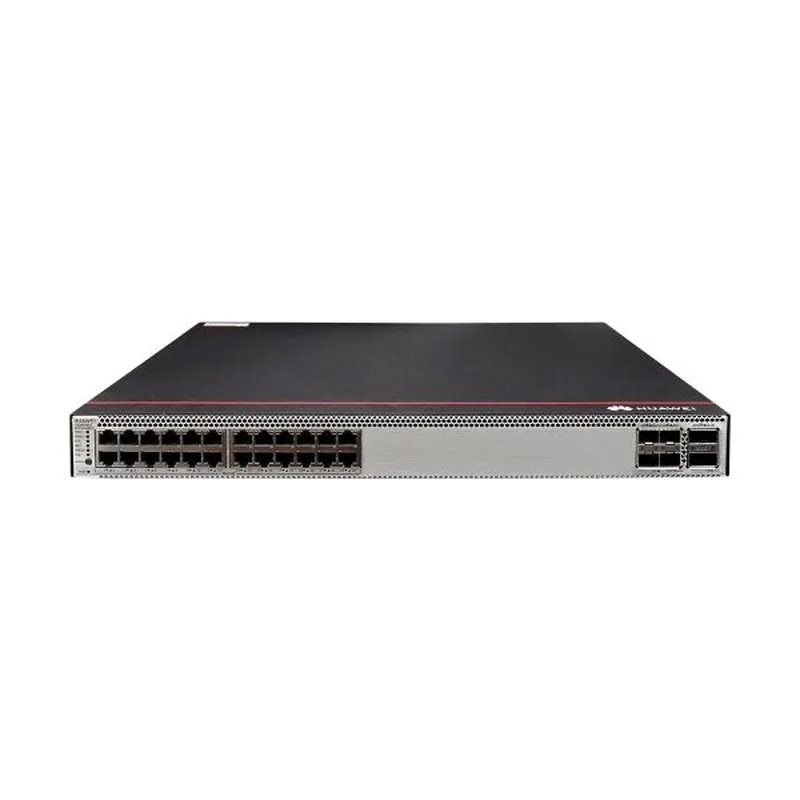

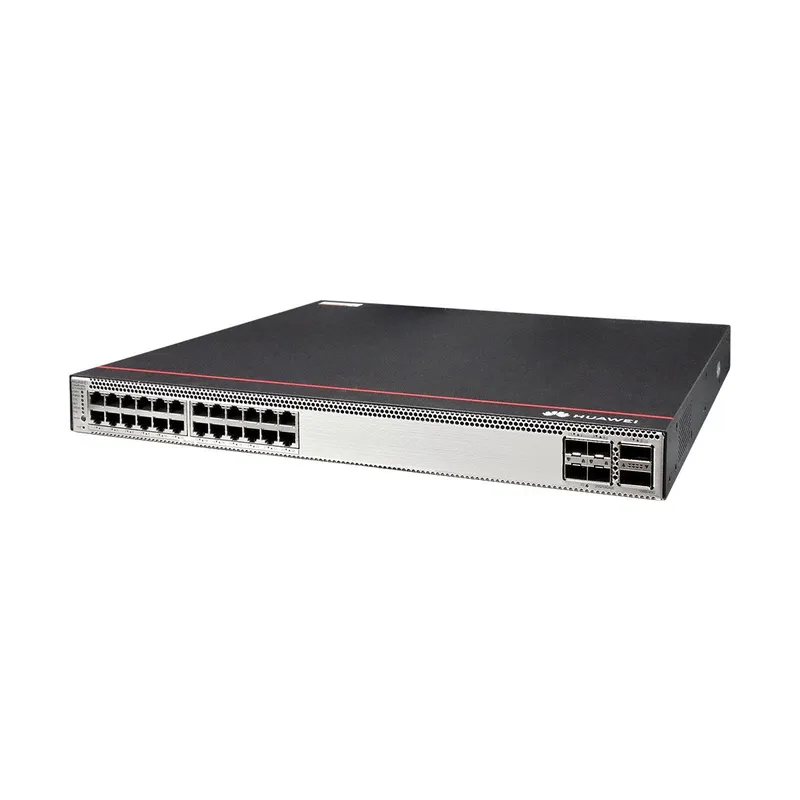

S5732-H24UM2CC

Memory (RAM)

4 GB

Flash

 2 GB in total. To view the available flash memory size,

 run the display   version command.

Mean time between failures (MTBF)

38.05 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: ±6 kV

Power supply surge protection

·     Using AC power modules: ±6 kV in differential mode,

       ±6 kV in common mode

·     Using DC power modules: ±2 kV in differential mode,

       ±4 kV in common mode

Dimensions (H x W x D)

·     Basic dimensions

      (excluding the parts protruding from the body):

·      43.6 mm x 442.0 mm x 420.0 mm

      (1.72 in. x 17.4 in. x 16.5 in.)

·      Maximum dimensions (the depth is the distance from

       ports on the front panel to the handle on the rear panel):

       43.6 mm x 442.0 mm x 446.0 mm

      (1.72 in. x 17.4 in. x 17.6 in.)

Weight (inchluding packaging)

Without power modules: 8 kg (17.64 lb)

Including one power module: 9.1 kg (20.06 lb)

Stack ports

Any Ethernet electrical ports (10GE), optical ports on the

front panel (25GE/40GE/100GE), or optical ports on the

card (10GE/25GE)

RTC

Supported

RPS

Not supported

PoE

Supported

Rated voltage range

·           AC input: 100 V   AC to 130 V AC,

            200 V AC to 240V AC, 50/60 Hz

·           High-Voltage DC input: 240 V DC

·           DC input: -48 V DC to -60 V DC

Maximum voltage range

·           AC input: 90 V   AC to 290 V AC, 45 Hz to 65 Hz

·           High-Voltage DC   input: 190 V DC to 290 V DC

·           DC input: -38.4   V DC to -72 V DC

Maximum power consumption

(100% throughput, full speed   of fans)

·         Not providing the PoE function: 285 W (without card)

·         100% PoE loads: 1933 W (PoE: 1440 W, without card)

Typical power consumption

( 30% of traffic load , tested according to ATIS

 standard )

     161 W (without card)

Operating temperature

-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m

(0-5906 ft.)

NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.),the highest

operating temperature reduces by 1°C (1.8°F) every time the

altitude increases by 220 m (722 ft.).

The switch cannot be started when the ambient temperature is

lower than 0°C (32°F).

The operating temperature of the switch is -5°C to 40°C

(23°F to 104°F) when it uses QSFP-100G-ER4 optical module.

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature

(27°C, sound power)

< 59.2 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification

·           EMC certification

·           Safety certification

·           Manufacturing certification

Part number

02353HUC

02353HUC-003

02353HUC-004

02353SJY

02353SJY-001

02353SJY-004

02353SJY-010

02353SJY-011

02353SJY-014

02353SJY-015

02353SJY-016

02353SJY-019

3

Four 1GE/10GE/25GE SFP28 optical ports

Applicable modules and cables:

·         GE optical module

·         GE-CWDM optical module

·         GE-DWDM optical module

·         GE copper module

          (100M/1000M auto-sensing)

·         10GE SFP+ optical module

         (OSXD22N00 not supported)

·         10GE-CWDM optical module

·         10GE-DWDM optical module

·         25GE SFP28 Optical Module

·         1 m, 3 m, 5 m, and 10 m SFP+

          high-speed copper cables

·         3 m and 10 m SFP+ AOC cables

·         1 m, 3 m, and 5 m SFP28

          high-speed copper cables

·         3 m, 5 m, 7 m, and 10 m SFP

          28 AOC cables

4

Two 40GE/100GE QSFP28 optical ports

Applicable modules and cables:

·         QSFP+ optical module

·         QSFP28 optical module

·         1 m, 3 m, and 5 m QSFP+

          high-speed copper cables

·        10 m QSFP+ AOC cable

·        1 m, 3 m, and 5 m QSFP28

         high-speed copper cables

·        10 m QSFP28 AOC cable

·        2 m QSFP28 dedicated stack cable

  (supported in V200R020C10 and later versions)

NOTE:

You can run the set device port-config-mode enable

command to change the working mode of SFP28 and

QSFP28 optical ports. By default, the working mode of

SFP28 and QSFP28 optical ports is

 "4 x 25GE + 2 x 40GE" If any QSFP28 optical port is

configured to work at 100 Gbit/s or split into four 25GE

 ports, the four SFP28 optical ports become unavailable

5

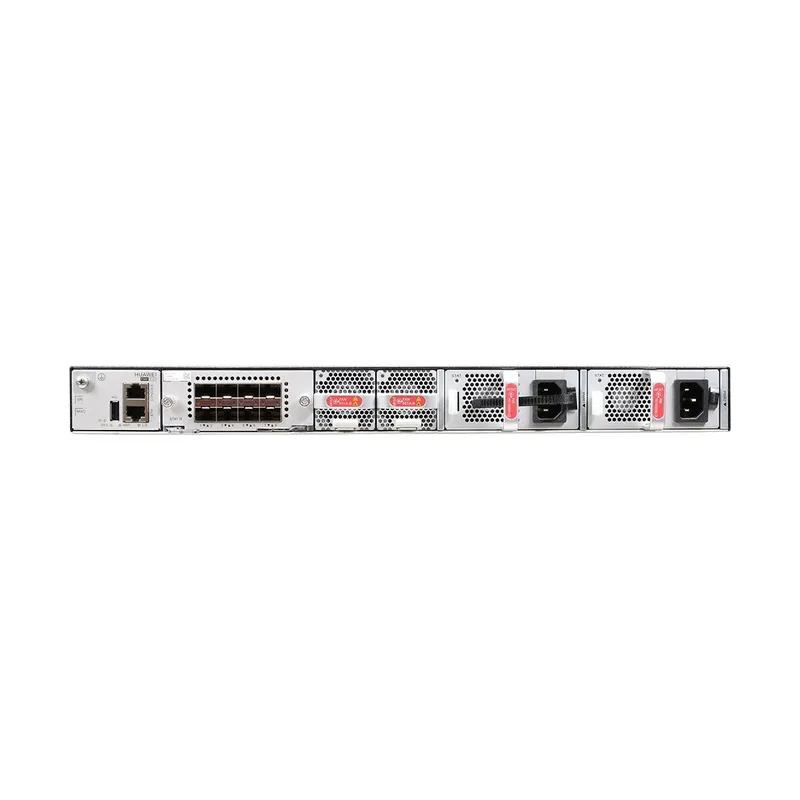

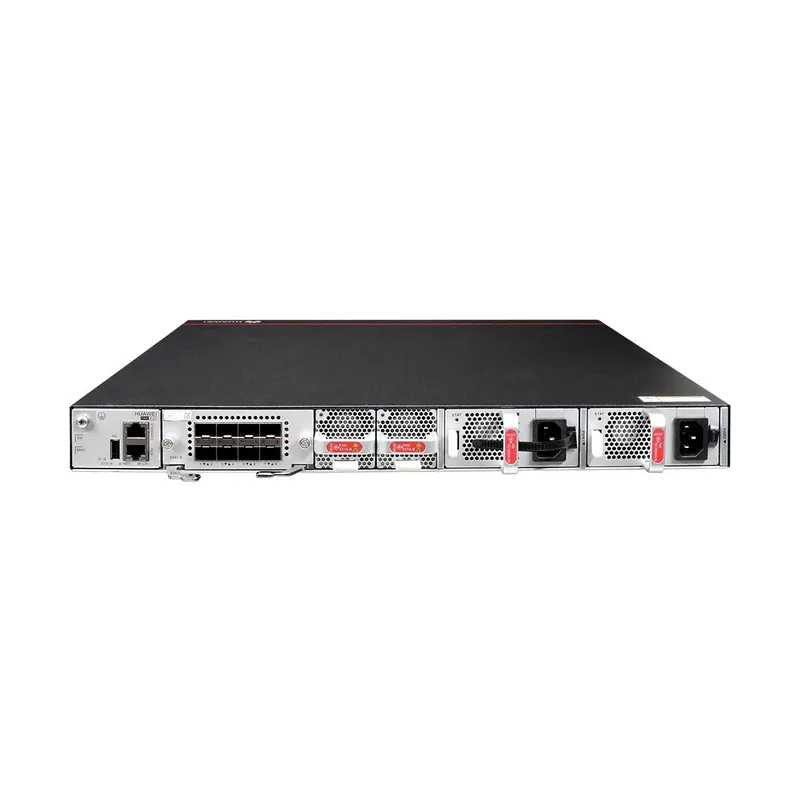

Ground screw

NOTE:

It is used with  a ground cable.

6

One USB port

7

One console port

8

One ETH management port

9

Rear card slot

NOTE:

Applicable card:

·      S7X08000

·      S7Y08000

10

Fan module slot   1

NOTE:

Applicable fan   module:

FAN-031A-B

(Fan box(B,FAN   panel   side exhaust))

11

Fan module slot     2

NOTE:

Applicable fan   module:

FAN-031A-B  (Fan box(B,FAN panel   side exhaust))

12

Power module slot 1

NOTE:

Applicable power module:

·         PAC1000S56-CB

        (02312KND:

        1000 W PoE AC Power Module)

·         PAC1000S56-CB

        (02312KND-001:

        1000 W PoE AC Power Module)

·         PAC1000S56-DB

        (1000 W PoE AC Power Module)

       (applicable in V200R020C10

        and later versions)

·         PDC1000S56-CB

       (1000 W PoE DC Power Module)

       (applicable in V200R021C00

        and later versions)

·        PAC600S56-CB

     (600 W AC&240 V DC Power Module

     (Back to Front, Power panel side exhaust))

     (applicable in V200R021C10

      and later versions)

13

Power module slot 2

NOTE:

Applicable power module:

·         PAC1000S56-CB

        (02312KND:

        1000 W PoE AC Power Module)

·         PAC1000S56-CB

        (02312KND-001:

        1000 W PoE AC Power Module)

·         PAC1000S56-DB

        (1000 W PoE AC Power Module)

       (applicable in V200R020C10

        and later versions)

·         PDC1000S56-CB

       (1000 W PoE DC Power Module)

       (applicable in V200R021C00

        and later versions)

·        PAC600S56-CB

     (600 W AC&240 V DC Power Module

     (Back to Front, Power panel side exhaust))

     (applicable in V200R021C10

      and later versions)
