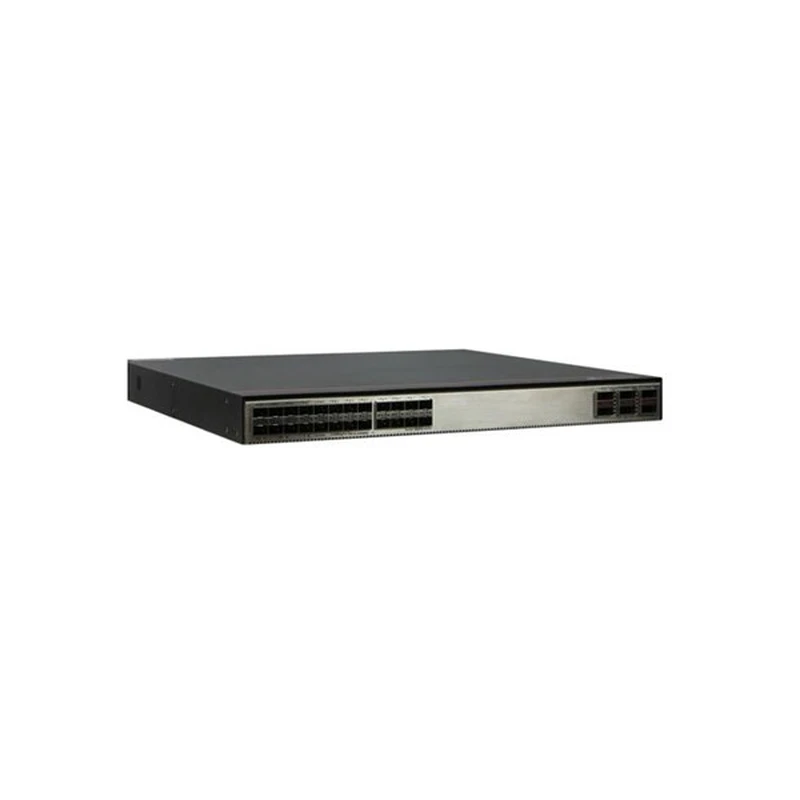

S5732-H24S6Q

Memory (RAM)

4 GB

Flash

 2 GB in total. To view the available flash memory size,

 run the display   version command.

Mean time between failures (MTBF)

62.27 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

N/A

Power supply surge protection

·     Using AC power modules: ±6 kV in differential   mode,

       ±6 kV in common mode

·     Using DC power modules: ±2   kV in differential mode,

       ±4 kV in common mode

Dimensions (H x W x D)

·     Basic dimensions

      (excluding the parts protruding from the body):

·      43.6 mm x 442.0 mm   x 420.0 mm

      (1.72 in. x 17.4 in. x 16.5 in.)

·      Maximum dimensions (the depth is   the distance from

       ports on the front panel to the handle on the rear panel):

       43.6 mm x 442.0 mm x 446.0 mm

      (1.72 in. x 17.4 in. x 17.6 in.)

Weight (with packaging)

8.9 kg (19.62 lb)

Stack ports

Any QSFP+ ports

RTC

Supported

RPS

Not supported

PoE

Not supported

Rated voltage range

·           AC input: 100 V     AC to 240 V AC,50/60 Hz

·           High-Voltage DC input: 240 V DC

·           DC input: -48 V DC to -60 V DC

Maximum voltage range

·           AC input: 90 V   AC to 290 V AC, 45 Hz to 65 Hz

·           High-Voltage DC   input: 190 V DC to 290 V DC

·           DC input: -38.4   V DC to -72 V DC

Maximum power consumption

(100% throughput, full speed   of fans)

229 W

Typical power consumption

(30%  of traffic load , tested according  to

ATIS standard)

     126 W

Operating temperature

-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m

(0-5906 ft.)

NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.),the highest

operating temperature reduces by 1°C (1.8°F) every time the

altitude increases by 220 m (722 ft.).

The switch cannot   be started when the ambient temperature is

lower than 0°C   (32°F).

The operating temperature of the switch is -5°C to   40°C

(23°F to 104°F) when it uses QSFP-100G-ER4 optical   module.

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature

(27°C, sound power)

< 65 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification

·           EMC certification

·           Safety certification

·           Manufacturing certification

Part number

02353AJS

02353AJS-001

02353AJS-003

02353AJS-004

3

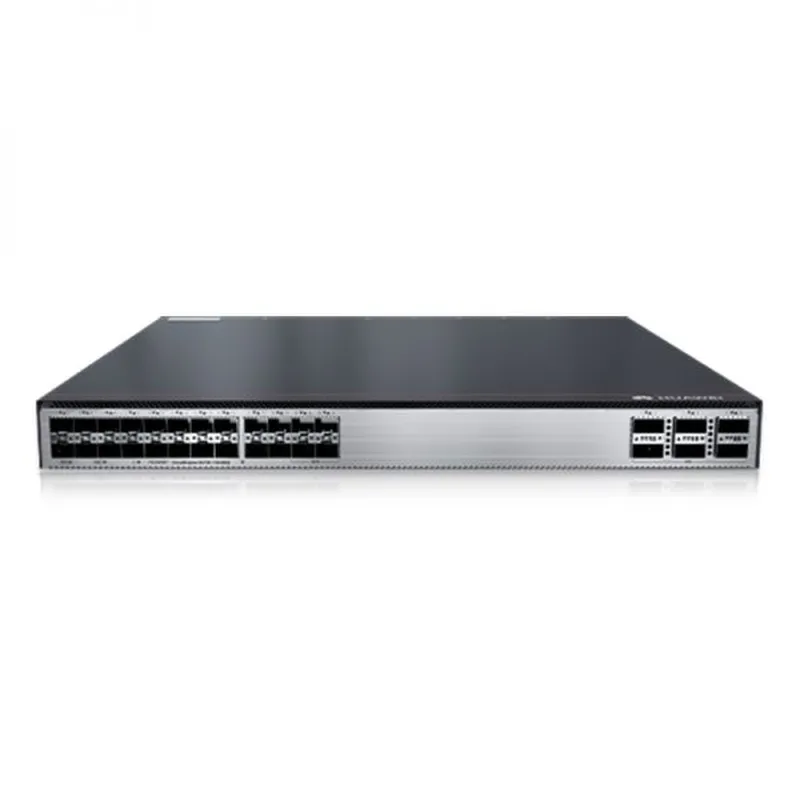

Six 40GE/100GE QSFP+ optical ports

Applicable   modules and cables:

·       QSFP+ optical     module

·          1 m, 3 m, and   5 m QSFP+ to QSFP+

           high-speed copper cables

·          10 m QSFP+ to   QSFP+ AOC cable

·          QSFP28 optical   module

           (supported in V200R020C00 and

        later     versions, with a license loaded)

·         1 m QSFP28 to QSFP28

          high-speed copper cable

         (supported  in V200R020C00 and

          later versions,with   a license loaded)

·          10 m QSFP28 to  QSFP28 AOC cable

           (supported in

    V200R020C00 and   later  versions,

    with a license loaded)

·          2 m QSFP28  dedicated stack cable

        (supported   in

    V200R020C10 and   later  versions)

NOTE:

A QSFP+ optical port cannot be split into four

 10GE ports, regardless of whether the port

uses a QSFP28 or QSFP+optical module.

By default, a QSFP+ optical port is a 40GE port.

In V200R020C00 and later versions, a license

can be loaded to increase the port rate to 100

Gbit/s.   After the license is activated, run the

assign port-type 100GE command and restart

 the switch to configure the port as a 100GE port.

4

Ground screw

NOTE:

It is used with  a ground cable.

5

SSD card slot

NOTE:

This slot is reserved for future use.

6

One console port

7

One ETH     management port

8

One USB port

9

One PNP button

NOTICE:

To restore the factory settings and reset the switch,

hold down the button for at least 6 seconds.

To reset the switch, press the button.

Resetting the switch will cause service interruption.

Exercise caution when you press the PNP button.

10

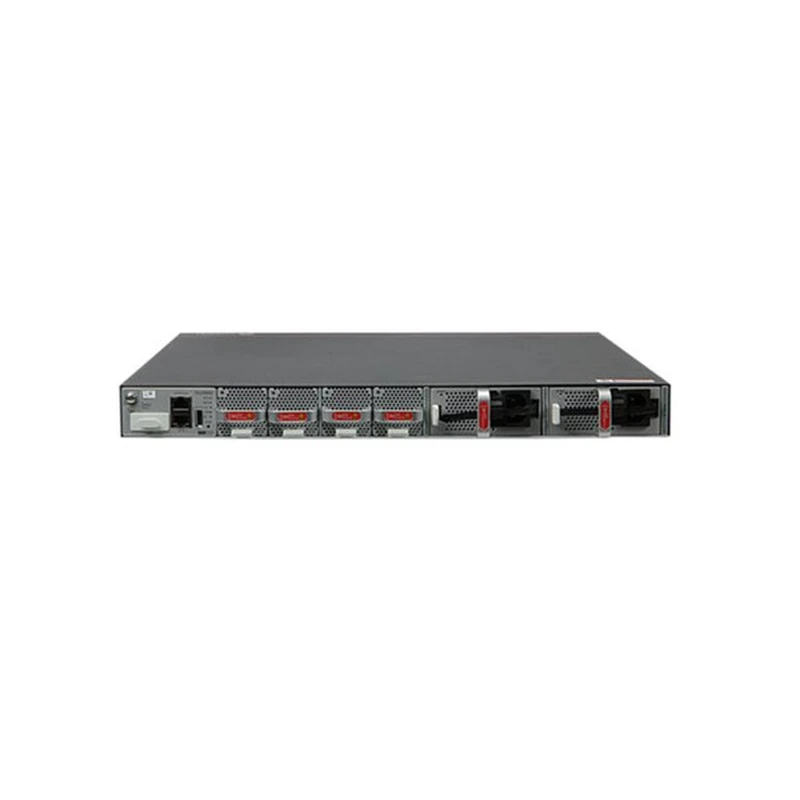

Fan module slot   1

NOTE:

Applicable fan   module:

FAN-031A-B

(Fan box(B,FAN   panel   side exhaust))

11

Fan module slot     2

NOTE:

Applicable fan module:

FAN-031A-B

(Fan box(B,FAN panel   side exhaust))

12

Fan module slot   3

NOTE:

Applicable fan   module:

FAN-031A-B

(Fan box(B,FAN   panel   side exhaust))

13

Fan module slot   4

NOTE:

Applicable fan   module:

FAN-031A-B

(Fan box(B,FAN panel side exhaust))

14

Power module   slot 1

NOTE:

Applicable power   module:

·       PAC600S12-CB

       (600 W   AC Power Module)

·      PAC600S12-EB

       (600 W     AC Power Module)

·       PAC600S12-DB

       (600 W   AC Power Module)

           (applicable in V200R020C10

            and later versions)

·       PDC1000S12-DB

       (1000 W DC Power Module)

15

Power module     slot 2

NOTE:

Applicable     power module:

·         PAC600S12-CB   (600 W AC Power Module)

·         PAC600S12-EB   (600 W   AC Power Module)

·         PAC600S12-DB   (600 W   AC Power Module)

         (applicable   in V200R020C10 and later versions)

·         PDC1000S12-DB   (1000 W DC Power Module)

PAC600S12-CB

600W AC Power Module(Back to Front, Power panel side exhaust)

eSFP-GE-SX-MM850

Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC)

SFP-GE-LX-SM1310

Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC)

S-SFP-GE-LH80-SM1550

Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,80km,LC)

SFP-GE-ZBXU1

Optical Transceiver,eSFP,GE,BiDi Single-mode   Module

(1490nm(Tx)/1570nm(Rx),80km,LC)

SFP-GE-LX-SM1490-BIDI

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,10km,LC)

eSFP-GE-ZX100-SM1550

Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,100km,LC)

SFP-GE-ZBXD1

Optical Transceiver,eSFP,GE,BIDI Single-mode Module

(1570nm(Tx)/1490nm(Rx),80km,LC)

LE2MGSC40DE0

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC)

LE2MGSC40DE0

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,40km,LC)

SFP-GE-LX-SM1310-BIDI

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC)

SFP-GE-BXU1-SC

1000Base,BIDI Optical Transceiver,SFP,GE,Single-mode   Module

(TX1490nm/RX1310nm,10km,SC)
