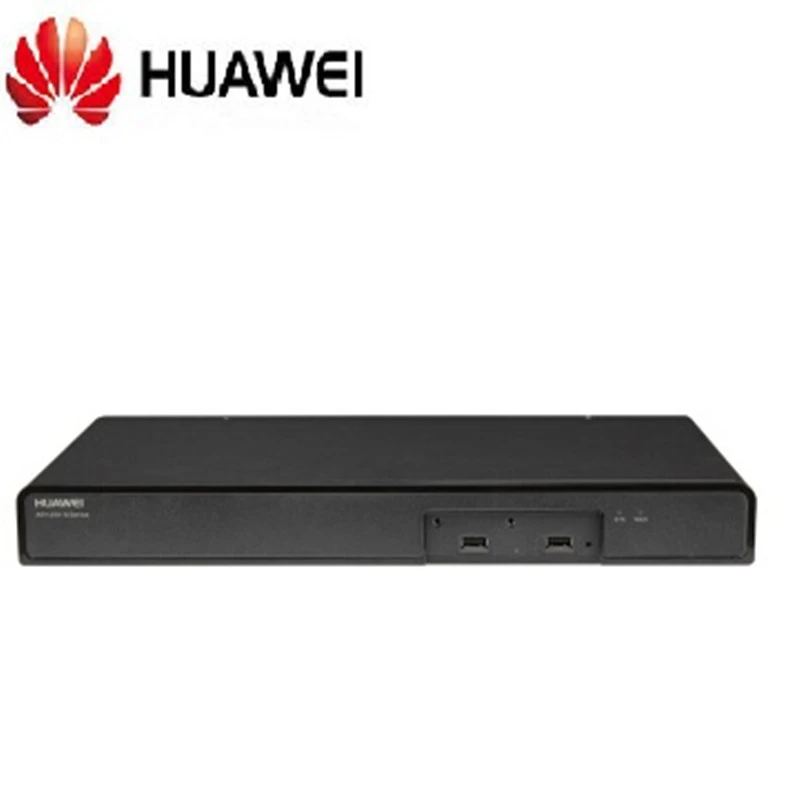

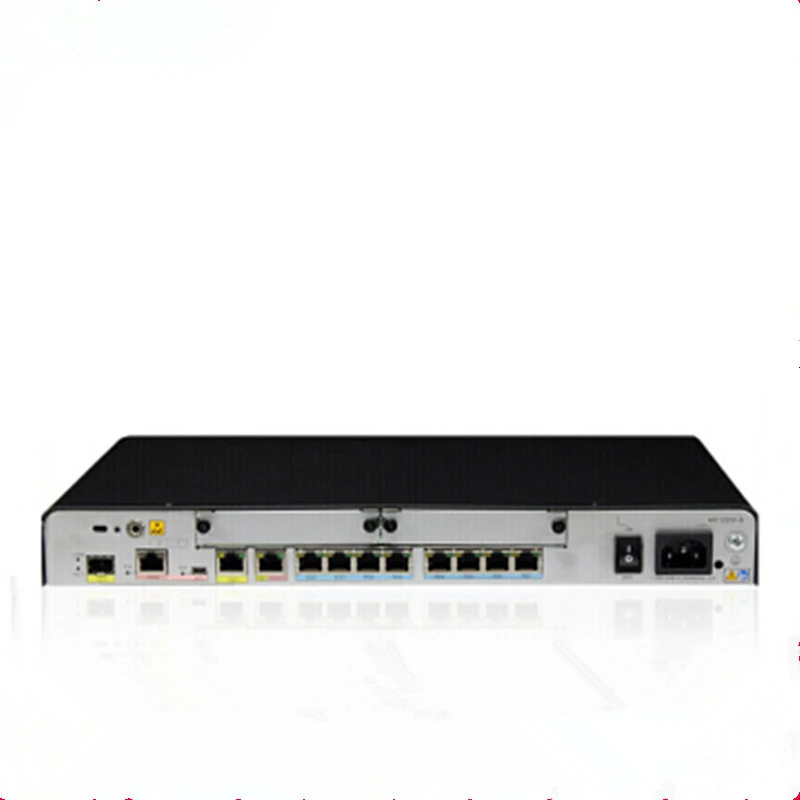

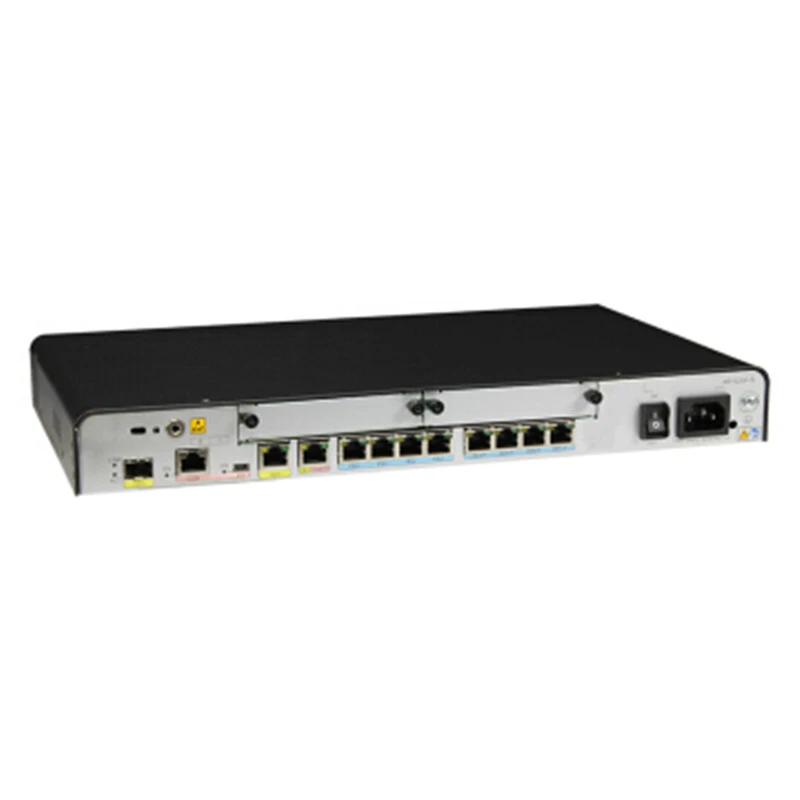

Huawei Next Generation AR1200 Series Router AR1220F-S

AR1220F-S Overview

Huawei AR G3 AR1220 Series router AR1220F-S is targeted for small enterprise

or remote office environment and integrates 1 GE 10/100/1000 WAN, 1 GE

COMBO (Rj-45 or SFP),8 Fast Ethernet 10/100 LAN ports,2 USB,2 SIC, wireless

controller and up to 400Mbps system bandwidth.

AR1220F-S Specification
WAN speed with services	400 Mbit/s
Firewall Performance (large packet)	1,800 Mbit/s
Device Switching Capacity	8 Gbit/s
Slot Switching Bandwidth	SIC & WSIC slots: 2 Gbit/s
Number of Recommended Users	100
Fixed WAN Ports	2 x GE (1 * Combo)
Fixed LAN Ports	8 x GE (can be configured as WAN interfaces)
SIC Slots	2
WSIC Slots (default/max)	0/1
DSP Slots	-
Wi-Fi	-
USB 2.0 Ports	2
Mini-USB Ports	1
Serial Auxiliary/Console Port	1
Memory	512 MB
Flash	512 MB
Max. Power	60W
PoE Power	-
AC Power	100V to 240V
Frequency	50 Hz/60 Hz
DC power	-
Dimensions (H x W x D)	44.5 mm x 390 mm x 220 mm
Weight	12.45 kg
Ambient Temperature	0°C to 45°C
Relative Humidity	5% to 95% (non-condensing)

The Optical transceiver, Cards

Table 2 shows the recommended elements for the Huawei Router

AR1220F-S.

Model	Description
FE-SFP Optical Transceiver
SFP-FE-SX-MM1310	SFP,100M/155M,Multi-mode Module(1310nm,2km,LC)
eSFP-FE-LX-SM1310	eSFP,100M/155M,Single-mode Module(1310nm,15km,LC)
S-SFP-FE-LH40-SM1310	eSFP,FE,Single-mode Module(1310nm,40km,LC)
GE-SFP Optical Transceiver
SFP-1000BaseT	SFP,GE,Electrical Interface Module(100m,RJ45)
eSFP-GE-SX-MM850	eSFP,GE,Multi-mode Module(850nm,0.55km,LC)
SFP-GE-LX-SM1310	eSFP,GE,Single-mode Module(1310nm,10km,LC)
S-SFP-GE-LH40-SM1310	eSFP,GE,Single-mode Module(1310nm,40km,LC)
S-SFP-GE-LH40-SM1550	eSFP,GE,Single-mode Module(1550nm,40km,LC)
WAN interface card
AR-1E3T3M-W	1-Port Channelized / Unchannelized E3 / T3 WAN Interface Card
xDSL interface card
AR01SLV1XA	1-Port VDSL2 over POTS WAN Interface Module
