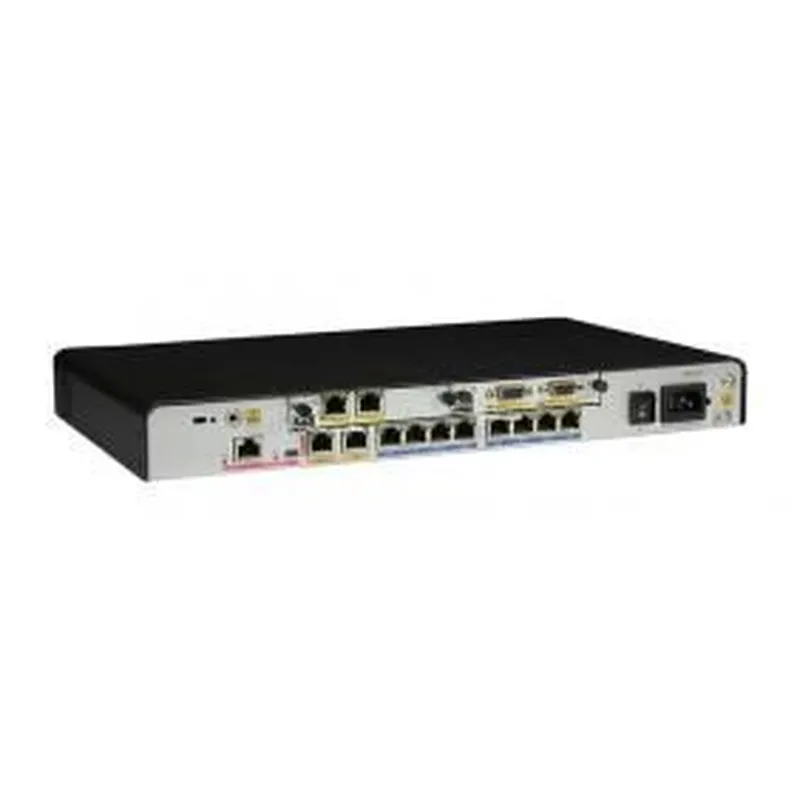

AR0M012SBA00 Overview
AR0M012SBA00 router for small enterprise or remote office
environment without voice support (non-upgradable).
AR0M012SBA00 Specification | |
Memory | 512 MB |
Flash | 256 MB |
Fixed port: | 8xFE(can be configured as WAN interfaces), 2xGE |
Extended slots | 2 SIC slots |
Power module type | Pluggable power module |
Weight | 2.9 kg (6.39 lb) |
Dimensions (W x D x H) | 44.5mm x 390 mm x 220 mm |
The Cards
Table 2 shows the recommended elements for the
AR0M012SBA00.
Model | Description |
Ethernet LAN interface card | |
4-Port 1000BASE-RJ45 L2 Ethernet Interface Card | |
8 Port 100M-RJ45 and 1 Port 1000M- RJ45 L2 Ethernet Interface Card | |
WAN interface card | |
1-Port Channelized / Unchannelized E3/T3 WAN Interface Card | |
xDSL interface card | |
1-Port VDSL2 over POTS WAN Interface Module | |
xPDN interface card | |
1-Port GPON/EPON Dual-mode Interface Card | |
