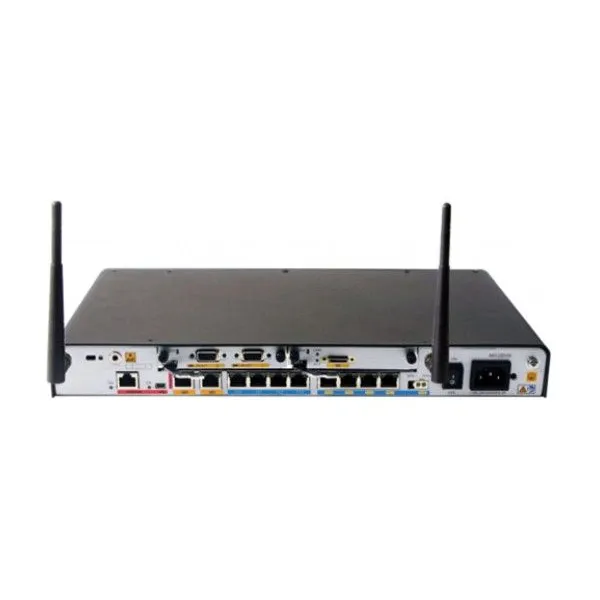

AR0M12VWBA00 Overview
Huawei AR0M12VWBA00 is the small office or small and medium enterprises
branch one router, providing both wired and wireless Internet access, access ,
PBX, integration of communication and security functions, widely deployed in
small campus network export, small and medium enterprises headquarters or
branch of the scene.
AR0M12VWBA00 Specification | |
WAN speed with services*** | 200 Mbit/s |
Firewall Performance (large packet) | 900 Mbit/s |
Device Switching Capacity | 8 Gbit/s |
Slot Switching Bandwidth | SIC & WSIC slots: 2 Gbit/s |
Number of Recommended Users | 100 |
Fixed WAN Ports | 2 x GE |
Fixed LAN Ports | 8 x FE (can be configured as WAN interfaces) |
SIC Slots | 2 |
WSIC Slots (default/max) | 0/1 |
DSP Slots | 32 channels supported by default |
Wi-Fi | 802.11 b/g/n |
USB 2.0 Ports | 2 |
Mini-USB Ports | 1 |
Serial Auxiliary/Console Port | 1 |
Memory | 512 MB |
Flash | 256 MB |
Max. Power | 60W |
PoE Power | External 100 W |
AC Power | 100V to 240V |
Frequency | 50 Hz/60 Hz |
DC power | - |
Dimensions (H x W x D) | 44.5 mm x 390 mm x 220 mm |
Ambient Temperature | 0°C to 45°C** |
Relative Humidity | 5% to 95% (non-condensing) |
Weight | 2.9 kg (without interface cards) |
The Optical transceiver, Cards
Table 2 shows the recommended elements for the Huawei Router
AR0M12VWBA00.
Model | Description |
Power Module | |
100 W AC PoE power module | |
Ethernet LAN interface card | |
4-Port 1000BASE-RJ45 L2 Ethernet Interface Card | |
8 Port 100M-RJ45 and 1 Port 1000M- RJ45 L2 Ethernet Interface Card | |
4-Port 1000BASE-SFP-L2 Ethernet Interface Card | |
8-Port 10/100BASE(RJ45) and 1-Port 10/100/1000BASE (RJ45)-L3 Ethernet Switch Interface Card | |
Voice service card | |
1-Port VE1 Interface card | |
4-Port FXO Voice Interface Card | |
16-Port FXS Voice Interface Card | |
WAN interface card | |
1-Port Channelized/Unchannelized E3/T3 WAN Interface Card | |
8-Port Fractional Channelized E1 WAN Interface Card | |
1-Port Sync/Async Serial Port Interface Card | |
xDSL interface card | |
1-Port VDSL2 over POTS WAN Interface Module | |
1-Port ADSL2+ ANNEX A/M WAN Interface Module | |
xPDN interface card | |
1-Port GPON/EPON Dual-mode Interface Card | |
