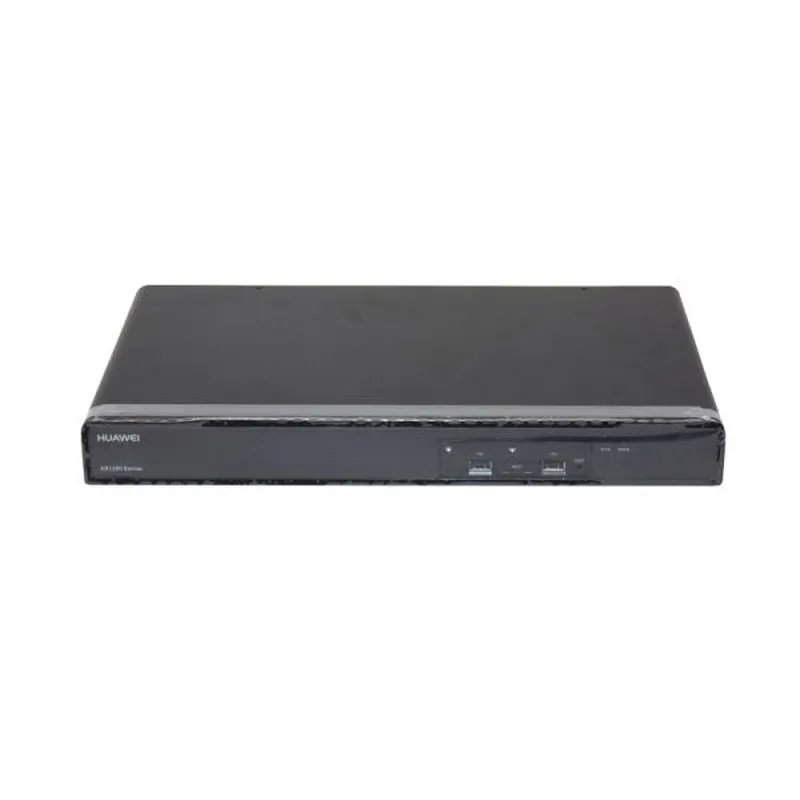

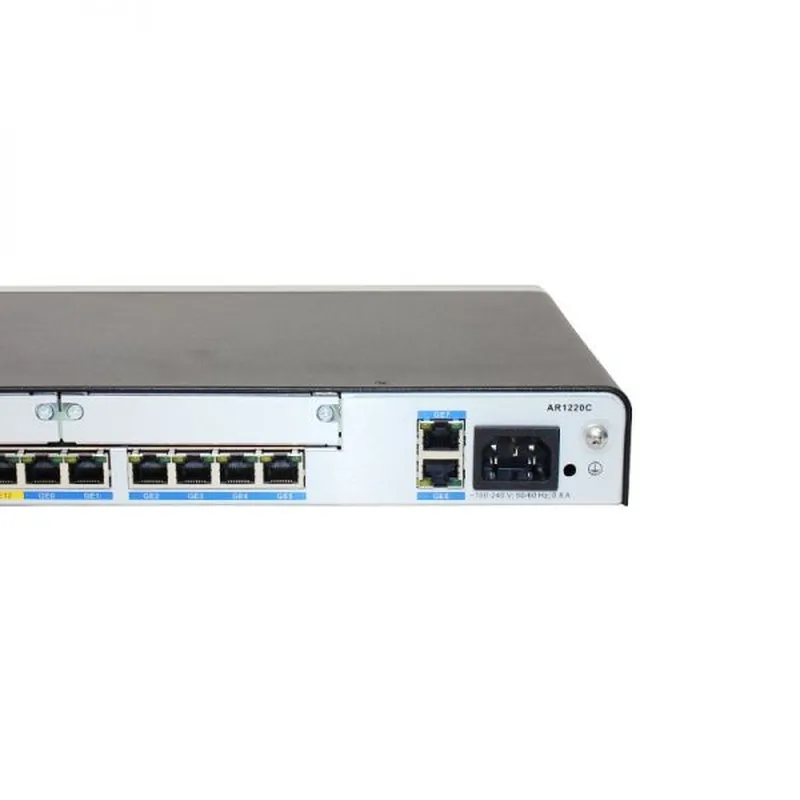

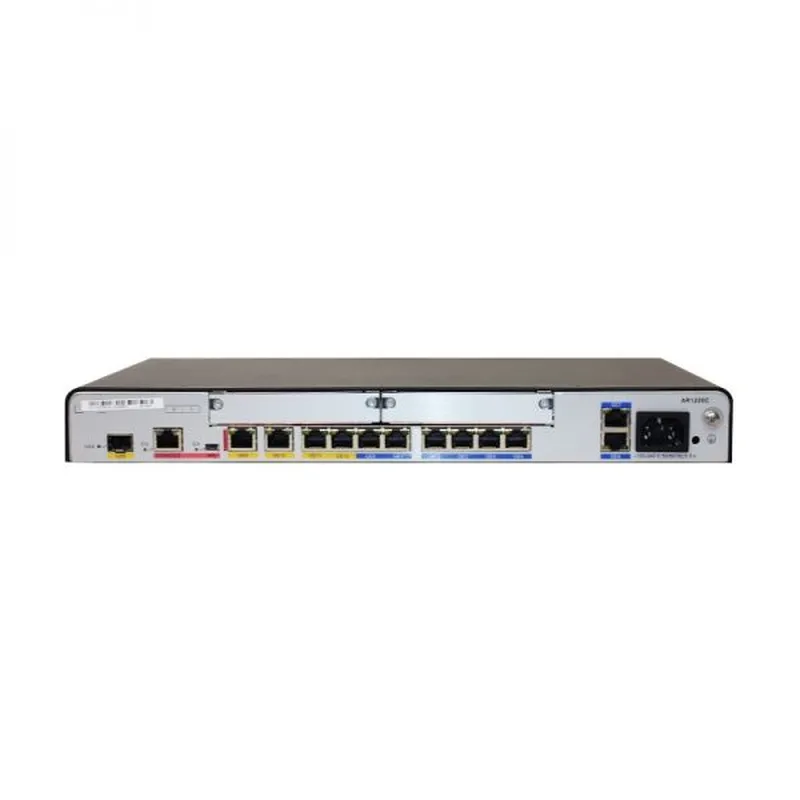

AR1220C Overview
Huawei AR1220C is the next generation enterprise-class router, the router
based on the Huawei proprietary Versatile Routing Platform which is built
on Huawei.
AR1220C Specification | |
WAN speed with services*** | 200 Mbit/s |
Firewall Performance (large packet) | 1,000 Mbit/s |
Device Switching Capacity | 8 Gbit/s |
Slot Switching Bandwidth | SIC & WSIC slots: 2 Gbit/s |
Number of Recommended Users | 100 |
Fixed WAN Ports | 4 x GE + 1 x GE SFP |
Fixed LAN Ports | 8 x GE (can be configured as WAN interfaces) |
SIC Slots | 2 |
WSIC Slots (default/max) | 0/1 |
DSP Slots | - |
Wi-Fi | - |
USB 2.0 Ports | 2 |
Mini-USB Ports | 1 |
Serial Auxiliary/Console Port | 1 |
Memory | 512 MB |
Flash | 512 MB |
Max. Power | 25W |
PoE Power | - |
AC Power | 100V to 240V |
Frequency | 50 Hz/60 Hz |
DC power | - |
Dimensions (H x W x D) | 44.5 mm x 390 mm x 220 mm |
Ambient Temperature | 0°C to 45°C** |
Relative Humidity | 5% to 95% (non-condensing) |
Basic Features | DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and Sub interface management |
Voice | RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, and SBC (only voice models support voice features) |
WLAN (AP) | AP management, WLAN QoS (WMM), WLAN security (WEP/WPA/WPA2/key management), WLAN radio management (802.11b/g/n), and WLAN user management (only WLAN models support WLAN AP features) |
WLAN (AC) | AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management) |
3G | 3G Interface card (WCDMA) |
LTE | LTE Interface card (FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s) |
LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP |
IPv4 Unicast Routing | Routing policy, static route, RIP, OSPF, IS-IS, and BGP |
IPv6 Unicast Routing | Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+ |
Multicast | IGMPv1/v2/v3, PIM SM, PIM DM, and MSDP |
MPLS | LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR |
VPN | IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, Smart VPN |
QoS | DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), Hierarchical QoS, WLAN QoS, FR QoS, and Smart Application Control (SAC) |
Security | ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, and IP source tracing |
Management and maintenance | Upgrade management, device management, web-based GUI, GTL, SNMPv1/v2c/v3, NTP, CWMP, Auto-Config, deployment using USB disk, and CLI |
The Optical transceiver, Cards
Table 2 shows the recommended elements for the Huawei Router AR1220C.
Model | Description |
FE-SFP Optical Transceiver | |
SFP,100M/155M,Multi-mode Module(1310nm,2km,LC) | |
eSFP,100M/155M,Single-mode Module(1310nm,15km,LC) | |
eSFP,FE,Single-mode Module(1310nm,40km,LC) | |
GE-SFP Optical Transceiver | |
SFP,GE,Electrical Interface Module(100m,RJ45) | |
eSFP,GE,Multi-mode Module(850nm,0.55km,LC) | |
eSFP,GE,Single-mode Module(1310nm,10km,LC) | |
eSFP,GE,Single-mode Module(1310nm,40km,LC) | |
eSFP,GE,Single-mode Module(1550nm,40km,LC) | |
WAN interface card | |
1-Port Channelized / Unchannelized E3 / T3 WAN Interface Card | |
xDSL interface card | |
1-Port VDSL2 over POTS WAN Interface Module | |
