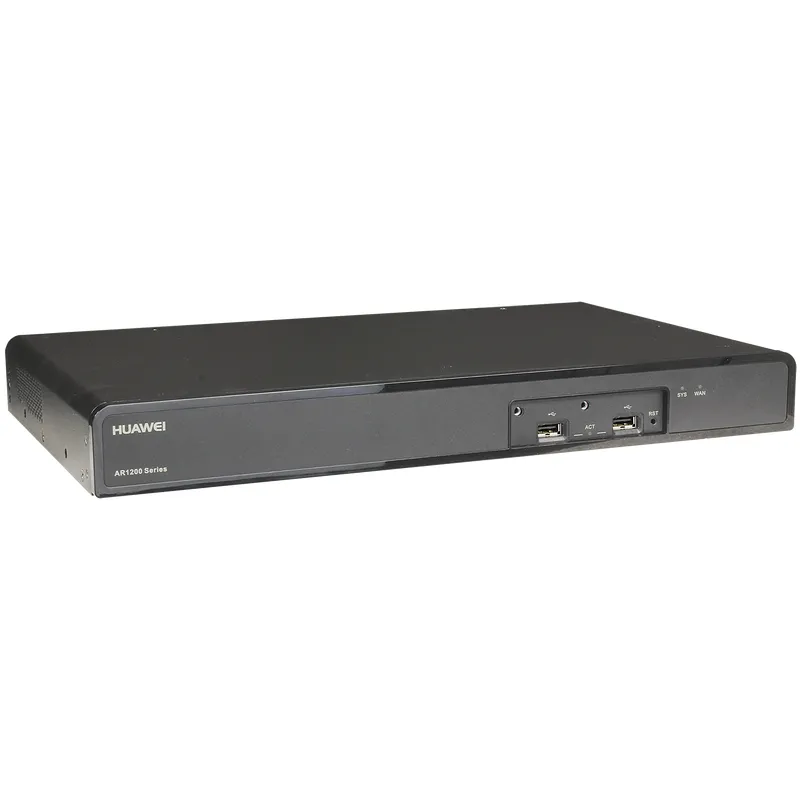

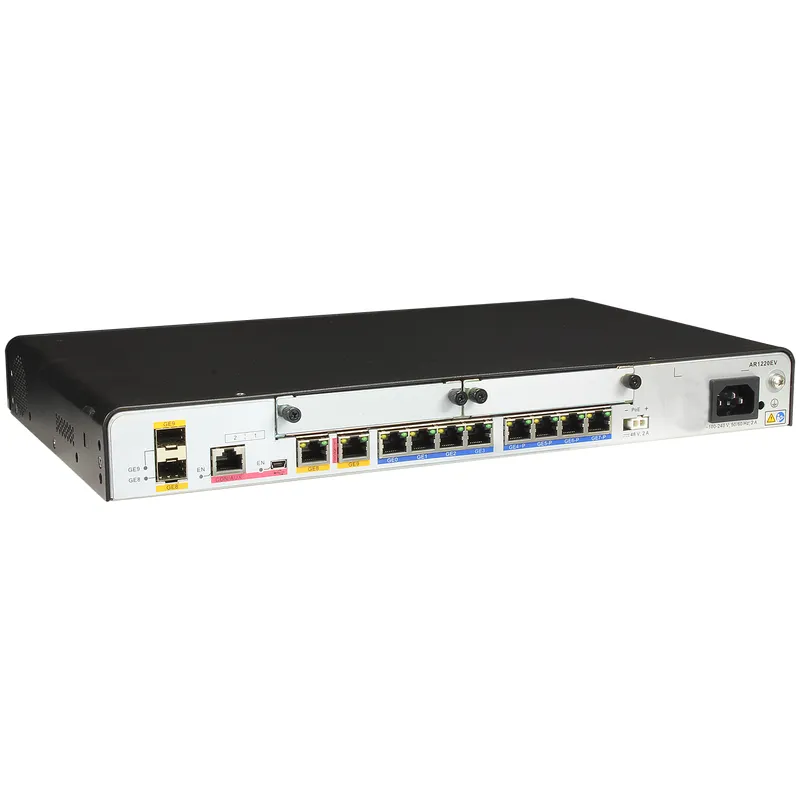

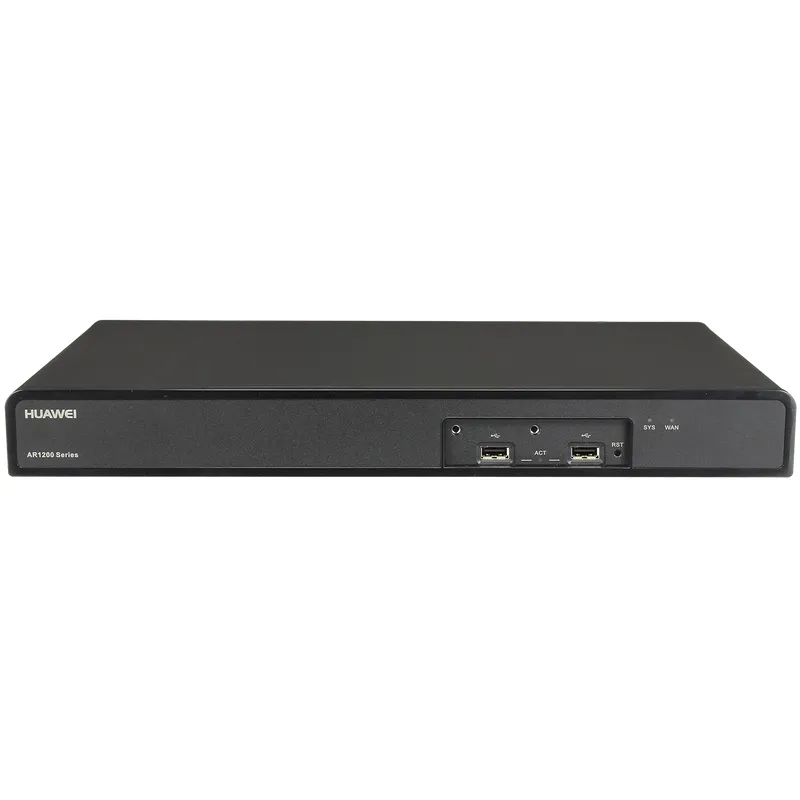

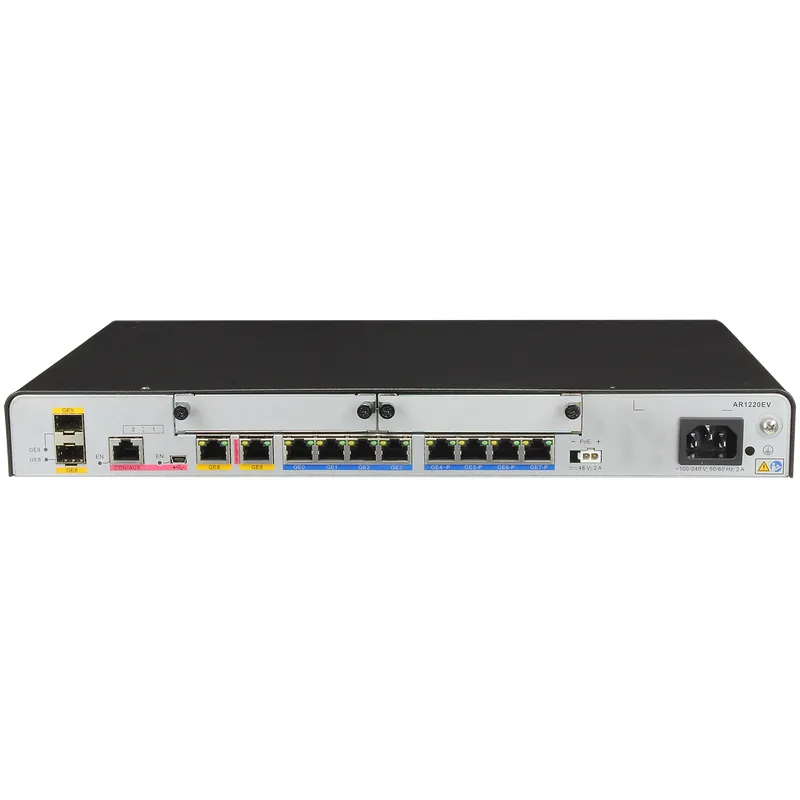

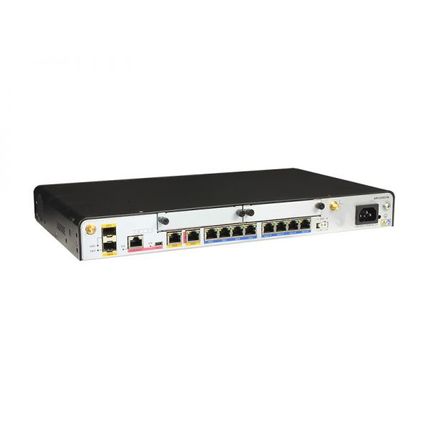

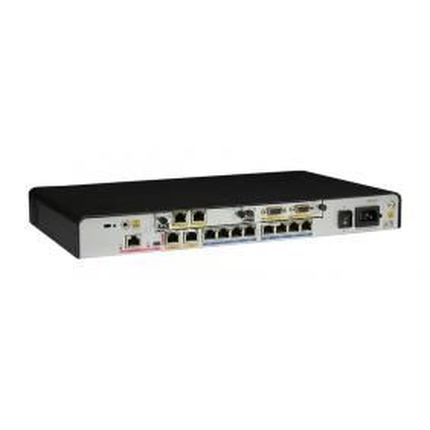

Huawei AR1200 Series Router AR1220EV

AR1220EV Overview

Huawei AR G3 AR1220 Series router voice bundle AR1220EV provides

comprehensive solution for small enterprise or branch offices for voice,

wireless controller as well as security.

AR1220EV Specification
WAN speed with services	400 Mbit/s
Firewall Performance (large packet)	1,800 Mbit/s
Device Switching Capacity	8 Gbit/s
Slot Switching Bandwidth	SIC & WSIC slots: 2 Gbit/s
Number of Recommended Users	100
Fixed WAN Ports	2 x GE Combo
Fixed LAN Ports	8 x GE (can be configured as WAN interfaces)
SIC Slots	2
WSIC Slots (default/max)	0/1
DSP Slots	32 channels supported by default
Wi-Fi	-
USB 2.0 Ports	2
Mini-USB Ports	1
Serial Auxiliary/Console Port	1
Memory	1 GB
Flash	512 MB
Max. Power	60W
PoE Power	-
AC Power	100V to 240V
Frequency	50 Hz/60 Hz
DC power	-
Dimensions (H x W x D)	44.5 mm x 390 mm x 220 mm
Weight	12.42 kg
Ambient Temperature	0°C to 45°C
Relative Humidity	5% to 95% (non-condensing)

The Optical transceiver, Cards

Table 2 shows the recommended elements for the Huawei Router

AR1220EV.

Model	Description
FE-SFP Optical Transceiver
SFP-FE-SX-MM1310	SFP,100M/155M,Multi-mode Module(1310nm,2km,LC)
eSFP-FE-LX-SM1310	eSFP,100M/155M,Single-mode Module(1310nm,15km,LC)
S-SFP-FE-LH40-SM1310	eSFP,FE,Single-mode Module(1310nm,40km,LC)
GE-SFP Optical Transceiver
SFP-1000BaseT	SFP,GE,Electrical Interface Module(100m,RJ45)
eSFP-GE-SX-MM850	eSFP,GE,Multi-mode Module(850nm,0.55km,LC)
SFP-GE-LX-SM1310	eSFP,GE,Single-mode Module(1310nm,10km,LC)
S-SFP-GE-LH40-SM1310	eSFP,GE,Single-mode Module(1310nm,40km,LC)
S-SFP-GE-LH40-SM1550	eSFP,GE,Single-mode Module(1550nm,40km,LC)
WAN interface card
AR-1E3T3M-W	1-Port Channelized / Unchannelized E3 / T3 WAN Interface Card
xDSL interface card
AR01SLV1XA	1-Port VDSL2 over POTS WAN Interface Module
