PDC180S12-CR (módulo de alimentação CC de 180 W)
Tabela 1 Informações básicas sobre o PDC180S12-CR
Item | Detalhes |
Descrição | Módulo de alimentação de 180 W DC |
Número da peça | 02312VRE |
Modelo | PDC180S12-CR |

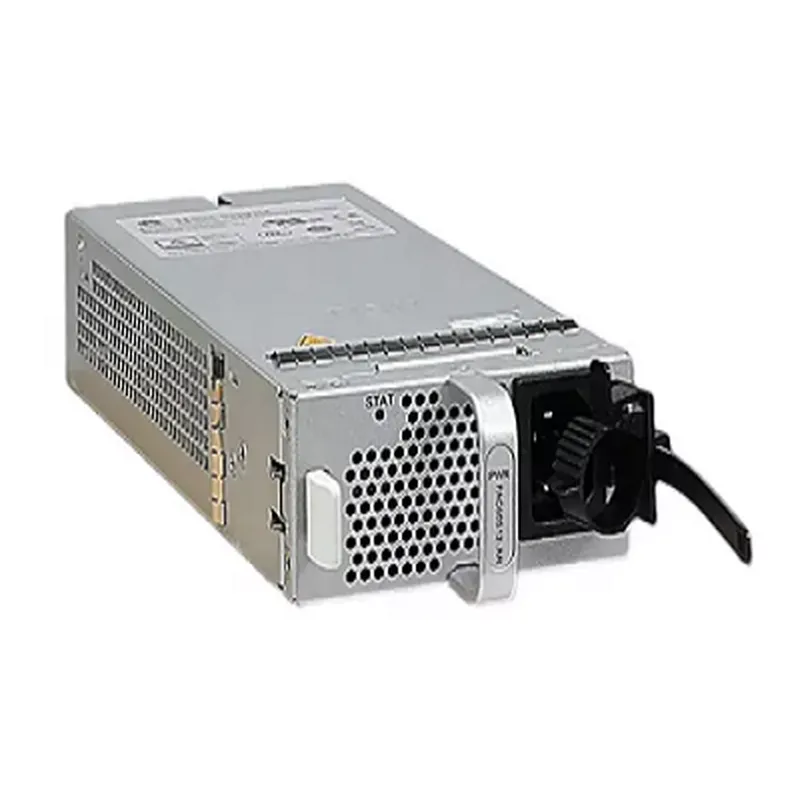

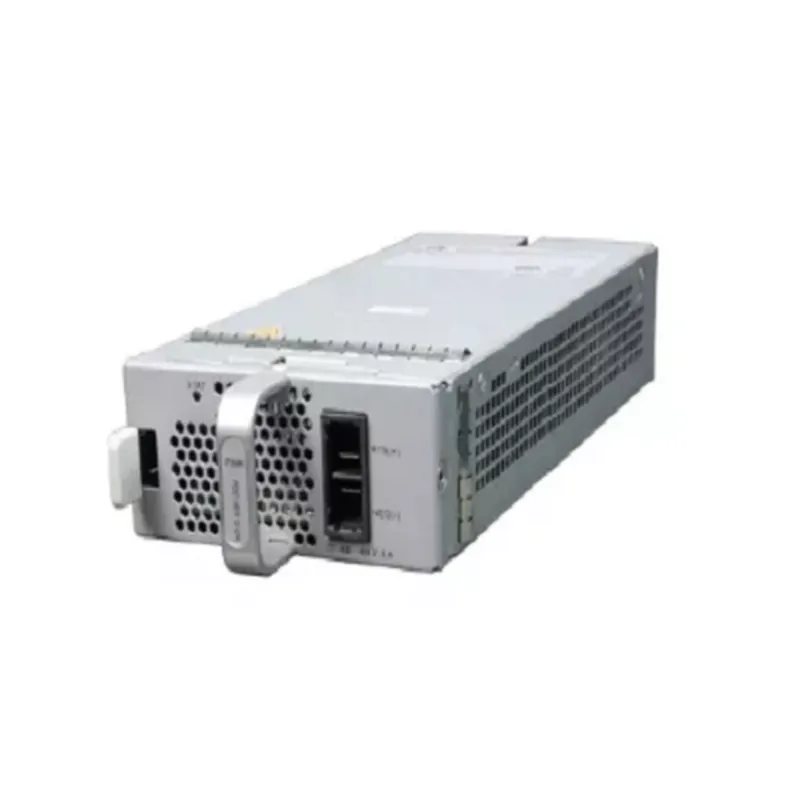

Figura 1 Aparência do PDC180S12-CR
Mapeamento de versão
Tabela 2 Mapeamentos entre PDC180S12-CR e modelos de produto
produtos | Modelo do produto | Primeira versão suportada |
S5731-S | S5731-S24T4X (02353AHU) | V200R020C00 |
S5731-S | S5731-S24T4X (02353AHU-001) | V200R020C10 |
S5731-S | S5731-S24T4X (02353AHU-003) | V200R021C10SPC600 |
S5731-S | S5731-S24T4X (98011851) | V200R021C10SPC600 |
S5731-S | S5731-S32ST4X (98011813) | V200R021C01 |
S5731-S | S5731-S32ST4X (98011813-002) | V200R021C10SPC600 |
S5731-S | S5731-S48S4X (98011805) | V200R021C01 |
S5731-S | S5731-S48S4X (98011805-001) | V200R021C10SPC600 |
S5731-S | S5731-S48T4X (02353AJB) | V200R020C00 |
S5731-S | S5731-S48T4X (02353AJB-003) | V200R020C10 |
S5731-S | S5731-S48T4X (02353AJB-005) | V200R021C10SPC600 |
S5731-S | S5731-S48T4X (98011847) | V200R021C10SPC600 |
S5731S-S | S5731S-S24T4X-A (02353AHV) | V200R020C00 |
S5731S-S | S5731S-S24T4X-A (02353AHV-001) | V200R020C10 |
S5731S-S | S5731S-S24T4X-A (02353AHV-003) | V200R020C10 |
S5731S-S | S5731S-S24T4X-A (98011852) | V200R021C10SPC600 |
S5731S-S | S5731S-S32ST4X-A (98011814) | V200R021C01 |
S5731S-S | S5731S-S32ST4X-A (98011814-001) | V200R021C10SPC600 |
S5731S-S | S5731S-S48S4X-A (98011806) | V200R021C01 |
S5731S-S | S5731S-S48S4X-A (98011806-001) | V200R021C10SPC600 |
S5731S-S | S5731S-S48T4X-A (02353AJC) | V200R020C00 |
S5731S-S | S5731S-S48T4X-A (02353AJC-003) | V200R020C10 |
S5731S-S | S5731S-S48T4X-A (02353AJC-005) | V200R021C10SPC600 |
S5731S-S | S5731S-S48T4X-A (98011848) | V200R021C10SPC600 |
S5731-H | S5731-H24T4XC (02352QPP) | V200R020C00 |
S5731-H | S5731-H24T4XC (02352QPP-001) | V200R020C10 |
S5731-H | S5731-H24T4XC (02352QPP-005) | V200R021C10SPC600 |
S5731-H | S5731-H48T4XC (02352QPT) | V200R020C00 |
S5731-H | S5731-H48T4XC (02352QPT-003) | V200R020C10 |
S5731-H | S5731-H48T4XC (02352QPT-007) | V200R021C10SPC600 |
S5731-H | S5731-H48T4XC-B (02353VAD) | V200R020C00 |
S5731-H | S5731-H48T4XC-B (02353VAD-003) | V200R020C10 |
S5731-H | S5731-H48T4XC-B (02353VAD-005) | V200R021C10SPC600 |
S5731S-H | S5731S-H24T4S-A (02353DJE) | V200R020C00 |
S5731S-H | S5731S-H24T4S-A (02353DJE-001) | V200R020C10 |
S5731S-H | S5731S-H24T4S-A (02353DJE-003) | V200R021C10SPC600 |
S5731S-H | S5731S-H24T4X-A (02353HVH) | V200R020C00 |
S5731S-H | S5731S-H24T4X-A (02353HVH-001) | V200R020C10 |
S5731S-H | S5731S-H24T4X-A (02353HVH-003) | V200R021C10SPC600 |
S5731S-H | S5731S-H24T4XC-A (02352YRG) | V200R020C00 |
S5731S-H | S5731S-H24T4XC-A (02352YRG-001) | V200R020C10 |
S5731S-H | S5731S-H24T4XC-A (02352YRG-003) | V200R021C10SPC600 |
S5731S-H | S5731S-H48T4S-A (02353DJG) | V200R020C00 |
S5731S-H | S5731S-H48T4S-A (02353DJG-003) | V200R020C10 |
S5731S-H | S5731S-H48T4S-A (02353DJG-005) | V200R021C10SPC600 |
S5731S-H | S5731S-H48T4X-A (02353HVJ) | V200R020C00 |
S5731S-H | S5731S-H48T4X-A (02353HVJ-003) | V200R020C10 |
S5731S-H | S5731S-H48T4X-A (02353HVJ-005) | V200R021C10SPC600 |
S5731S-H | S5731S-H48T4XC-A (02352YRF) | V200R020C00 |
S5731S-H | S5731S-H48T4XC-A (02352YRF-003) | V200R020C10 |
S5731S-H | S5731S-H48T4XC-A (02352YRF-005) | V200R021C10SPC600 |
S5735-S | S5735-S24T4X (98010938) | V200R020C00 |
S5735-S | S5735-S32ST4X (98010931) | V200R020C00 |
S5735-S | S5735-S48S4X (98010947) | V200R020C00 |
S5735-S | S5735-S48T4X (98010941) | V200R020C00 |
S5735S-S | S5735S-S24T4S-A (98010939) | V200R020C00 |
S5735S-S | S5735S-S24T4X-A (98010967) | V200R020C00 |
S5735S-S | S5735S-S32ST4X-A (98010932) | V200R020C00 |
S5735S-S | S5735S-S48T4S-A (98010942) | V200R020C00 |
S5735S-S | S5735S-S48T4X-A (98010968) | V200R020C00 |
S5735-SI | S5735-S24T4X-I (98010960) | V200R020C00 |
S5735S-H | S5735S-H24S4XC-A (98011041) | V200R021C01 |
S5735S-H | S5735S-H24T4XC-A (98011025) | V200R020C00 |
S5735S-H | S5735S-H48T4XC-A (98011029) | V200R020C00 |
S5736-S | S5736-S24S4XC (98011038) | V200R021C01 |
S5736-S | S5736-S48S4XC (98011042) | V200R021C01 |
Painel

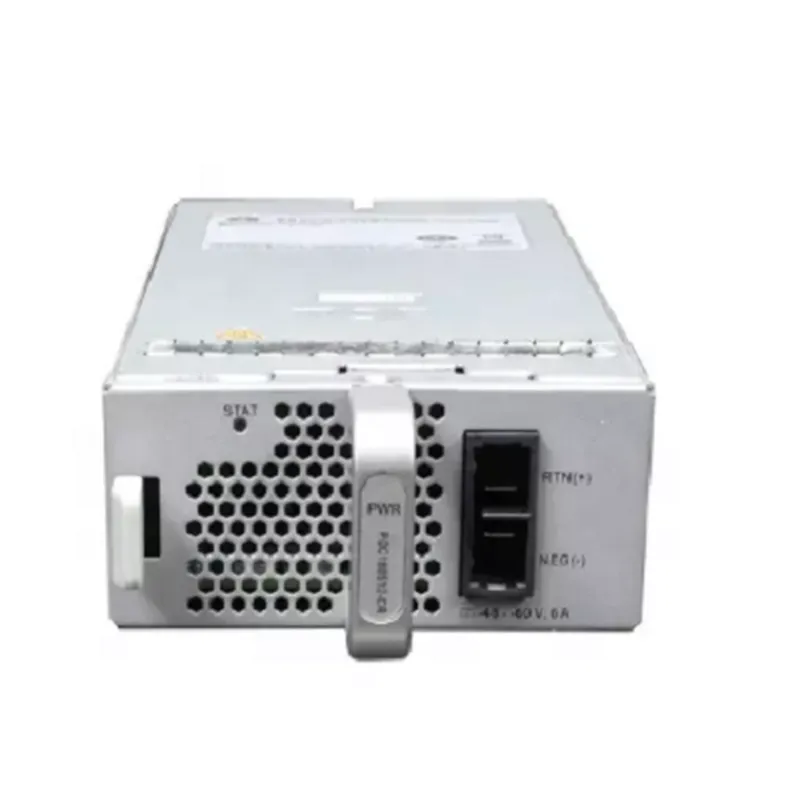

Figura 2 Painel do PDC180S12-CR
1. Bloquear | 2. Indicador | 3. Saída de ar | 4. Pega |
5. Soquete de alimentação DC | - |
NOTA :
Quando um módulo de energia entra no estado de proteção contra superaquecimento, tome medidas
para baixar a temperatura ambiente. O módulo de energia pode iniciar automaticamente
fornecer energia novamente quando a temperatura cair dentro da faixa normal.
Especificações técnicasTabela 3 Especificações técnicas do PDC180S12-CR
Item | Especificação |
Dimensões sem embalagem (A x L x P) [mm(pol.)] | 40 mm x 90 mm x 215 mm (1,6 pol. x 3,5 pol. x 8,5 pol.) |
Peso sem embalagem [kg(lb)] | 0,62 kg (1,37 lb) |
Número de entradas | 1 |
Tensão nominal de entrada [V] | -48 V CC a -60 V CC |
Faixa de tensão de entrada [V] | -38,4 V CC a -72 V CC |
Corrente máxima de entrada [A] | 6A |
Tensão nominal de saída [V] | 12 V |
Corrente nominal de saída [A] | 15A |
Potência nominal de saída [W] | 180 W |
Modo de dissipação de energia | Dissipação de calor natural sem ventiladores |
Hot swap | Suportado |
