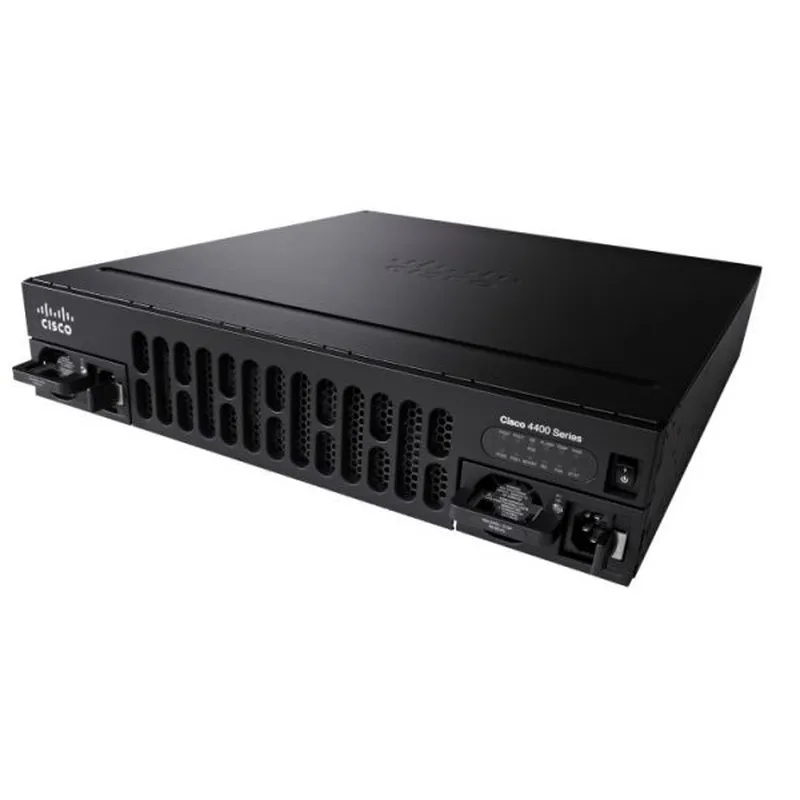

ISR4451-X-SEC/K9 Overview
ISR4451-X-SEC/K9 is the Cisco 4451 Integrated Services Router, with Security
license. It supports 2 Enhanced service-module (SM-X) slots, delivers 1 Gbps
to 2Gbps aggregate throughput. This router also supports two kinds of DDRM,
data plane and control/services plane, which make administrator easy to
manage the router.
ISR4451-X-SEC/K9 Specification | |
Description | Cisco ISR 4451 Sec bundle w/SEC license |
Aggregate Throughput | 1 Gbps to 2Gbps |
Total onboard WAN or LAN 10/100/1000 ports | 4 |
RJ-45-based ports | 4 |
SFP-based ports | 4 |
Enhanced service-module slots | 2 |
Doublewide service-module slots | 1 ( assumes no singlewide SM-X modules installed ) |
NIM slots | 3 |
OIR (all I/O modules) | Yes |
Onboard ISC slot | 1 |
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/ services/data planes) | NA |
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | NA |
Default memory DDR3 ECC DRAM (data plane) | 2 GB |
Maximum memory DDR3 ECC DRAM (data plane) | 2 GB |
Default memory DDR3 ECC DRAM (control/services plane) | 4 GB |
Maximum memory DDR3 ECC DRAM (control/services plane) | 16 GB |
Default flash memory | 8 GB |
Maximum flash memory | 32 GB |
External USB 2.0 slots (type A) | 2 |
USB console port -type B mini (up to 115.2 kbps) | 1 |
Serial console port - RJ45 (up to 115.2 kbps) | 1 |
Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
Power-supply options | Internal: AC, DC and PoE |
Redundant power supply | Internal: AC, DC and PoE |
AC input voltage | 100 to 240 VAC autoranging |
AC input frequency | 47 to 63 Hz |
AC input current range, AC power supply (maximum) | 7.1 to 3.0A |
AC input surge current | <50 A |
Typical power (no modules) (watts) | 158 |
Maximum power with AC power supply (watts) | 450 (no PoE) |
Maximum power with PoE power supply (platform only) (watts) | 1000 with PoE redundant 1450 with PoE boost no redundancy |
Maximum endpoint PoE power available from PoE power supply (watts) | 500 W with optional redundancy |
Maximum endpoint PoE power capacity with PoE boost (watts) | 950 W no redundancy |
The Modules, Cards, Licenses & Accessories
Table 2 shows some recommended modules, cards, licenses and several cables.
Items | Models | Descriptions |
Console and Auxillary Cables | Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M | |
Cisco Router Cable CAB-ETH-S-RJ45 | ||
Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F | ||
Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B | ||
Licenses | FL-44-PERF-K9 | Increases the performance from base performance 1 Gbps to 2 Gbps |
L-SL-44-APP-K9= | Cisco ISR 4431/4451 AppX license L-SL-44-APP-K9= with WAAS/vWAAS 1300/2500 conns RTU | |
Network Interface Modules | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | |
Cisco Multiflex Trunk Voice and WAN network interface module | ||
Analog voice network interface card (ear and mouth) | ||
Cisco Analog voice network interface card NIM-2FXS | ||
Cisco Analog voice network interface card NIM-2FXS/4FXO | ||
Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | ||
Gigabit Ethernet WAN Modules | NIM-1GE-CU-SFP | Cisco 1-Port Gigabit Ethernet WAN Network Interface Module |
| NIM-2GE-CU-SFP | Cisco 2-Port Gigabit Ethernet WAN Network Interface Module | |
| SM-X-6X1G | Cisco 6-Port High-Density Gigabit Ethernet WAN Service Module | |
| SM-X-4X1G-1X10G | Cisco 4-Port High-Density Gigabit or 1-Port 1 0Gigabit Ethernet WAN Service Module | |
Gigabit Ethernet LAN Switch Network Interface Modules | NIM-ES2-4 | 4-port Layer 2 Gigabit Ethernet LAN Switch NIM |
| NIM-ES2-8 | 8-port Layer 2 Gigabit Ethernet LAN Switch NIM | |
| NIM-ES2-8-P | 8-port PoE/PoE+ Layer 2 Gigabit Ethernet LAN Switch NIM | |
SFPs for On-Board GE Ports | Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM | |
Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM | ||
Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
