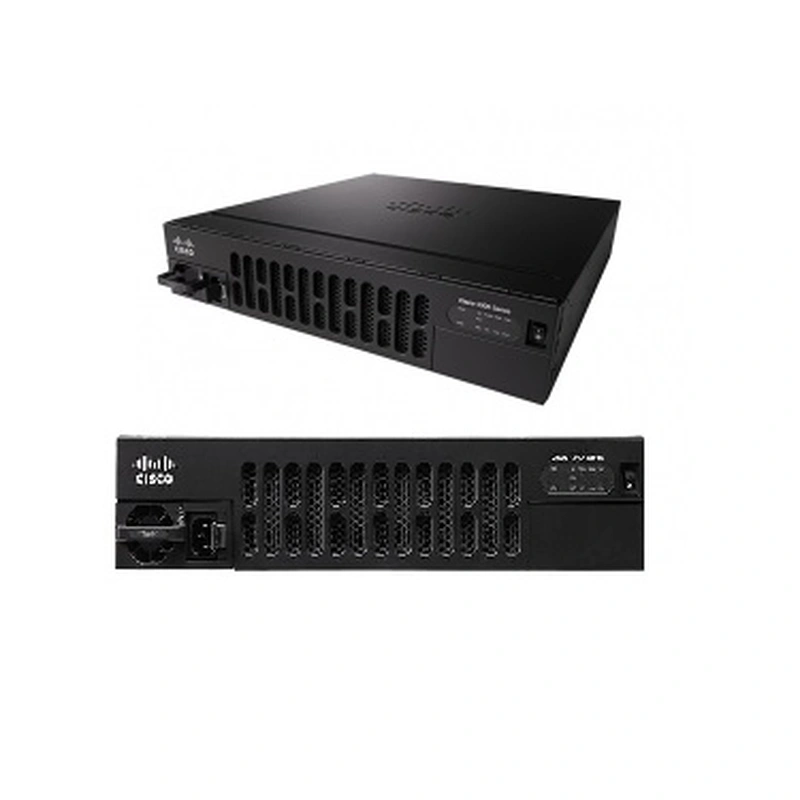

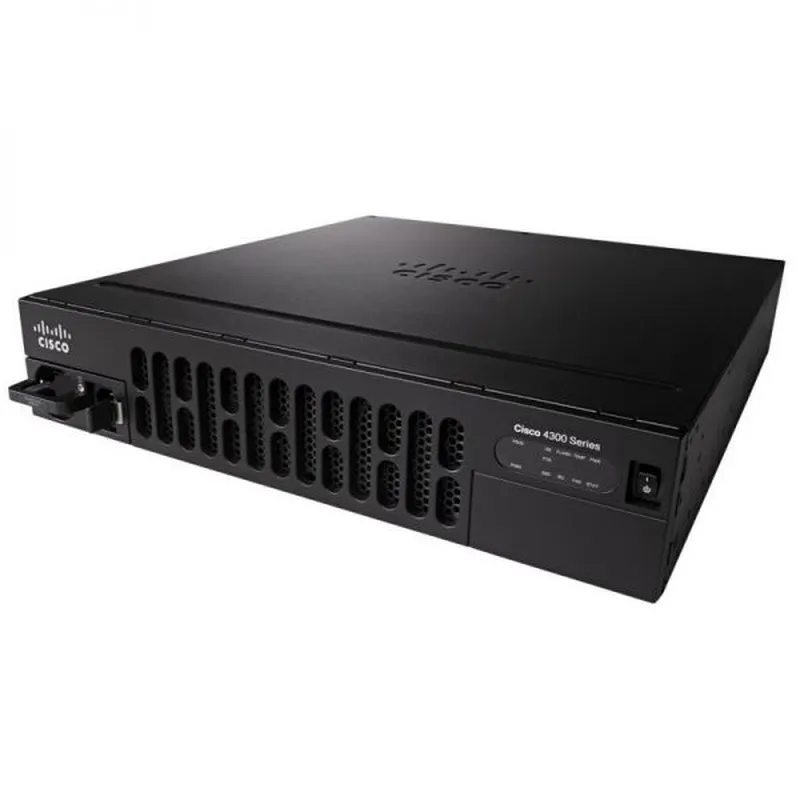

ISR4351-AXV/K9 Overview
Cisco 4351 Integrated Services Router, which supports 3 Network Interface
Modules (NIM) slots, delivers 200 Mbps to 400 Mbps aggregate throughput.
ISR4351-AXV/K9 is the Cisco ISR 4351 router with AXV Bundle.
PVDM4-64 w/APP.SEC.UC lic.CUBE-25.
ISR4351-AXV/K9 Specification | |
Description | Cisco ISR 4351 AXV Bundle . PVDM4-64 w/APP .SEC . UC lic.CUBE-25 |
Aggregate Throughput | 200 Mbps to 400 Mbps |
Total onboard WAN or LAN 10/100/1000 ports | 3 |
RJ-45-based ports | 3 |
SFP-based ports | 3 |
Enhanced service-module slots | 2 |
Doublewide service-module slots | 1 (assumes no singlewide SM-X modules installed) |
NIM slots | 3 |
OIR (all I/O modules) | Yes |
Onboard ISC slot | 1 |
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/ services/data planes) | 4 GB |
Maximum memory DDR3 ECC DRAM (Combined control/ services/data planes) | 16 GB |
Default memory DDR3 ECC DRAM (data plane) | NA |
Maximum memory DDR3 ECC DRAM (data plane) | NA |
Default memory DDR3 ECC DRAM (control/services plane) | NA |
Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
Default flash memory | 4 GB |
Maximum flash memory | 16 GB |
External USB 2.0 slots (type A) | 2 |
USB console port -type B mini (up to 115.2 kbps) | 1 |
Serial console port - RJ45 (up to 115.2 kbps) | 1 |
Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
Power-supply options | Internal: AC, DC, and PoE |
Redundant power supply | N/A |
AC input voltage | 100 to 240 VAC autoranging |
AC input frequency | 47 to 63 Hz |
AC input current range, AC power supply (maximum) | 7.1 to 3.0A |
AC input surge current | 60 A peak and less than 12 Arms per half cycle |
Typical power (no modules) (watts) | 48 |
Maximum power with AC power supply (watts) | 430 |
Maximum power with PoE power supply (platform only) (watts) | 990 |
Maximum endpoint PoE power available from PoE power supply (watts) | 500 |
The Modules, Cards, Licenses & Accessories
Table 2 shows some recommended modules, cards, licenses and several cables.
Items | Models | Descriptions |
Console and Auxillary Cables | Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M | |
Cisco Router Cable CAB-ETH-S-RJ45 | ||
Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F | ||
Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B | ||
Licenses | L-SL-4350-APP-K9= | Cisco AppX license L-SL-4350-APP-K9= with 1300 conns/ISRWAAS or vWAAS for ISR4351 |
Network Interface Modules | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | |
Cisco Multiflex Trunk Voice and WAN network interface module | ||
Analog voice network interface card (ear and mouth) | ||
Cisco Analog voice network interface card NIM-2FXS | ||
Cisco Analog voice network interface card NIM-2FXS/4FXO | ||
Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | ||
SFPs for On-Board GE Ports | Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM | |
Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM | ||
Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
